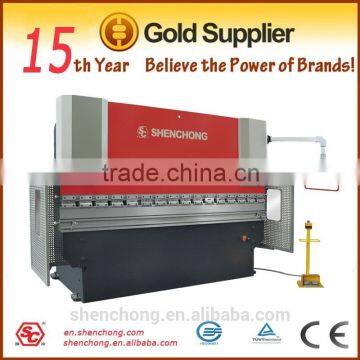

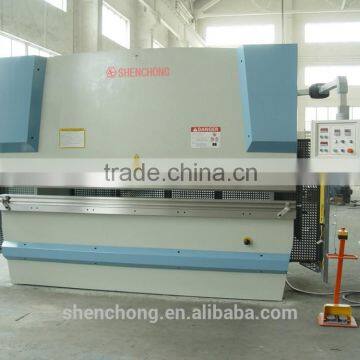

Hydraulic Bending and Folding machine WC67Y-125/3200
ADVANCED TECHNOLOGY AND PROCEDURES
The machine is a kind of steel torsion bar synchro brake, which is the third generation of brake. E20 control the back gauge and ram stroke. Hydraulic power cell construction is convenient to install, which limit the oil route and connector quantity to minimize integrated hydraulic valve block. Block route and wide range of speed control, work steadily.
Technical parameter
NOMINAL PRESSURE:1250KN
WORKING TABLE LENGTH: 3200MM
DISTANCE BETWEEN THE STANDING POSTS: 2600MM
THROAD DEPTH: 320MM
MAX. OPEN HEIGHT BETWEEN THE WORKING TABLE AND THE SLIDE:355MM
RAM STROKE (SLIDE STROKE): 100MM
MAIN MOTOR POWER: 7.5KW

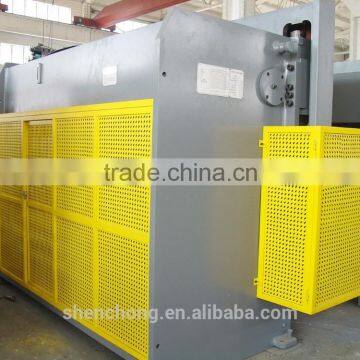

Detailed Images
1. Double joint box convenient operation;

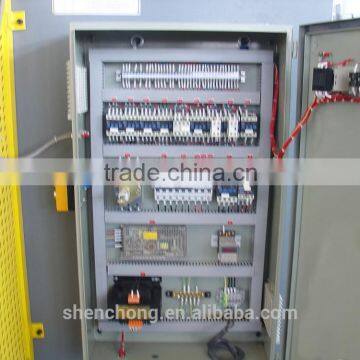

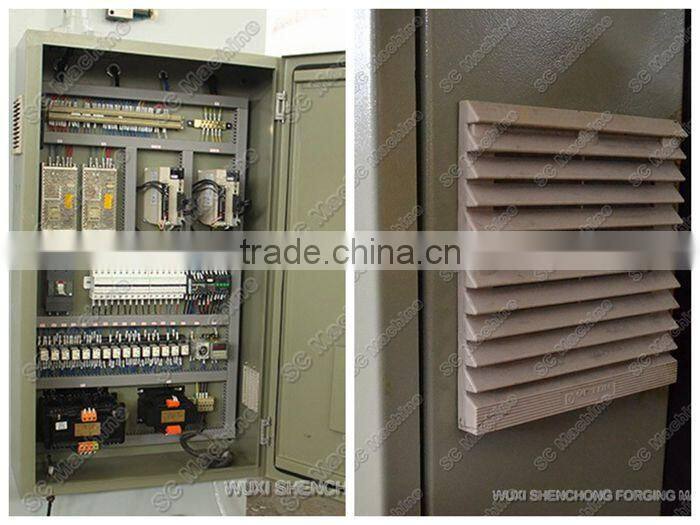

2. Considerate design for theElectricalcabinet: Dust proof, heat radiating;
3. Forcing-torsion shaft maintains the synchronization of both cylinders with high precision;

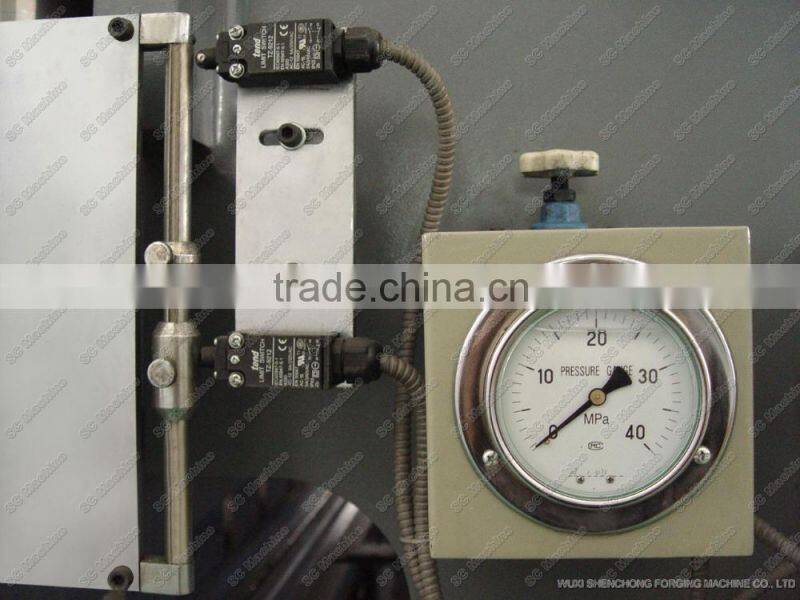

4.It is convenient to adjust the pressure of the system;

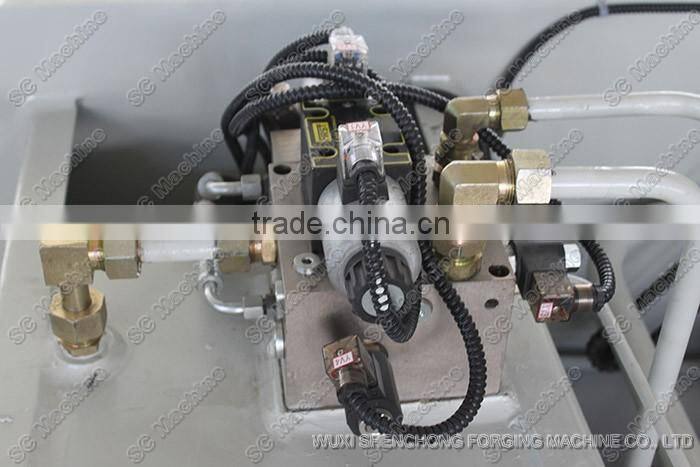

5. Imported FIRST VALVE BLOCK make sure of steady hydraulic system;
6.otherdetails.
hydraulic bending and folding machine
|
Model | Nominal Pressure (kn) | Length of table (mm) | Distance Between Housing (mm) | Throat Depth (mm) | Stroke (mm) | Open Hight (mm) | Main Motor (kw) | Dimensions (mm) | Weight (t) |
40/2000 | 400 | 2000 | 1600 | 200 | 110 | 335 | 4 | 2545×1510×2050 | 3 |
40/2500 | 400 | 2500 | 2000 | 200 | 110 | 335 | 4 | 2950×1510×2080 | 3.5 |
63/2000 | 630 | 2000 | 1600 | 250 | 110 | 350 | 5.5 | 2555×1600×2130 | 3.8 |
63/2500 | 630 | 2500 | 2000 | 250 | 110 | 350 | 5.5 | 2960×1600×2180 | 4.2 |
63/3200 | 630 | 3200 | 2600 | 250 | 110 | 350 | 5.5 | 3740×1600×2230 | 5.2 |
100/2500 | 1000 | 2500 | 2000 | 350 | 150 | 400 | 7.5 | 2980×1650×2330 | 6.3 |
100/3200 | 1000 | 3200 | 2600 | 350 | 150 | 400 | 7.5 | 3740×1650×2355 | 7 |
100/4000 | 1000 | 4000 | 3200 | 350 | 150 | 400 | 7.5 | 4550×1650×2450 | 8.8 |
100/5000 | 1000 | 5000 | 4000 | 350 | 150 | 400 | 7.5 | 5100×1500×2650 | 11.8 |
125/2500 | 1250 | 2500 | 2000 | 350 | 150 | 410 | 7.5 | 3980×1650×2370 | 7.5 |
125/3200 | 1250 | 3200 | 2600 | 350 | 150 | 410 | 7.5 | 3750×1650×2450 | 8.2 |
125/4000 | 1250 | 4000 | 3200 | 350 | 150 | 410 | 7.5 | 4550×1650×2470 | 9 |
125/5000 | 1250 | 5000 | 4000 | 350 | 150 | 410 | 7.5 | 5100×1500×2795 | 11.5 |
125/6000 | 1250 | 6000 | 4500 | 350 | 150 | 410 | 7.5 | 6100×1500×2895 | 14 |
160/2500 | 1600 | 2500 | 2000 | 350 | 150 | 425 | 11 | 2980×1715×2410 | 8.5 |
160/3200 | 1600 | 3200 | 2550 | 350 | 150 | 425 | 11 | 3750×1715×2450 | 10 |
160/4000 | 1600 | 4000 | 3200 | 350 | 190 | 450 | 11 | 4550×1715×2730 | 12 |
160/5000 | 1600 | 5000 | 4000 | 350 | 190 | 450 | 11 | 5100×1570×2900 | 15.5 |
160/6000 | 1600 | 6000 | 4500 | 350 | 190 | 450 | 11 | 6100×1570×3010 | 18 |
200/3200 | 2000 | 3200 | 2600 | 350 | 190 | 460 | 11 | 3750×1815×2715 | 11 |
200/4000 | 2000 | 4000 | 3200 | 350 | 190 | 460 | 11 | 4550×1815×2850 | 13 |
200/5000 | 2000 | 5000 | 3800 | 350 | 190 | 460 | 11 | 5100×1715×3020 | 18.5 |
200/6000 | 2000 | 6000 | 4500 | 350 | 190 | 460 | 11 | 6100×1715×3120 | 21 |
250/3200 | 2500 | 3200 | 2600 | 400 | 240 | 525 | 15 | 3750×2010×2850 | 15.5 |
250/4000 | 2500 | 4000 | 3200 | 400 | 240 | 525 | 15 | 4550×2010×3010 | 17 |
250/5000 | 2500 | 5000 | 3800 | 400 | 240 | 525 | 15 | 5100×1890×3190 | 21.5 |
250/6000 | 2500 | 6000 | 4500 | 400 | 240 | 525 | 15 | 6100×1890×3350 | 28 |
300/3200 | 3000 | 3200 | 2600 | 400 | 250 | 545 | 22 | 3740×2100×3235 | 19.5 |
300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 545 | 22 | 4340×2100×3300 | 22 |
300/5000 | 3000 | 5000 | 3800 | 400 | 250 | 545 | 22 | 5100×2100×3430 | 26 |
300/6000 | 3000 | 6000 | 4500 | 400 | 250 | 545 | 22 | 6100×2100×3490 | 29 |
Note: No notice if any change of the above statistics made.

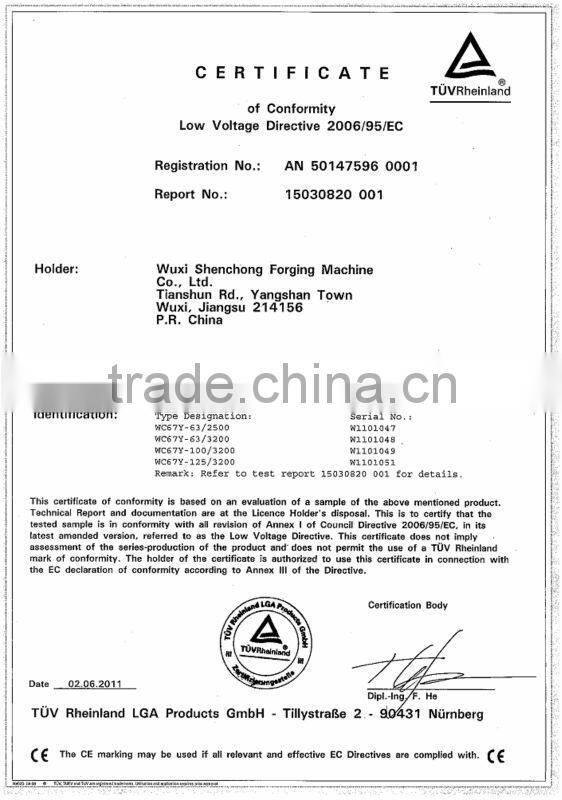

Shenchong Certificates
Shenchong Exhibition in the world
Customers in Shenchong
If you have any interested in our hydraulic bending and folding machine, don't hesitate to contact with me.
Francy Skype: scmachine86; Cell: +86-15190308001
