Home > Electrical & Electronics > Sensor > Pressure Sensor > GPB131 3kg Parallel Beam Load Cell Sensor

GPB131 3kg Parallel Beam Load Cell Sensor

Name: GPB131 3kg Parallel Beam Load Cell Sensor
Brand: GALOCE
SKU: 127699355
Availability: InStock

GPB131 3kg Parallel Beam Load Cell Sensor thumbnail-1

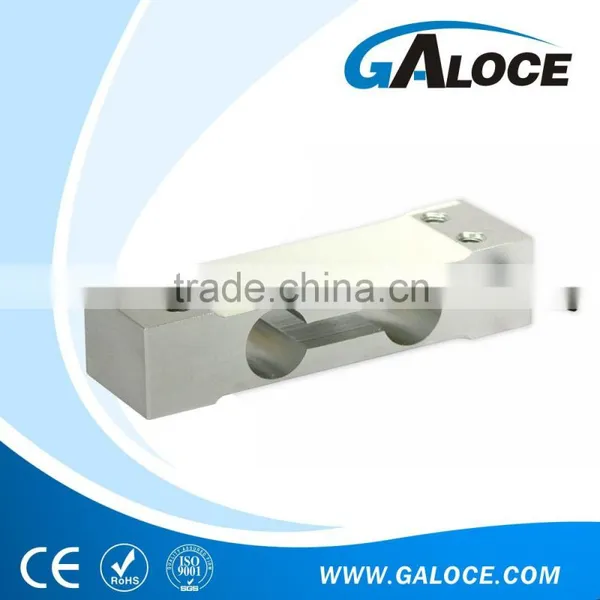

GPB131 3kg Parallel Beam Load Cell Sensor photo-1

US$ 5.5 - 7.5 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

GALOCE

Model Number:

GPB131

Contact Supplier Request Quote Chat Now

Xi'an Gavin Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name GALOCE

Model Number GPB131

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

GPB131 3kg parallel beam load cell sensor

Related recommend

Product Description

Features

Range: 3kg...100 kg
Material: aluminum alloy
Protection class: IP65
Application: electronic counting scales, platform scales and other Small size electronic weighing devices.

Specification

Range	3~100kg
Rated sensitive	2.0±0.2mV/V
Accuracy	C2
Combined error	±0.03%FS
Creep	±0.03%FS/30min
Zero balance	±1.5%FS
Input resistance	405 ±6Ω
Output resistance	350 ±3Ω
Installation resistance	≥5000MΩ(50Vdc)
Compensated temp. range	-10~+40°C
Operating temp. range	-30~+60°C
Temp. effect on zero	0.02%FS/10°C
Temp. effect on span	0.02%FS/10°C
Excitation(recommended)	9~12Vdc
Recommended platform size	250mm X 350mm
Safe overload	120%FS
Ultimate overload	150%FS
Cable specification	φ3.8mm, cable length:0.45m

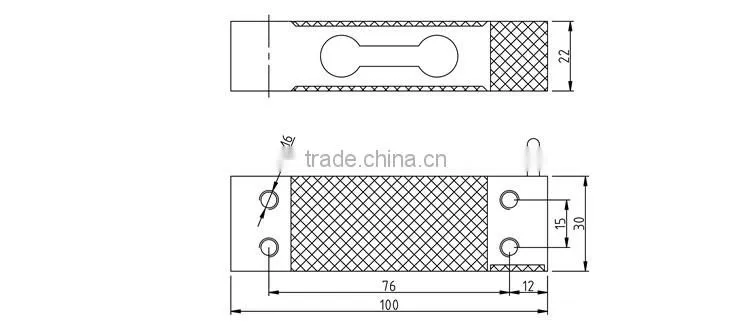

Dimension

Application

Product flowchart

Packaging & Shipping

Packing

Standard export package: each unit has individual box and all boxes are packed in standard packages.

Shipping

Products are shipped from china. We will sent out within 15 working days after the payment. We usually sendthe parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.

Our Services

Service standards: we are committed to provide a high quality and responsive service to all clients

The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.

Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.

Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3~5 working days to reach from from our side to your side, which is very convenient for your business

OEM available
