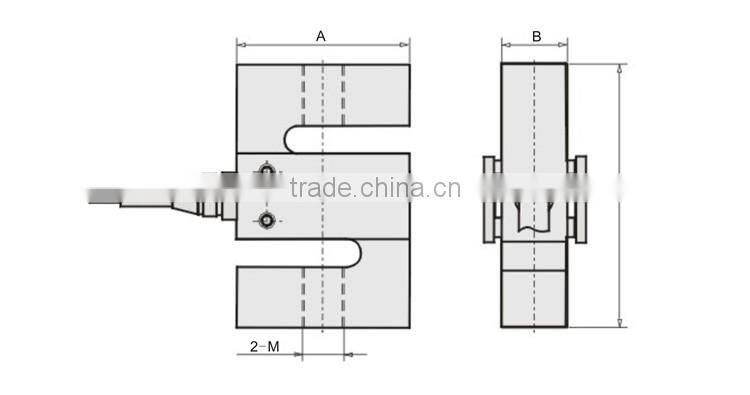

GSL305 Small Scale Compression Tension S Beam Weight Sensor

Specification

Range: 1kg-500kg

Accuracy: C2 & C3

Temp. effect on span(%F.S/10℃): ±0.017& ±0.011

Comprehensive error(%F.S): ±0.03 & ±0.02

Temp. effect on zero(%F.S/10℃): ±0.023 & ±0.015

Rated output(mv/v): 2.0±0.004

Compensated temp. range(℃): -10~+40

Creep(%F.S/30min): ±0.024 & ±0.016

Use temp. range(℃ ): -20~+55

Zero balance(%F.S): ±1.0

Excitation voltage(V): 9~12(DC)

Input resistance(Ω): 350±5

Safe overload (%F.S): 150

Output resistance(Ω): 350±3

Ultimate overload (%F.S): 200

Insulation resistance(MΩ): ≥5000(100VDC)

Defend grade : IP66

Free consult support

          24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.

        All staffs of GALOCE are open, honest and communicative to customers with respect.

Customization

         Provide OEM service, most products are customizable (please consult with us for details).

After sale service

         One year warranty since product shipped out. Fully technical support for application.

1. What essential information is needed for product selection?

         Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.

2. How will you ensure quality of your products?

         A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.

         B. One year warranty and life time free consult to any needs related with our product.

3. What terms of payment is acceptable?

         T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.

4. When production could be arranged?

         As soon as the payment was received.
