GCS702 Chinese waterproof column load cell

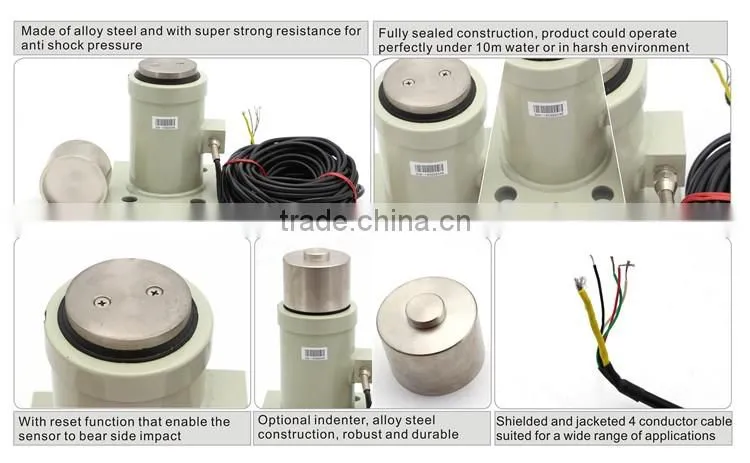

Features
1. Super strong resistance for anti shock pressure
2. Operating perfectly under 10m water
3. Could work under harsh environment i.e. in dusty, sandy or icing environment
4. Made of alloy steel, with reset function which enable the sensor to bear side impact
5. Super stability on accuracy during long term operation
6. User friendly, accuracy will not be affected in case that the product is installed with 5mm center deviation
Specification
Specification: | |
Range (T): 10, 20, 30, 40, 50 |
Insulation resistance (MΩ): ≥5000 (100VDC) |
Accuracy: C2/C3 |
Temp. effect on span (%F.S/10℃): ±0.017/±0.011 |
Comprehensive error (%F.S): ±0.03/±0.02 |
Temp. effect on zero (%F.S/10℃): ±0.023/±0.015 |
Rated output (mV/ V): 2.0±0.002 |
Compensated temp. range (℃): -10~+40 |
Creep (%F.S/30min): ±0.023/±0.016 |
Operation temp. range (℃): -30~+70 |
Zero balance (%F.S): ±1.5 |
Excitation voltage (V): 5-12 (DC) |
Input resistance (Ω): 700±5 |
Max. excitation voltage (V):18 (DC) |
Output resistance (Ω): 700±5 |
Safe overload (%F.S): 150 |
Ingress protection: IP66 or IP68 |
Ultimate overload (%F.S): 200 |
Dimension

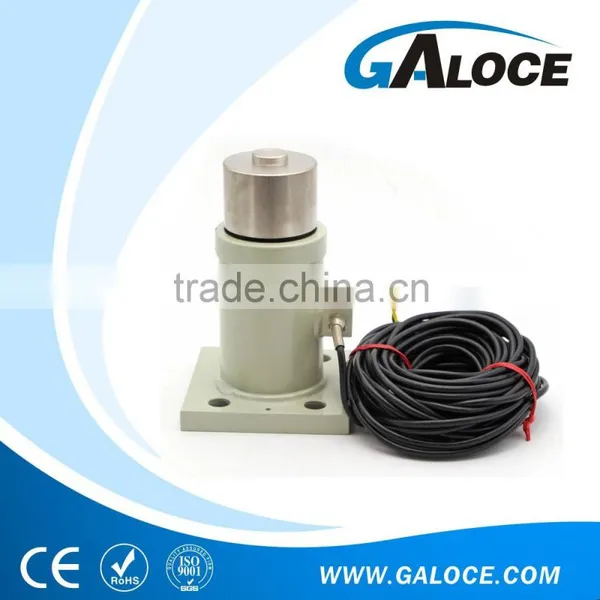

Product Details

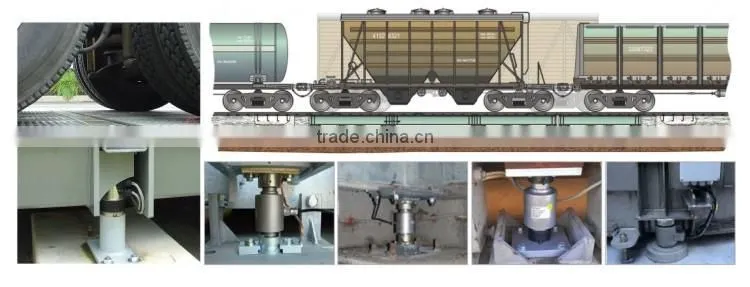

Application
Process flowchart
Free consult support |
|
24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.
All staffs of GALOCE are open, honest and communicative to customers with respect.
|
Customization |
|
Provide OEM service, most products are customizable (please consult with us for details).
|
After sale service |
|
One year warranty since product shipped out. Fully technical support for application.
|
1. What essential information is needed for product selection? |
|
Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.
|
2. How will you ensure quality of your products? |
|
A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.
B. One year warranty and life time free consult to any needs related with our product.
|
3. What terms of payment is acceptable? |
|
T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.
|
4. When production could be arranged? |
|
As soon as the payment was received.
|
