Specifications

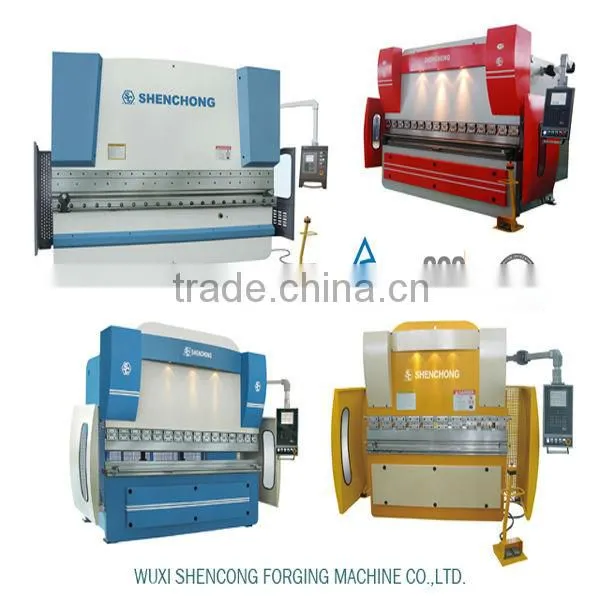

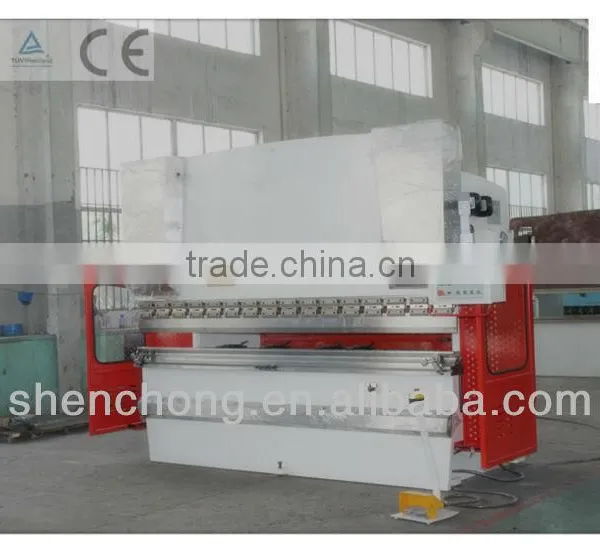

WC67K-100/3200 CNC HYDRAULIC PRESS BRAKEHigh accuracy ,convenient operation,
good performance,
favorable price
CE
1. THE WHOLE STRUCTURE OF THE MACHINE
Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
2. HYDRAULIC SYSTEM
It adopts integrated hydraulic control systems which is more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box. This can assure that the cylinder is always full of oil when the slide is moving down at high speed. And can save energy as the oil filling valve can guarantee the slide movement speed. Every complete working cycle can be achieved through the control of hydraulic valve. The remote adjustment valve can adjust the working pressure at the right side of the wall board.
The main sealing components of the cylinder are imported products (Japan brand).
Electricmagnetic valves are from SHANGHAI HYDRAULIC PARTS PLANT
3. SYNCHRO CONTROL SYSTEM
The slide synchro system adopts torsion bar synchro system with very simple structure but very high accuracy. This system is very easy for maintenance. The slides movement is always parallel to the working table. And this will make the movement effect balanced during operation.
4. CNC SYSTEM
5. TECHNICAL DATA
NOMINAL PRESSURE:1000KN
WORKING TABLE LENGTH: 3200MM
DISTANCE BETWEEN THE STANDING POSTS: 2600MM
THROAD DEPTH: 320MM
MAX. OPEN HEIGHT BETWEEN THE WORKING TABLE AND THE SLIDE:355MM
RAM STROKE (SLIDE STROKE): 100MM
MAIN MOTOR POWER: 7.5KW.
