Agon Gas Insulated Low-e Glass

Agon Gas Insulated Low-e Glass thumbnail-1
Agon Gas Insulated Low-e Glass photo-1
US$ 10 - 50 MOQ: 50 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
HuaYing Glass
Model Number:
insulated glass
Contact Supplier Request Quote Chat Now
Dalian Huaying Glass Limited Liability Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name HuaYing Glass
Model Number insulated glass
Function Bulletproof Glass, Decorative Glass, Heat Absorbing Glass, Heat Reflective Glass, Insulated Glass, Low-E Glass
Shape Flat
Structure Hollow
Technique Clear Glass, Frosted Glass, Laminated Glass, Tempered Glass
Type Sheet Glass

Specifications

Agon Gas Insulated Low-e Glass
Saint-Gobain Low-e Glass
13 year's experience
CCC/SGCC/ISO9001

     Insulated  GlassAgon Gas Insulated Low-e GlassDiscription of insulaAgon Gas Insulated Low-e Glassted glass:

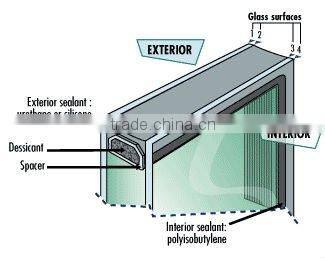

To reduce heat gain or loss through windows, two or more lites can be sealed together to form insulating glass. Most sealed units consist of two lites separated by an air or gas space and hermetically sealed. The lites are held apart by a spacer around the perimeter. The spacer contains an absorbent material, called desiccant, which keeps the air or the gas sealed inside the unit free from visible moisture. The entire perimeter of the insulating glass is sealed with two sealants.

Characteristics of insulated glass:
The main criteria to take into consideration in the choice of components in a sealed unit are : Agon Gas Insulated Low-e Glass
 1- Energy Performance :

•Transmission of visible light (%)

•Reflection of visible light (%)

•Transmission of total solar energy (%)

•Reflection of total solar energy (%)

•Transmission UV rays (%)

•U - factor (W/m2°C)

•Shading Coefficient (ratio)

•Solar Heat Gain Coefficient (ratio)
2- The Function of Insulated Glass :

•Reduced glare

•Reduced fading of valuable furnishings, displays or merchandise

•Greater comfort

•Condensation resistance

•Reduced noise

•Passive and/or active protection of occupants and possessions

•Easier maintenance

•Improved durability
3- Appearance :

•Choice of shapes: circles, ovals, trapezoids or triangles

•Choice of colors : clear,green, grey, bronze, blue, blue-green

•Addition of decorative elements: grills, sandblasting, silk-screening or more.

Dimensions of insulated glass:

Max. Size: 2500 MM X 3600 MM

Min. Size: 300 MM X 300 MM

Thickness of aluminum frame:4 MM, 9MM, 12MM, 16MM ~ 19 MM

Thickness of insulating glass: 12MM ~ 50MM.

Application of insulated glass:

1. window glass,curtain wall glass in commercial office building and residential architecture.

2.Glass doors used in inindusty such as freezer, refrigerators ,etc.



Package: standard wooden caseAgon Gas Insulated Low-e Glass

Production ability of insulating glass:

The company imported advanced production line of  insulating glass from Switzerland.Agon Gas Insulated Low-e Glass
