Home > Products > Building Glass > Point-fixing Glass Curtain Wall

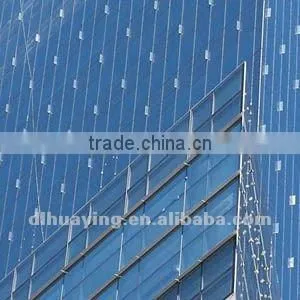

Point-fixing Glass Curtain Wall
- 50000 Piece / Pieces per Month
- Dalian
- T/T
Product Details
Place of Origin: | Liaoning, China | Brand Name: | Hua Ying Glass | Model Number: | Glass Curtain Wall |
Material: | Other, Glass, glass |
Product Description
Specifications
Point-fixing Glass Curtain Wall13 years' experience
Size:200*200mm~2300*5500mm
Over10 years' after service
ISO9001/CCC/SGCC
Curtain Glass Wall are hermetically sealed combinations of two or more panes of glass separate by a dry airspace. The air trapped between the two pieces of glass acts as an insulator slowing the rate at which heat and cold can pass through the unit. The more air sandwiched between the glass,the better insulator effect you have.
Name | Curtain Wall Glass |
Max Size | 2300mm*5500mm |
Min Size | 200mm*200mm |
Total Thickness | 12mm~50mm |
Normal Aluminium Frame | 4mm,9mm,12mm,14mm,16mm~19mm |
Quality Standard | ISO9001:2008/SGCC/CCC/CE |
Color | Clear, white, blue, grey, green, etc. |
CNC Cutting | Shaped, rectangular |
Edging | Flat edge, grind edge, fine polished edge, beveled edge and others. |
Features | 1. Good insulation properties (K Value for ordinary insulating glass (K= thermal conductivity) is up to 3.0 and 5.8 for monolayer glass), can largely cut energy consumption. 2. Low moisture permeability, will keep the indoor temperature and to avoid the glass frosting.. 3. Dew point of insulating glass is up to -50 °C, can reduce outside noise of 30 dB. 4. Good anti-aging properties, the usage life will be over 10 years. |
MOQ | 1 FCL |
Payment Terms | T/T(30% in advance, and the balance before shipment) or L/C (100% irrevocable letter of credit) |
Package | Sea-worthy standard wooden crates with interlayer papers |
Application | Building industry, curtain wall,train, ship, refrigerator, etc. |
Normal configuration of CURTAIN WALL glass
5+9A+5, 6+9A+6, 5+12A+5, 6+12A+6, 8+12A+8, 10+12A+10,
4+16A+4, 6+16A+6, 4+18A+4, 6+18A+6 etc.
Qulity Control :
Production Ability of Insulated Glass:
Our company imported advanced production line of insulted glass from Switzerland.
Packing:
Non-fumigation wooden crates, paper placed between two pieces, strengthened by steel strips
Contact Us
- Dalian Huaying Glass Limited Liability Company
- Contact nameArabella Li
- Phone86-411-87851658
- AddressNo. 578-9, Wuyi Road, Jinzhou District Dalian,Liaoning
