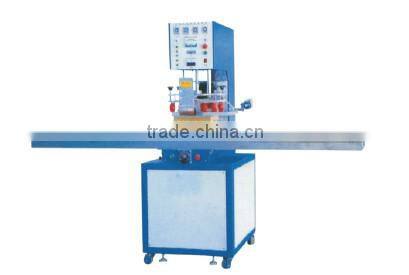

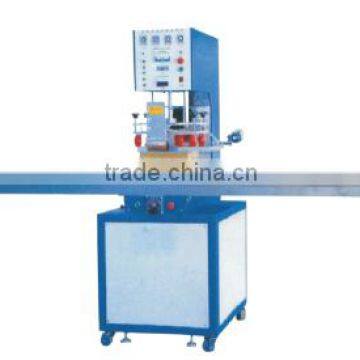

push type high frequency machine :
Characteristic description:
Spark press
When spark is generated, this machine has special electronic circuit can automatically cut off the high frequency suppress sparks which make damage to the electrode and the material down to the lowest, while warning also illuminated.
Avoid interference device
Provided with high frequency stabilizer and high frequency magnetic flux leakage suppression device. This device can avoid waves exposed so as not to interfere other electronic devices, such as television, radio, etc.Safety device
When the current exceeds the limit value, the overload current relay automatically protects the oscillating tube and the rectifier, while avoiding the frequency drift caused by improper operation Strong head.
After a special machine with the pedal pressure mechanism, the maximum pressure can reach 400 DGS, and the strength is sufficient to meet any of the time, and the characteristics of the device is convenient and accurate.
The adjuster is easy to adjust
The output power can be adjusted according to the size of the electrodes and the size of the material, the other is equipped with a variety of control devices and special electronic circuits, can greatly reduce the need for welding time, improveproduction efficiency.
Head multi gear stroke adjustment:
When the mold size and height are not the same, can adjust the stroke of the nose according to different situation which can save manpower and faculty product accuracy can reach 98%.
Specification parameter:
Model: DOY-3000 DOY-4000 DOY-5000 DOY-6000 DOY--8000
High 3KW 4KW 5KW 6KW 8KW
The oscillation frequency 40.68MHZ 27.12MHZ
Power supply voltage AC220/380V
Power input 5KVA 6.5KVA 8.5KVA 10KVA 15KVA
Oscillating tube E3062TV 7T85RB 7T69RB
Rectifier silicon two
Maximum pressure (KG) 400
Upper and lower electrode interval (mm) 170
Activity distance (mm): 40/60/80 three adjustable
Fixed disk size: 350*680/400*800 350*680
Operation mode: foot pedal
Machine net weight: 270 300 380 430 460
Mechanical gross weight: 320 350 430 480 510
