Specifaications of the toggle switch :
Approvel |
CE |
Assembly method |
Casing assembly |
Extreme number |
DPDT |
Install hole size |
diameter:12.5mm |
ratings |
10A 250VAC 15A 125VAC 1/2HP 125-25 |
Mechanical life |
More than 50.000 cycles |
Dielectric strength |
1,000 V RMS (min) |
Electrical life |
More than 10,000 cycles |
Insulation resistance |
100 MΩ(min) |
Temperature |
- 25 degrees ~ 80 degrees |
Basal material |
Poly propylene materials |
Humidity |
850°Cbelow |
Withstand voltage |
2000V, 50/60Hz lasts 1 min |
Vibration |
10 to 55Hz, 1.5 mm double amplitude |

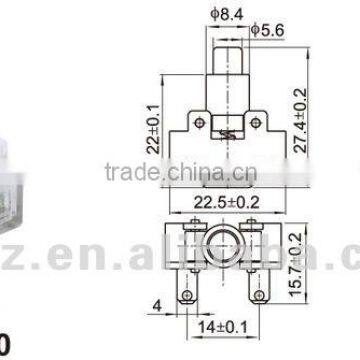

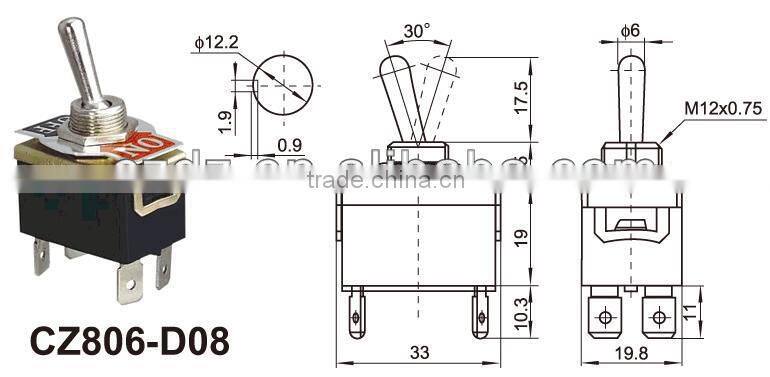

Drawing picture of this toggle switch :
-
Toggle switch structure drawings
.16
Screws
6
Steel
LQ235
15
Terminal
6
Brass
H62
14
Case
1
Bakelite
PF2C3-431J
13
Rivet
2
Copper
T3
12
Plunger
2
PC
L-1250
11
Plunger Holder
1
PC
L-1250
10
Spring
2
Steel
T9A
9
Bracket
2
Brass
H62
8
Rivet
4
Copper
2#
7
Contactor
4
AgSnO2
2#
6
Movable Terminal
2
Brass
H62
5
Housing
1
Steel plate
08F
4
Nameplate
1
Aluminium
A1-1
3
Nut
2
Steel plate
08F
2
Bushing
1
Steel
LQ235
1
Handle
1
Steel
LQ235
No
Name
Number
Material
Remark
Waterproof can be choose for this type
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
1.Heavy duty type,panel mounting.
2.Can used with waterproof cover or safety guard.
3.Free sample is available !
4.If you need any parts, please kindly send us your drawings or sample for quotation.
