Product Details
Place of Origin: | Zhejiang, China | Brand Name: | ZJCZ | Model Number: | CZ806-D01 |
Max. Current: | 20A | Max. Voltage: | 250V | Mechanical Life: | 10000times |
Product Description
- ON-OFF screw terminal toggle switch manufacturer ; metal toggle switch;
SPEC | DETAILS |
Rating | 10A 125VAC; 6A 250VAC;15A 125VAC;10A 250VAC;20A 125VAC; 15A 250VAC |
Contact Resistance | 50MΩ Max |
Insulation Resistance | 500VDC 1000MΩ Min |
Dielectric Strength | 1000VAC 1 Minute |
Operating Temperature | - 25°c ~ +85°c |
Electrical Life | ≥ 10,000 cycles |
Approvals | CE ROHS VDE |
Material | Base (bakelite) ,Handlle and Terminal (Copper and Silver plated).Silver Contact |
Base color | Black,Red,Brown |
Circuitry Trait | ON-OFF;ON-ON; ON-OFF-ON; ON-(ON); ON-OFF-(ON); (ON)-OFF-(ON); |
eaton toggle switch structure drawing:
.
16 | Screws | 6 | Steel | LQ235 |
15 | Terminal | 6 | Brass | H62 |
14 | Case | 1 | Bakelite | PF2C3-431J |
13 | Rivet | 2 | Copper | T3 |
12 | Plunger | 2 | PC | L-1250 |
11 | Plunger Holder | 1 | PC | L-1250 |
10 | Spring | 2 | Steel | T9A |
9 | Bracket | 2 | Brass | H62 |
8 | Rivet | 4 | Copper | 2# |
7 | Contactor | 4 | AgSnO2 | 2# |
6 | Movable Terminal | 2 | Brass | H62 |
5 | Housing | 1 | Steel plate | 08F |
4 | Nameplate | 1 | Aluminium | A1-1 |
3 | Nut | 2 | Steel plate | 08F |
2 | Bushing | 1 | Steel | LQ235 |
1 | Handle | 1 | Steel | LQ235 |
No | Name | Number | Material | Remark |

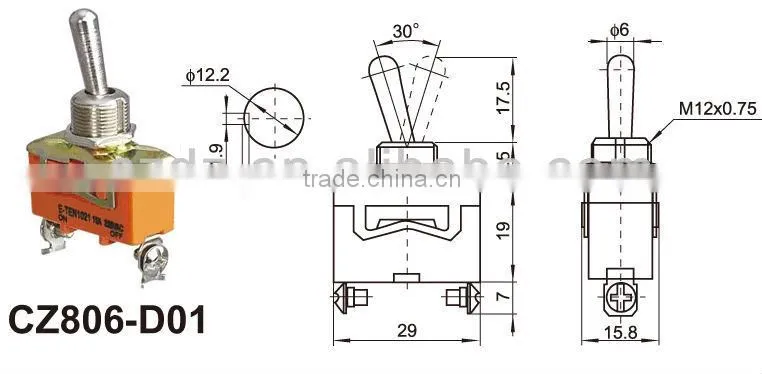

- Drawing of the toggle switch :
Terminal Form:

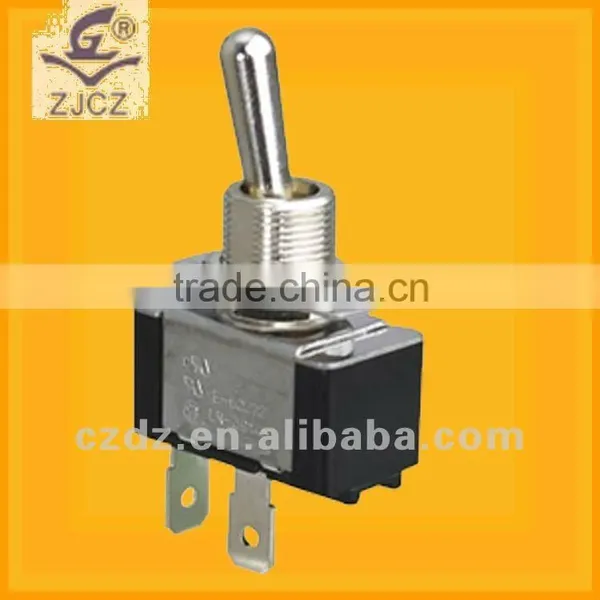

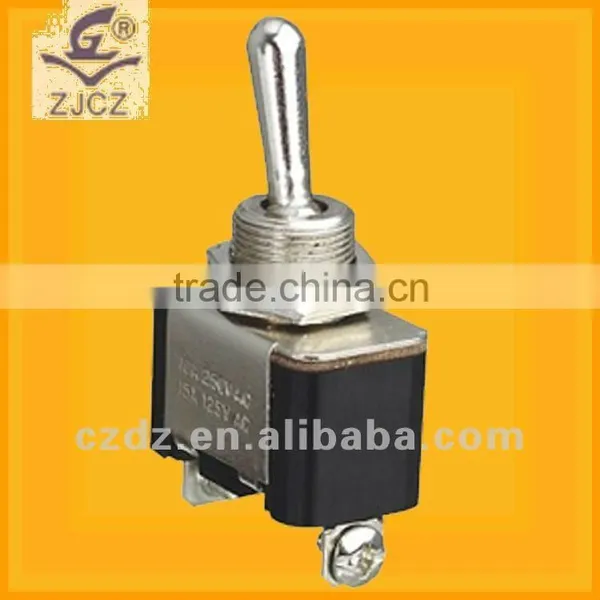

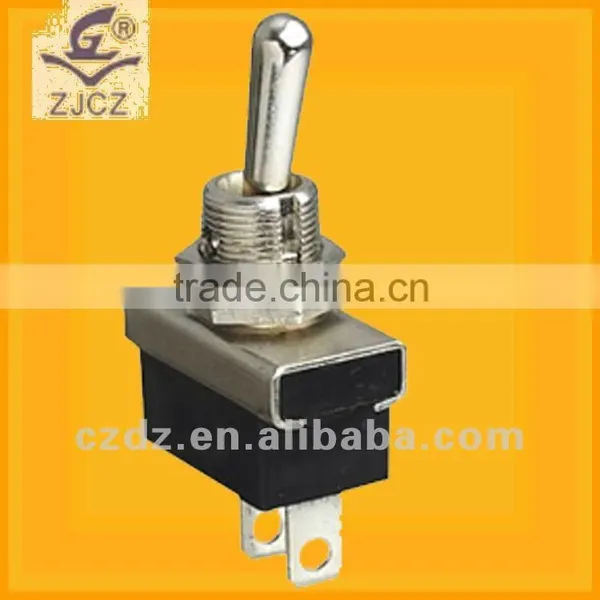

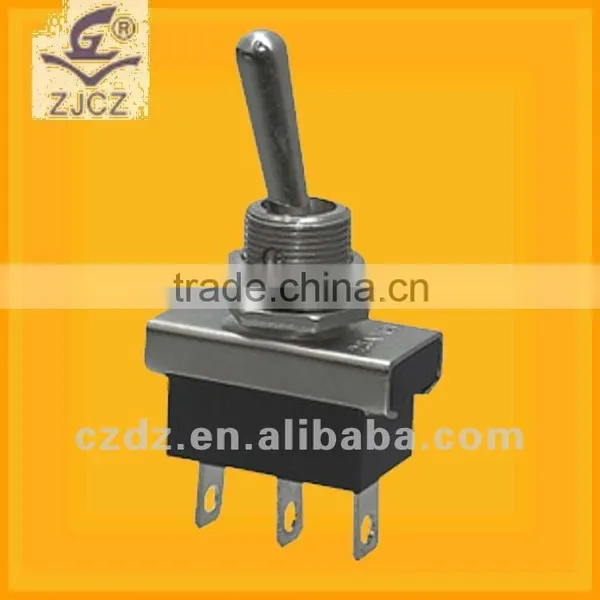

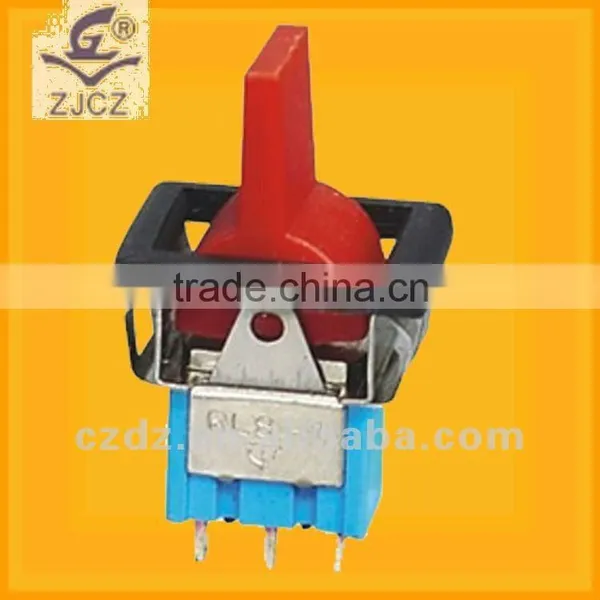

- Photo of this type toggle switch:
Waterproof can be choose for this type
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
1.Heavy duty type,panel mounting.
2.Can used with waterproof cover or safety guard.
3.Free sample is available !
4.If you need any parts, please kindly send us your drawings or sample for quotation.
About us :Yueqing Chuangzhan Electronics Co.,Ltd is a professional manufacture of switch. We can offer OEM/ ODM sevices. We make the moulds and the moulded parts by ourselves to ensure the switch quality and reduce cost. We can supply with different standard switch to meet different customers' demands.
About quality control: We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life.
About brand: We hnve our own brand "ZJCZ" , and also , we can design the brand for our clients.
About Certificate: our company has passed ISO9001: 2008, and the rocker switches have passed TUV,CE and have ROHS test reports , VDE and UL is in examing and verifying ~
