Help CenterDPDT 250V Toggle Switch / 15A/25A Machine Toggle Switch,wall Mount Button Light Switch
Related Products
-
Toggle Switch/9 Pin Toggle Switch,small Toggle Switches,toggle Switch CapUS$ 0.01 - 0.15MOQ: 1 Piece -
Automotive Toggle Switch,mini Toggle Switch,Miniature Toggle SwitchNegotiableMOQ: 1000 Pieces
-
Mini Toggle Switch,tpdt Double Throw Middle Stop Screw Toggle SwitchNegotiableMOQ: 2000 Pieces
-
Toggle Switch Cover,automatic Reset 6 Pole Double Throw Toggle SwitchNegotiableMOQ: 5000 Pieces
-
10A Spdt Momentary Toggle Switch,metal Poles and Handle Toggle SwitchUS$ 0.5 - 0.9MOQ: 200 Pieces
Machine Toggle Switch manufacturer :
- SPECIFICATIONS OF OUR TOGGLE SWITCH
- The contact resistance :≤ 30mΩ
- Dielectric strength:1500VAC/MIN
- Insulation Resistance:500V AC 1000mΩ/MIN
- Rated : 15A 250V AC / 10A 250V
- 20A 125V AC / 15A 125V
- Temperature: -25~85.c
- Mechanic life :≥10000cycles

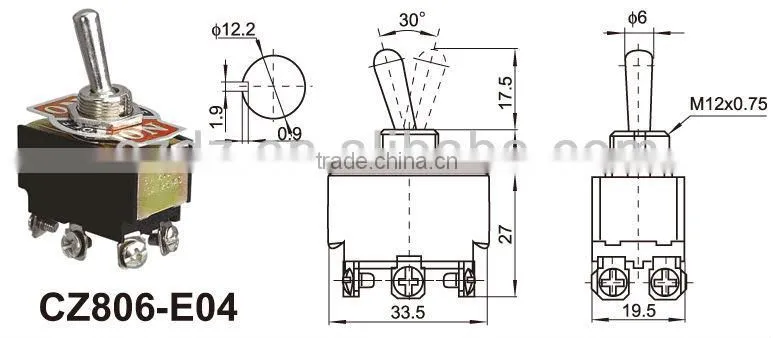

- Drawings :

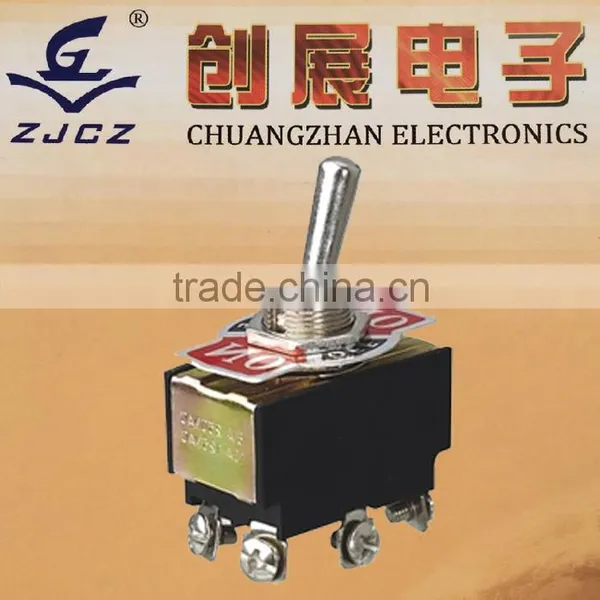

- Photo picture :
-
Toggle switch structure drawings
.16
Screws
6
Steel
LQ235
15
Terminal
6
Brass
H62
14
Case
1
Bakelite
PF2C3-431J
13
Rivet
2
Copper
T3
12
Plunger
2
PC
L-1250
11
Plunger Holder
1
PC
L-1250
10
Spring
2
Steel
T9A
9
Bracket
2
Brass
H62
8
Rivet
4
Copper
2#
7
Contactor
4
AgSnO2
2#
6
Movable Terminal
2
Brass
H62
5
Housing
1
Steel plate
08F
4
Nameplate
1
Aluminium
A1-1
3
Nut
2
Steel plate
08F
2
Bushing
1
Steel
LQ235
1
Handle
1
Steel
LQ235
No
Name
Number
Material
Remark
Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
1.Heavy duty type,panel mounting.
2.Can used with waterproof cover or safety guard.
3.Free sample is available !
4.If you need any parts, please kindly send us your drawings or sample for quotation.
About us :Yueqing Chuangzhan Electronics Co.,Ltd is a professional manufacture of switch. We can offer OEM/ ODM sevices. We make the moulds and the moulded parts by ourselves to ensure the switch quality and reduce cost. We can supply with different standard switch to meet different customers' demands.
About quality control: We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life.
About brand: We hnve our own brand "ZJCZ" , and also , we can design the brand for our clients.
About Certificate: our company has passed ISO9001: 2008, and the rocker switches have passed TUV,CE and have ROHS test reports , VDE and UL is in examing and verifying ~
