4KW power inverter for home solar system
Description of 4KW power inverter :
SUG pure sine wave inverter Smart4000W offering superior quality true sine wave output, it is designed to operate popular power tools and sensitive loads.
Connect SUG Smart4000W pure sine wave inverter with battery terninals,then you can get AC power for your appliances, the AC output identical to, and in some cases better than the power supplied by your utility.
Features of 4KW power inverter :
- Input & output fully insolated.
- High Surge: high surge current capability starts difficult loads such as TVs,camps,motors and other inductive loads.
- Grounding Protection: there is terminal in front panel, you can grouding the inverter.
- Soft start: smooth start-up of the appliances.
- Pure sine wave output waveform: clean power for sensitive loads.
- AC output identical to, and in some cases better than the power supplied by your utility.
- Cooling fan works automatically when inverter becomes too hot, it turns off automatically when the temperature is reduced.
- Low total harmonic distortion: below 3%.
- Two LED indicators on the front panel show the working and failure state
Specification of 4KW power inverter :
Model |
SGP4000A-121 |
SGP4000A-122 |
SGP4000A-241 |
SGP4000A-242 |
|
Rated Power |
4000W |
||||
Surge Power |
8000W |
||||
Input Voltage |
12VDC |
24VDC |
|||
Output Voltage |
110VAC |
220VAC |
110VAC |
220VAC |
|
USB Port |
5V 1A |
||||
Frequency |
50/60Hz±3 |
||||
Output Waveform |
Pure Sine Wave |
||||
Soft Start |
YES |
||||
THD / AC Regulation |
THD<3%(Linear Load) |
||||
Output Efficiency |
94% MAX |
||||
No Load Current |
1.8A |
0.9A |
|||
DC Voltage Range |
10-15.5V |
20-31V |
|||
Low Voltage Alarm |
10.5±0.5V |
21±0.5V |
|||
Low Voltage Shut Down |
10±0.5V |
20±0.5V |
|||
Low Voltage Recovery |
13±0.5V |
24±0.5V |
|||
Over Voltage Shut Down |
15.5±0.5V |
31±0.5V |
|||
Over Voltage Recovery |
14.8V±0.5V |
29V±0.5V |
|||
Cooling Way |
Intelligent Cooling Fan |
||||
Protection |
Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity(optional) |
||||
Working Temperature |
-10℃ - +50℃ |
||||
Net Dimension |
46.5*21.6*15.6cm (L×W×H) |
||||
Inner Box Dimension |
25.6*15*9.8cm (L×W×H) |
||||
Meas./Ctn |
57.5*31.5*25cm / 1pcs |
||||
G.W./Ctn |
12KGS |
||||
Packing |
Honeycomb box |
||||
Brand |
Customer OEM |
||||
Warranty |
1 Years |
||||
Design Process of 4KW power inverter :
Picture of 4KW power inverter :

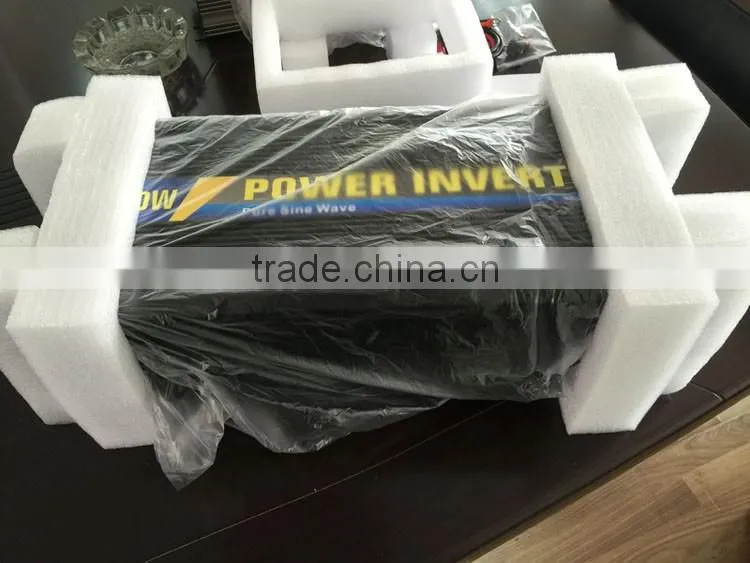

Packing of 4KW power inverter :
Certificate of 4KW power inverter :
Views of company:
Our series
Customer logo:Acceptable
Changing on material :color ,shape,construction:Acceptable
General inspection on fixing before packing
Third party inspection:Acceptable
Quality Control:
All product must go through five checks before manufacturcing process
Revelant material check before production
Full check after every individual process finshed
Full check after production half-done
Sprots check after production packed before shipping
Guarantee:
Cuatomer's interestes can be full quaranteed
Every defective product or quality problem(besides the damage during transporation can be replace in the next order)
Any defective product or quality problem which cause customer's losses can be compensated in their next order.
SEND US YOUR QUESTIONS,
WE WILL BE HAPPY TO ANSWER THEM.
1. What is inverter?
Inverter is an electronic equipment that turn 12v/24v/48v dc into 110v/220v ac. High
2. How many kinds of output wave form for inverters?
Two kinds. Pure sine wave and modified sine wave. Pure sine wave inverter could provide high quality AC and carry various loads, while it requires high tech and high cost. Modified sine wave inverter load poorly not carrying inductive load, but the price is moderate.
3. How do we equip an appropriate inverter for battery?
Take a battery with 12V/50AH as an example. Power equal current plus voltage then we know the power of battery is 600W. 12V*50A=600W. So we can choose a 600W power inverter according this theoretical value.
