Power inverter dc 12v ac 220v 5000w peak power 10000w
Description of power inverter 5000w :
SUG pure sine wave inverter Smart-5000W offering superior quality true sine wave output, it is
designed to operate popular power tools and sensitive loads.
Connect SUG Smart-5000W pure sine wave inverter with battery terninals, then you can
get AC power for your appliances, the AC output identical to, and in some cases better than the power supplied by your utility.
Features of power inverter 5000w :
- Input & output fully insolated.
- High Surge: high surge current capability starts difficult loads such as TVs,camps,motors and other inductive loads.
- Grounding Protection: there is terminal in front panel, you can grouding the inverter.
- Soft start: smooth start-up of the appliances.
- Pure sine wave output waveform: clean power for sensitive loads.
- AC output identical to, and in some cases better than the power supplied by your utility.
- Cooling fan works automatically when inverter becomes too hot, it turns off automatically when the temperature is reduced.
- Low total harmonic distortion: below 3%.
- Two LED indicators on the front panel show the working and failure state.
Specification of power inverter 5000w :
Model |
SGP5000A-121 |
SGP5000A-122 |
SGP5000A-241 |
SGP5000A-242 |
|
Rated Power |
5000W |
||||
Surge Power |
5000W |
||||
Input Voltage |
12VDC |
24VDC |
|||
Output Voltage |
110VAC |
220VAC |
110VAC |
220VAC |
|
USB Port |
5V 1A |
||||
Frequency |
50/60Hz±3 |
||||
Output Waveform |
Pure Sine Wave |
||||
Soft Start |
YES |
||||
THD / AC Regulation |
THD<3%(Linear Load) |
||||
Output Efficiency |
94% MAX |
||||
No Load Current |
3.2A |
1.6A |
|||
DC Voltage Range |
10-15.5V |
20-31V |
|||
Low Voltage Alarm |
10.5±0.5V |
21±0.5V |
|||
Low Voltage Shut Down |
10±0.5V |
20±0.5V |
|||
Low Voltage Recovery |
13±0.5V |
24±0.5V |
|||
Over Voltage Shut Down |
15.5±0.5V |
31±0.5V |
|||
Over Voltage Recovery |
14.8V±0.5V |
29V±0.5V |
|||
Cooling Way |
Intelligent Cooling Fan |
||||
Protection |
Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity(optional) |
||||
Working Temperature |
-10℃ - +50℃ |
||||
Net Dimension |
46.5*21.6*15.6cm (L×W×H) |
||||
Meas./Ctn |
57.5*31.5*25cm / 1pcs |
||||
N.W./Unit |
10.5kg |
||||
G.W./Ctn |
12.5KGS |
||||
Packing |
Honeycomb carton |
||||
Brand |
Customer OEM |
||||
Warranty |
1 Years |
||||
Design Process of power inverter 5000w :

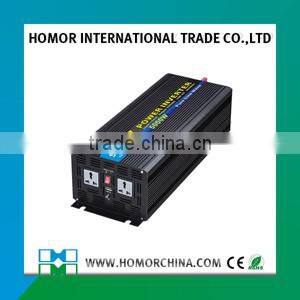

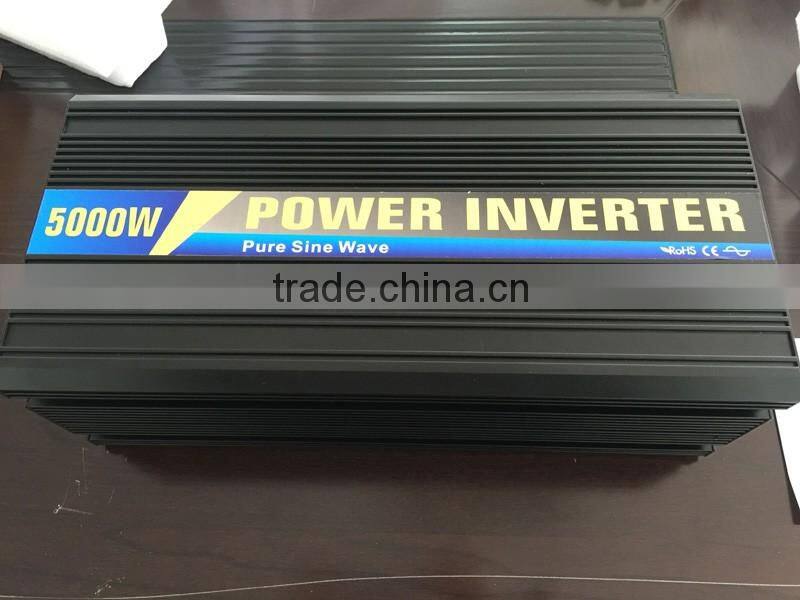

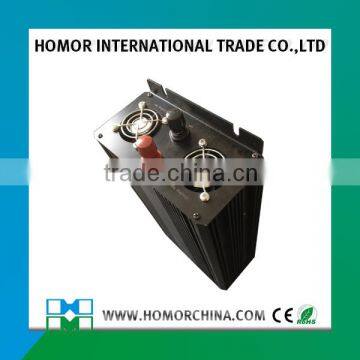

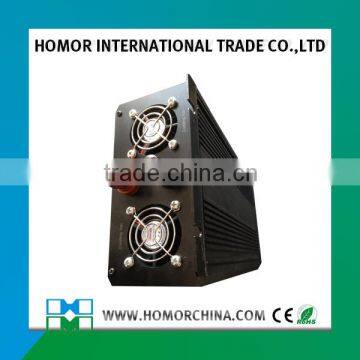

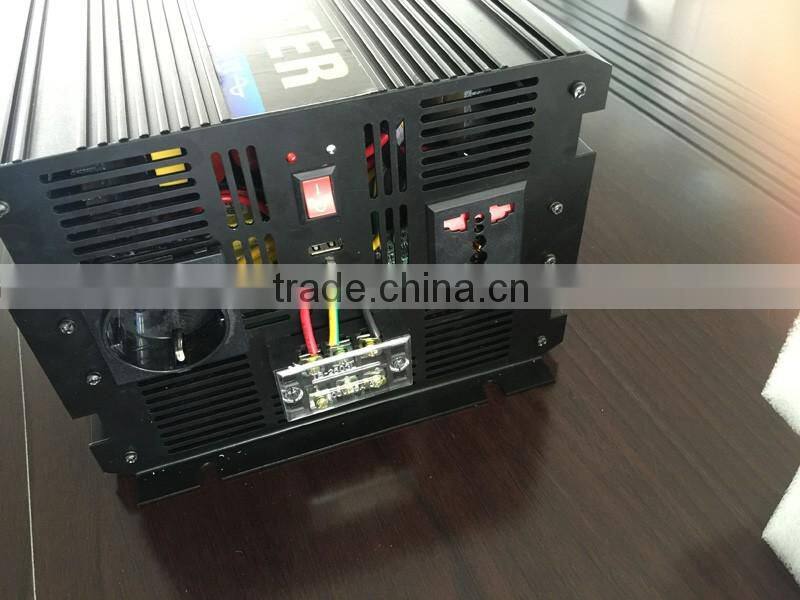

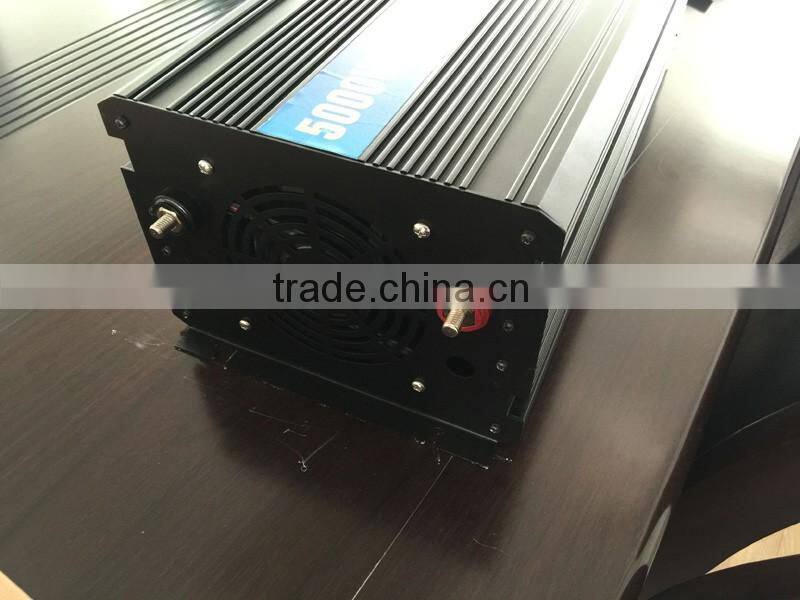

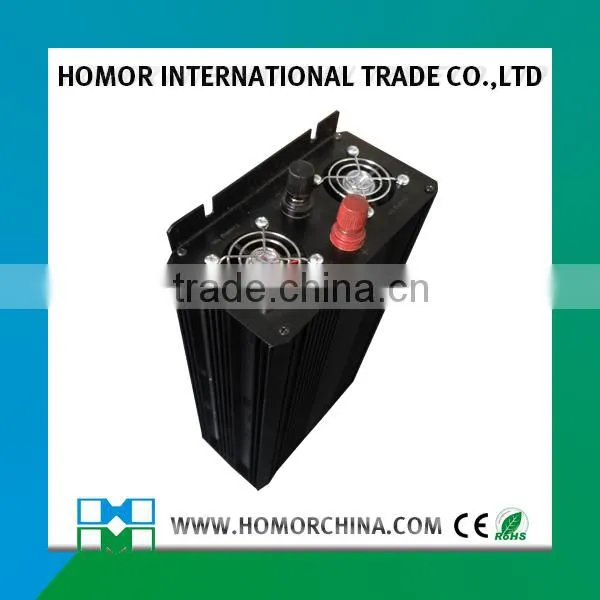

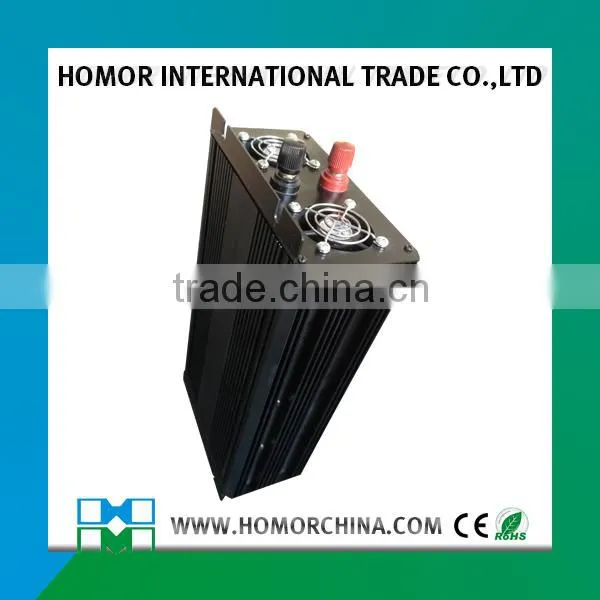

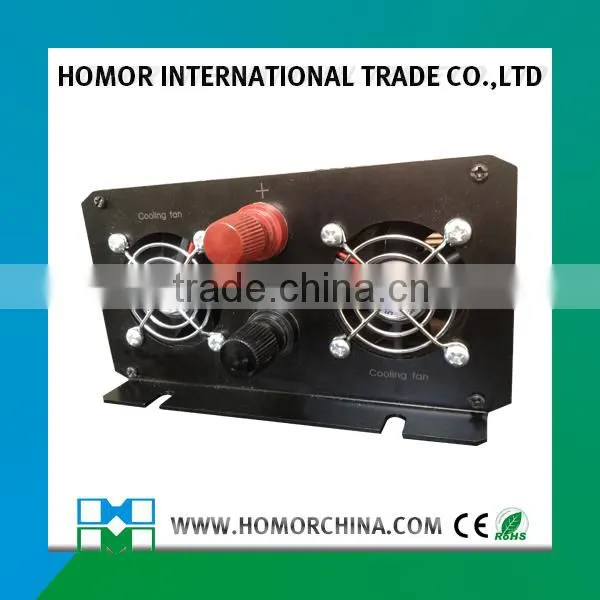

Picture of power inverter 5000w :
Packing of power inverter 5000w :
Certificate of power inverter 5000w :
Views of company:
Our series
Customer logo:Acceptable
Changing on material :color ,shape,construction:Acceptable
General inspection on fixing before packing
Third party inspection:Acceptable
Quality Control:
All product must go through five checks before manufacturcing process
Revelant material check before production
Full check after every individual process finshed
Full check after production half-done
Sprots check after production packed before shipping
Guarantee:Cuatomer's interestes can be full quaranteed
Every defective product or quality problem(besides the damage during transporation can be replace in the next order)
Any defective product or quality problem which cause customer's losses can be compensated in their next order.
