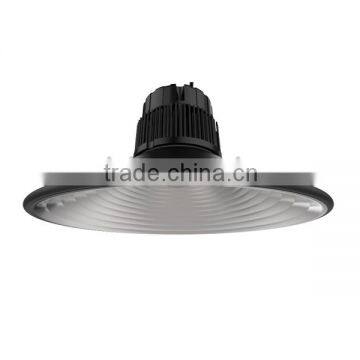

IP66 Aluminum Lamp Body Material 100W LED Highbay Lights

IP66 Aluminum Lamp Body Material 100W LED Highbay Lights photo-1
IP66 Aluminum Lamp Body Material 100W LED Highbay Lights photo-2
IP66 Aluminum Lamp Body Material 100W LED Highbay Lights photo-3
IP66 Aluminum Lamp Body Material 100W LED Highbay Lights photo-4
IP66 Aluminum Lamp Body Material 100W LED Highbay Lights photo-5
IP66 Aluminum Lamp Body Material 100W LED Highbay Lights photo-6
US$ 28 - 35 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Light Source:
HID
Input Voltage(V):
220
Lamp Power(W):
100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Light Source HID
Input Voltage(V) 220
Lamp Power(W) 100
Lamp Luminous Flux(lm) 82.36
Lamp Luminous Efficiency(lm/w) 8301.20
Color Temperature(CCT) Other, Cool White, 2700K
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP66
Certification CE, UL
Brand Name Jinshun
Base Type Other
Place of Origin Jiangsu, China
Model Number B-120-120-1-100W-Z





      IP66 Aluminum Lamp Body Material 100W LED highbay Lights



 Wuxi guangtai glass lens can provide IP66 Aluminum Lamp Body Material 100W LED highbay Lights, our advantage as following:





Advantage:

1.16years optical glas lens molding experience, expert in optical design.
2. 120 degree angle and round light parrern
3. die casting aluminum body can be used as sink radiator
4. 60W and 6500 lumens LED highbay light
5. High Quality led light, supporting 5 years warranties
6. Easy to install, the appearance is in concise style and easy assembly


1 Highbay light description

(1) Product name: IP66 Aluminum Lamp Body Material 100W LED highbay Lights
(2) Item number:B-120-120-Z-100W-2.7KK
(3) Lamp cover dimension: Diameter:375mm, Height:237mm
(4)Angle:120 degree
(5) Raw materials:Aluminum
(6) Application power: 100W
(7) Color: Black or as client's request

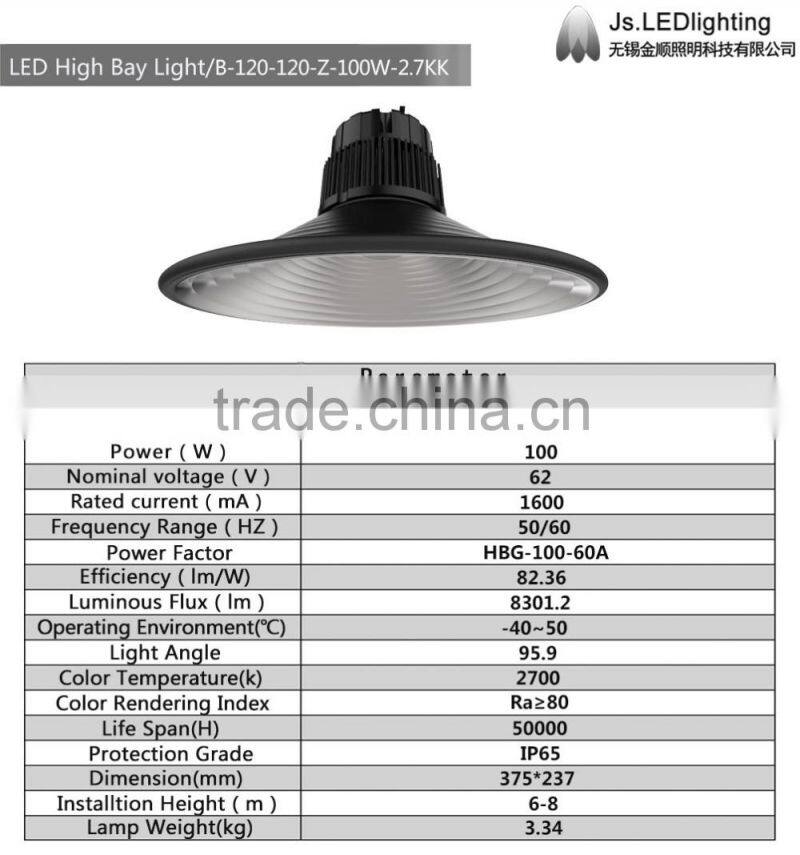

2 Highbay light parameter list: IP6IP66 Aluminum Lamp Body Material 100W LED highbay Lights

IP66 Aluminum Lamp Body Material 100W LED highbay Lights

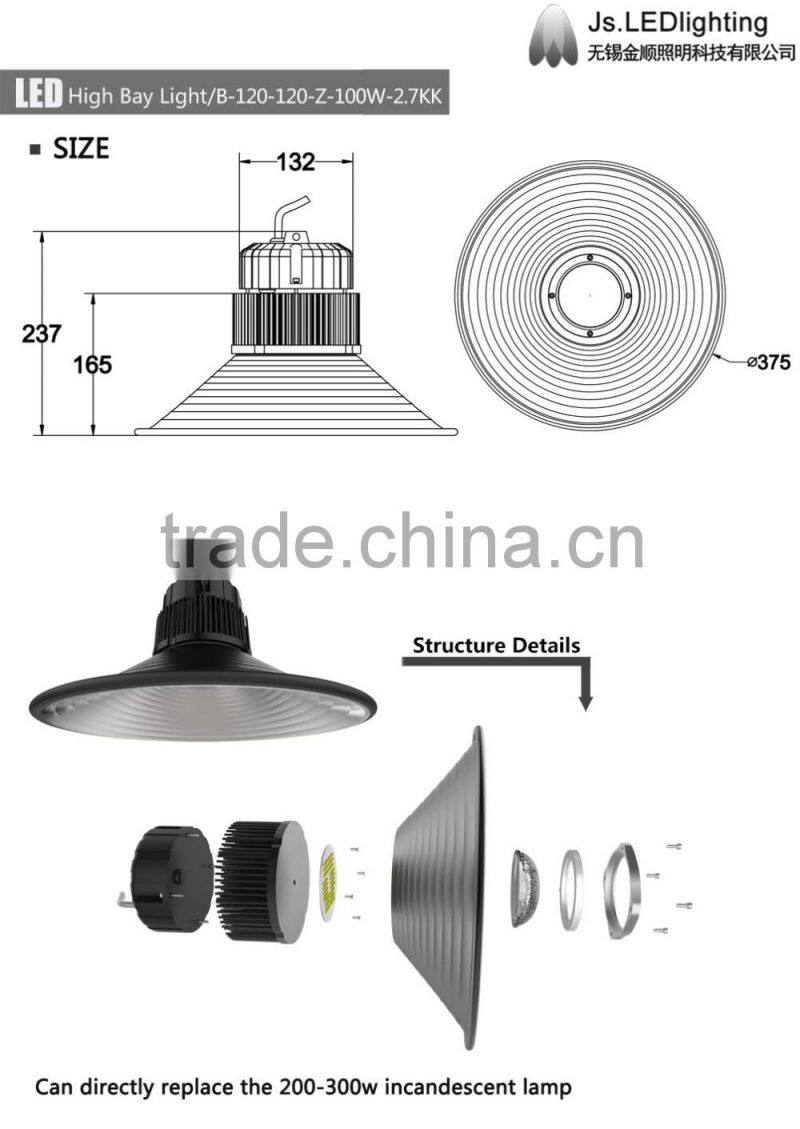

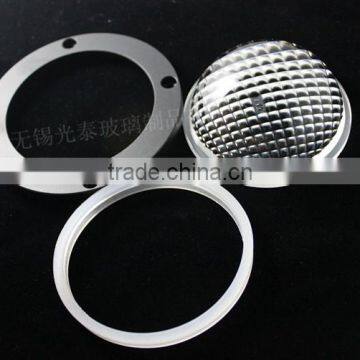

3 Highbay light component for IP66 High power 100W led high bay light 220VAC

 IP66 Aluminum Lamp Body Material 100W LED highbay Lights

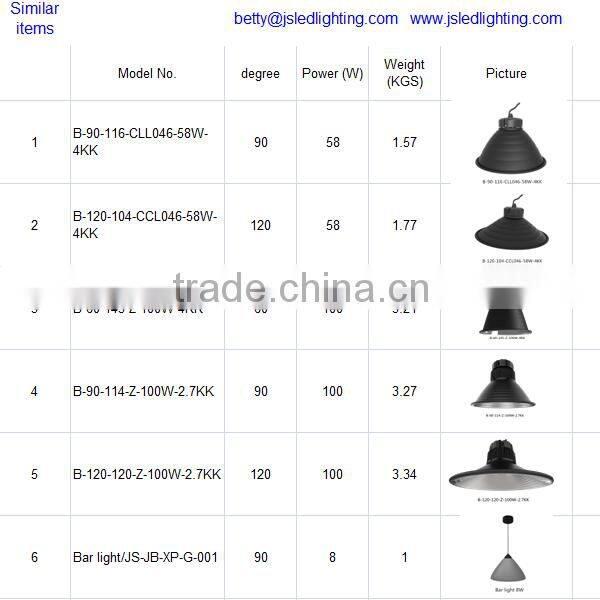

4   We also can provide other highbay light, please check the following:



IP66 Aluminum Lamp Body Material 100W LED highbay Lights

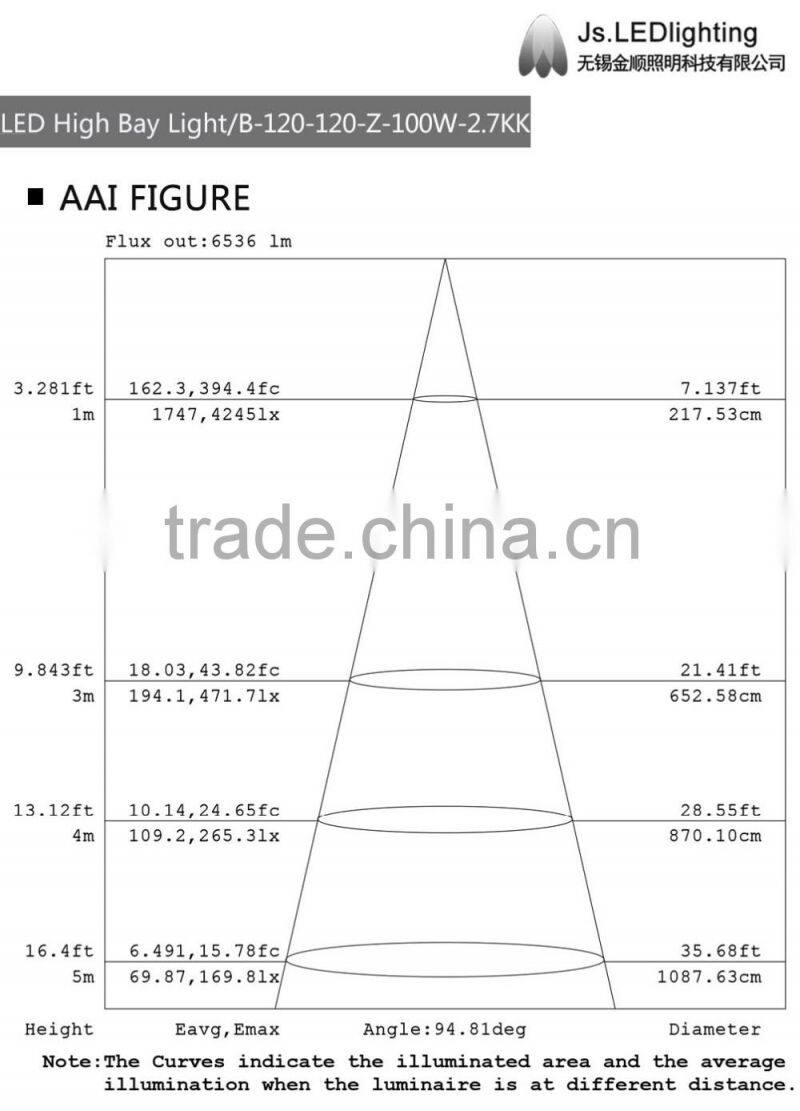

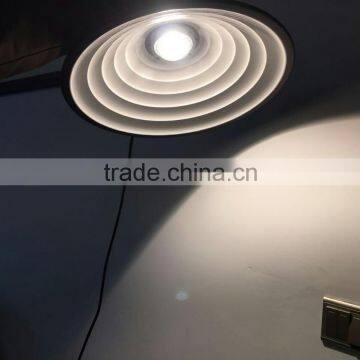

 5  Highbay light effect





 IP66 Aluminum Lamp Body Material 100W LED highbay LightsIP66 Aluminum Lamp Body Material 100W LED highbay Lights

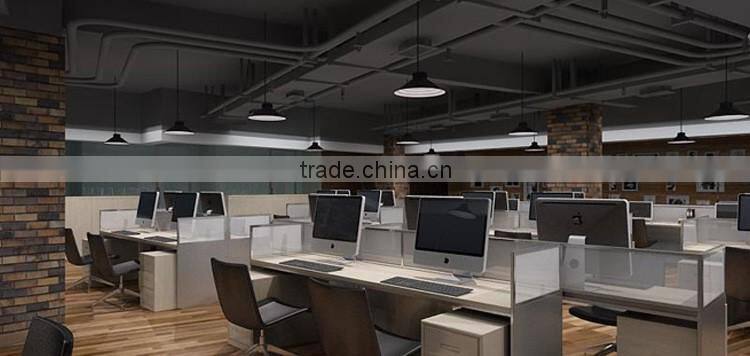

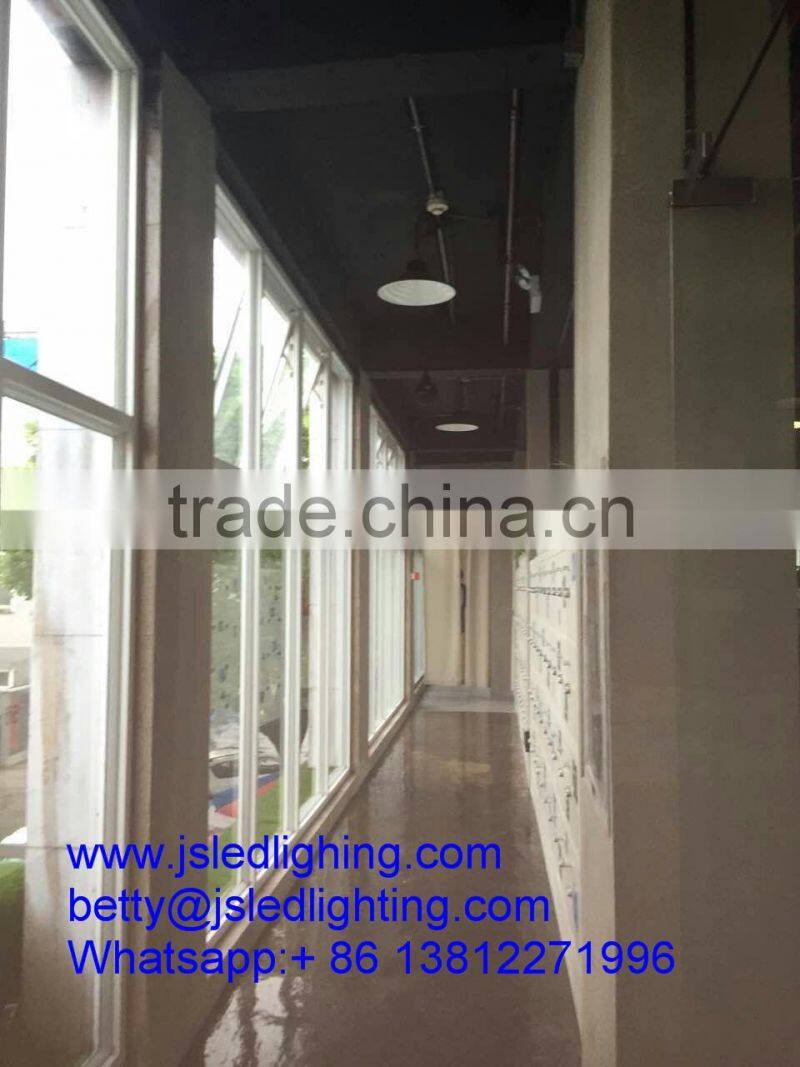

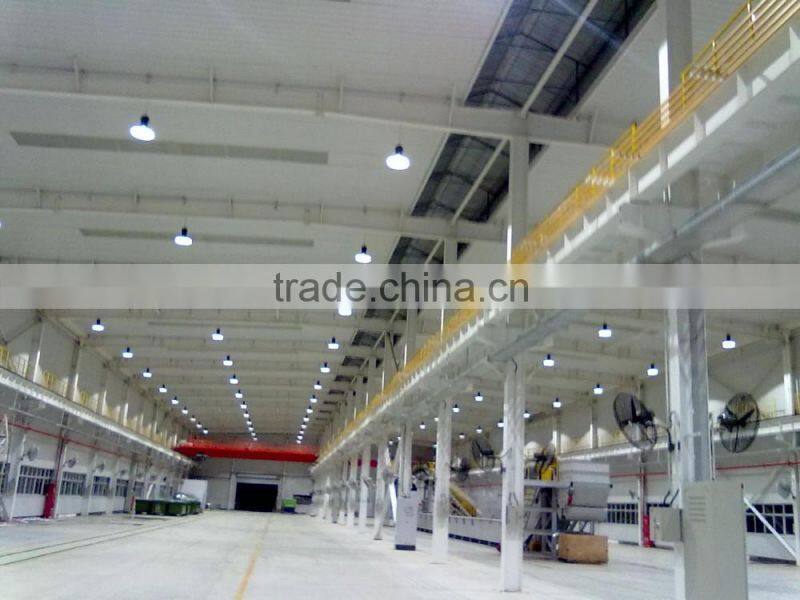

  6 Application: Jinshun LED highbay light widely used in office, warehouse, supermarket, station, gymnasium etc.



IP66 Aluminum Lamp Body Material 100W LED highbay LightsIP66 Aluminum Lamp Body Material 100W LED highbay Lights

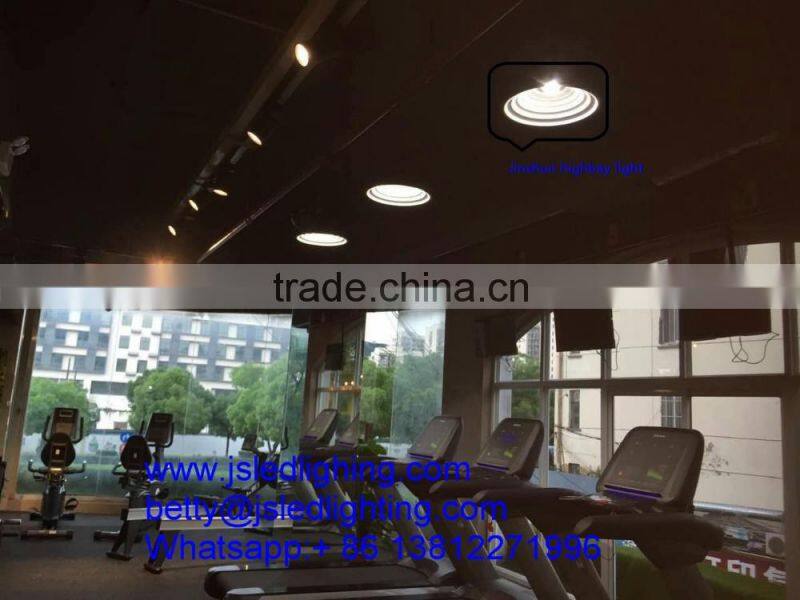

Jinshun highbay light in gymnasium





 IP66 Aluminum Lamp Body Material 100W LED highbay LightsIP66 Aluminum Lamp Body Material 100W LED highbay Lights





7 Packing: IP66 Aluminum Lamp Body Material 100W LED highbay Lights


Type: B-120-120-Z-100W-2.7KK
Packing 1pcs/ctn
Measurement 395*395*260mm
GW/NW 3.34/3.14KGS

          About the packing details for sizes, please contact with us.


Shiping: IP66 Aluminum Lamp Body Material 100W LED highbay Lights

Normally, the goods will be shipping by Sea, by air or by DHL according to customer's request.




1). Strong and professional package for safety transportation.

2). Clear label Item show what is product in the cartons, including watts, CCT, quantity,etc.





Guangtai services



IP66 Aluminum Lamp Body Material 100W LED highbay Lights





Guangtai certification: CE, ISO9001,ROHS



IP66 Aluminum Lamp Body Material 100W LED highbay Lights

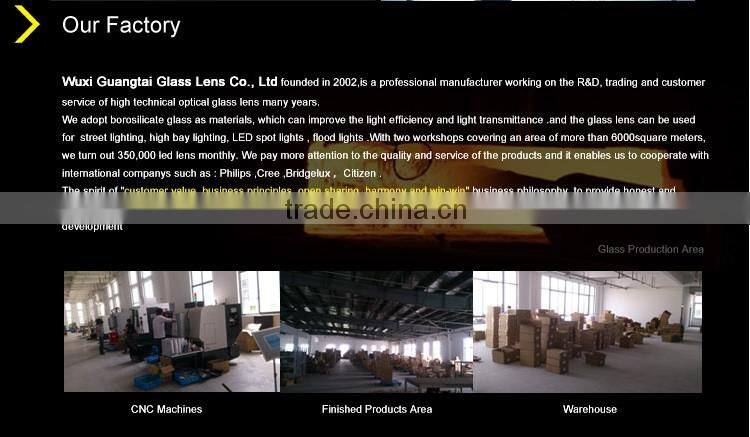

Guangtai company information



IP66 Aluminum Lamp Body Material 100W LED highbay Lights





FAQ



What are your main products?

Our main products are glass lens, silicone lens, LED street light, LED flood light, LED highbay light, LED light module and so on, OEM are welcome.



What is the location of your company?

Our company is located in Wuxi city, Jiangsu province in China, near the biggest sea ports of China Shanghai port, about 3 hours by car. If you would like to have a visit, welcome.



What is your MOQ?

Our MOQ is usually 500PCS, first trial order can be to be discussed.



What is the shipping port?

We ship the goods via Shanghai or Ningbo port.



What is your delivery time?

The time of delivery is about 10~20days after we receive the deposit.



What are your payment terms?

We accept 100% T/T in advance, or paypal,  Western Union, to be discussed.



What is your sample time?

Usually we will take 3~5 days to make the samples.





More details please contact with me!
