Help Center50W Led Streetlight Lens
Related Products
Specifications
1,beam angle 135*65degree2,transmittance 95%
3,heat-resistant -50--500degree
4,Lampshade Material: Toughened Glass
led glass lens for 30w-100w street lighting (GT-110NA)
1)material: optical glass(borosilicate),K9,BK7,B270
2) light transmittance: 95%( coated lens can up to 97%)
3) working temperature: -50--800 degree
4) reflective index: 1.474
5) suitable for 30w-100w integrated led chip
6) angle :70 x 135 degree
7) Size:

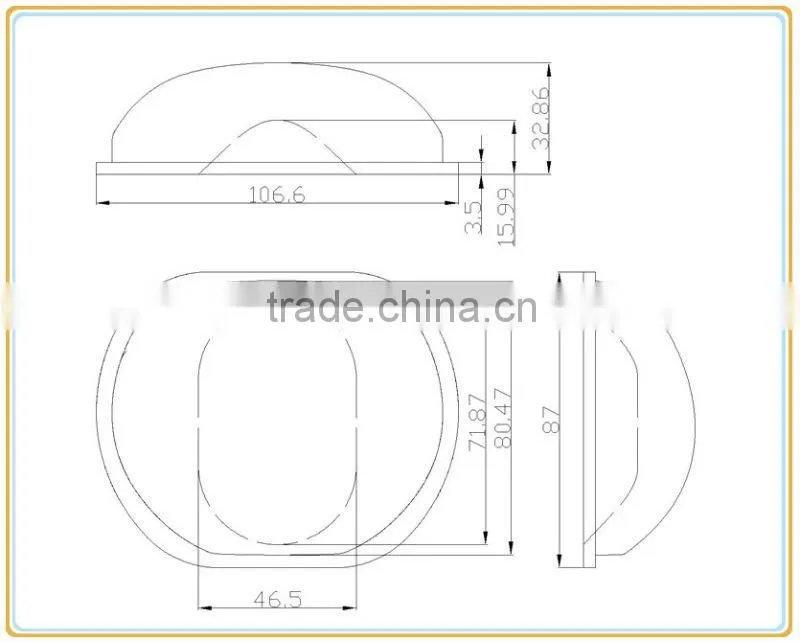

GT-110NA Size for reference

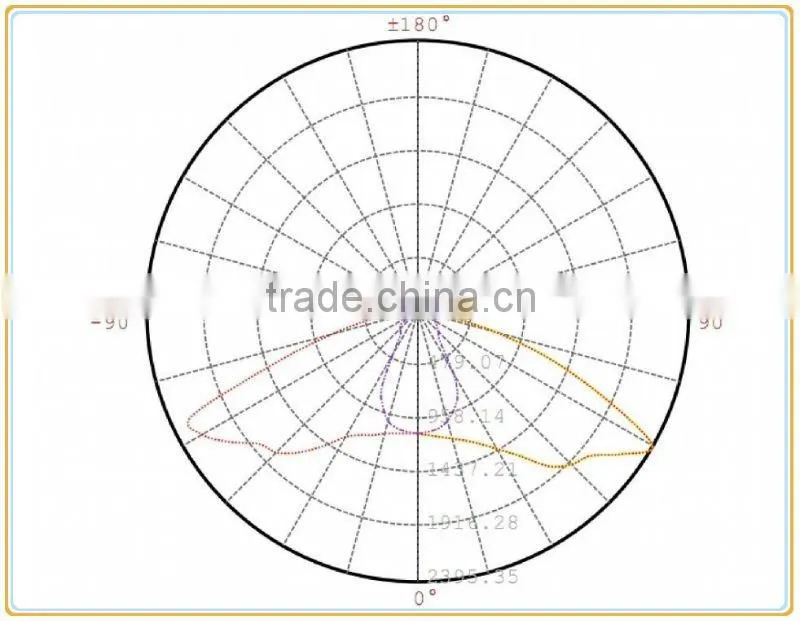

Distribution curve: bat wing shape
GT-110NA Size for reference
| outersize | Height | edge thickness | inner concave length | inner concave width |
| 107 x 87mm | 32mm | 3.5mm | 73MM | 48mm |

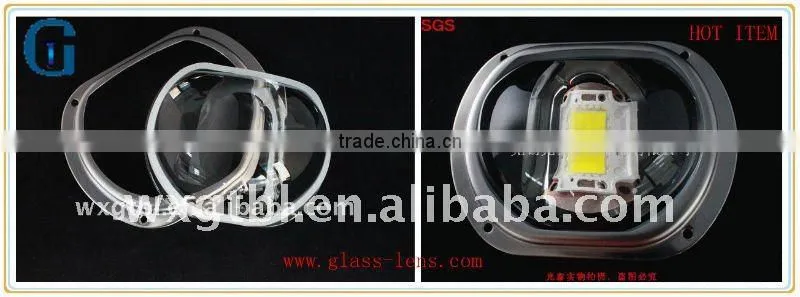

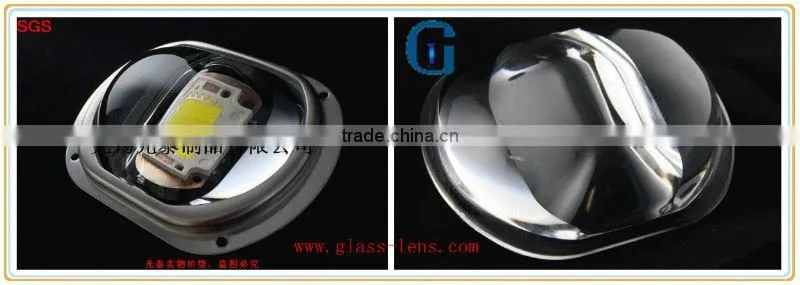

GT-110NA with silicon gasket and metal holder

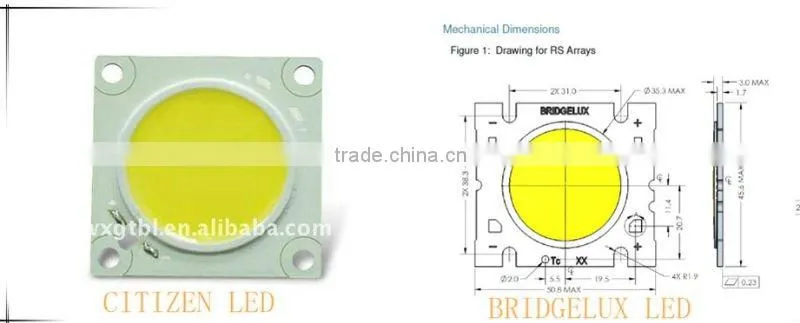

30w -100w integrated led chip(such as Bridgelux and Citizen Led)
8) main feature
a: can match up all kinds of different high power led (integrated led ),can be suitable for 30w led and above
b: adopt high precisy aspheric design and superior optical glass, strictly perform ROHS environmental standard
c: clear and transparent, no mould markd,no inside bubble and dirts
9) application range:

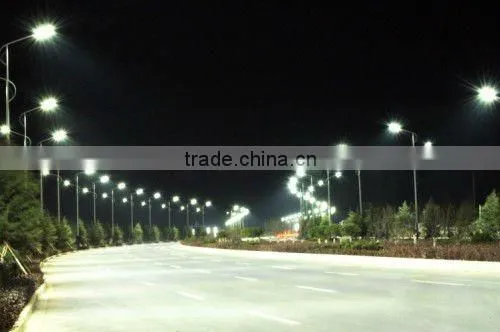

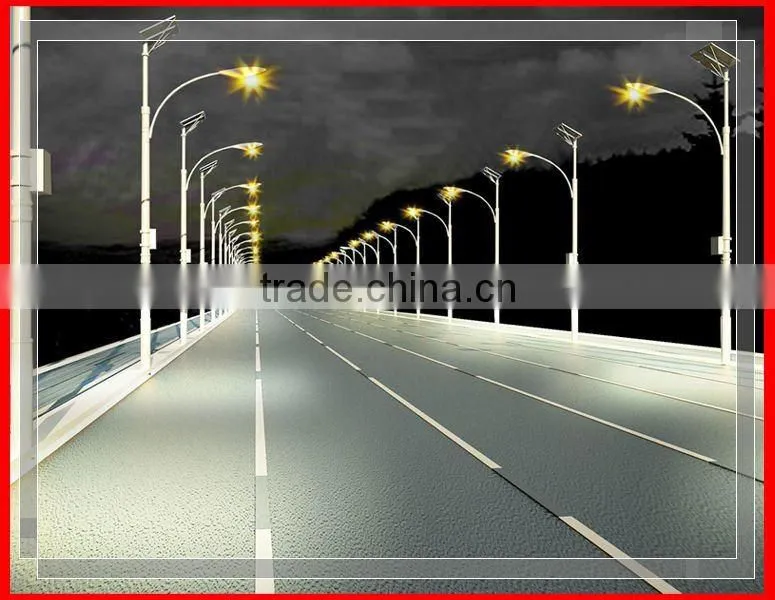

can be suitable for city street road, sidewalk, square, school, courtyard, highway and other outdoor led lighting

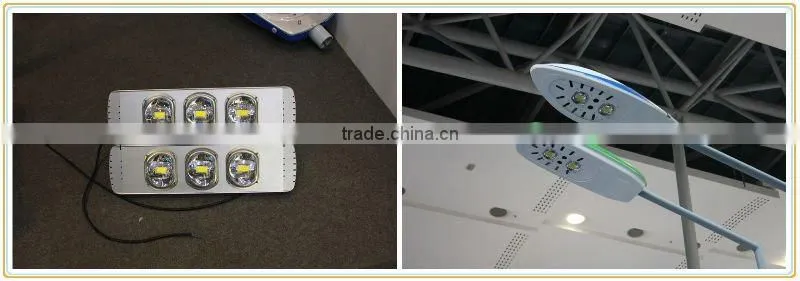

GT-110NA assembly and application
GT Advantages:
1) Made of borosilicate glass, high heat resistant: 500-600 centigrade
2) clear and transparent, no mould markd,no inside bubble and dirts
3) adopt high precision aspheric design and superior optical glass, strictly perform ROHS environmental standard
4) Customized lens available
GT lens company feature:
1) we can provide technical and professional optical system
2) we can supply the lens with advanced optical technology
3) we can offer lens group with different optical lens
4) we have studied out the reflector cup which will offer the well mixed facular and angle
5) we can provide optical modules and accessories.
GT Other products
if you have any other questions, send me inquiry or contact me directly, I will reply within 24 hours.
