Help CenterHigh Quality Temperature Double Push Button Rocker Switch for Electrical Products With Certificate 3 Position Switch
Related Products
-
16A 250V Twin Unit Rocker Switch With Light,rocker Switch Mini Switch On-off Switch for Electrical Products With CertificateNegotiableMOQ: 500 Pieces -
Single Pole Miniature Cateye Rocker Switch,high Current Switch/ T105 Hot Selling Round Rocker Switch Mini Switch On-off SwitchNegotiableMOQ: 1000 Pieces
-
High Quality Temperature 3 Position T125 Electrical Rocker Switch for Electrical Products With Certificate Enec SwitchNegotiableMOQ: 500 Pieces
-
Round With Light Coffee Pot Rocker Switch,automotive Electrical Rocker Switch,rocker Switch With LockUS$ 0.1 - 0.14MOQ: 1000 Pieces
-
Double Unit Rocker Switch,12v Illuminated Rocker Switch,On-off Illuminated Electrical Boat Round 2/3pin Rocker SwitchNegotiableMOQ: 500 Pieces
2p spst rocker switch t85 :
| Rating | 6 A 250V 10A 125VAC |
| The contact resistance | ≤ 50mΩ |
| Withstand Voltage | 1500V,AC/MIN |
| Insulation Resistance | ≥100mΩ |
| Dielectric intensity | ≥1500V AC/MIN |
| Temperature | -25~85.c |
| Mechanic life | ≥10000times |

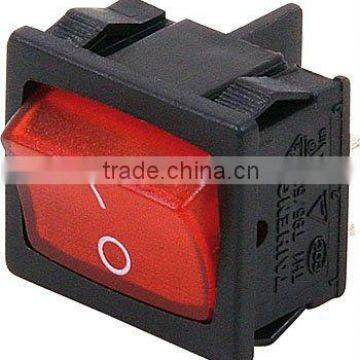

The rocker switches available in both illuminated and non-illuminated versions, are designed to snap into the panel. They are double pole double throw and work great in industrial, audio/visual and lighting ballast applications.
Rocker switch features:
Nylon frames and actuator(UL flame:94V-2)
Brass with sliver plated terminals
PC illuminated actuator,available with red,amber,and green colors
Snap-in mounting,easy install in panel

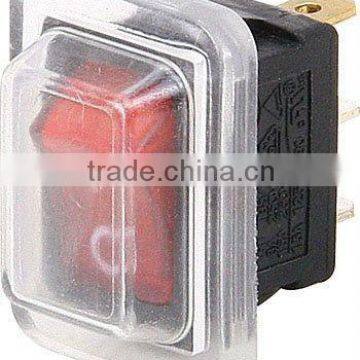

Waterproof cover is optional

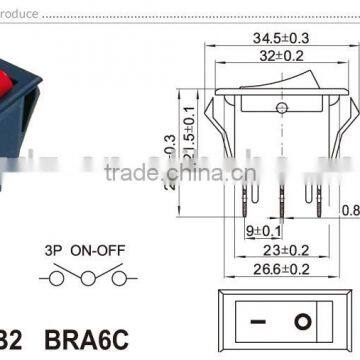

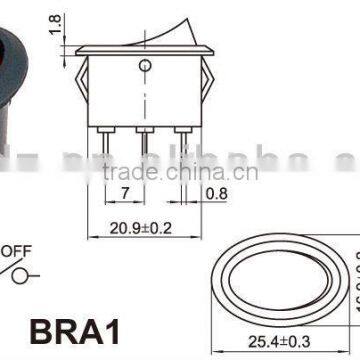

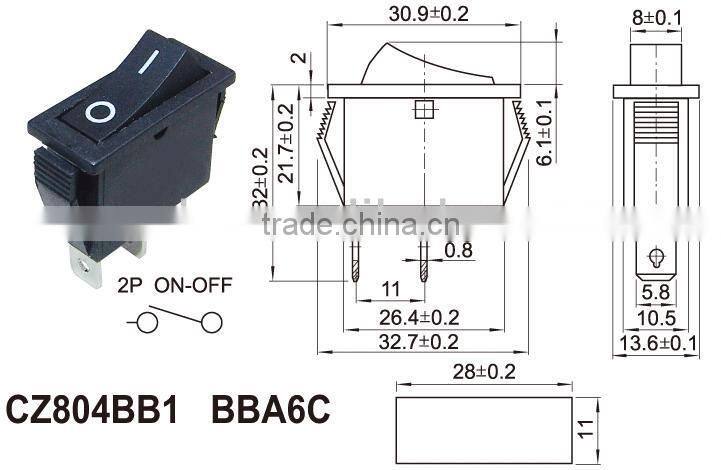

Rocker switch dimention:
About us :Yueqing Chuangzhan Electronics Co.,Ltd is a professional manufacture of rocker switch. We can offer OEM/ ODM sevices. We make the moulds and the moulded parts by ourselves to ensure the switch quality and reduce cost. We can supply with different standard rocker switch to meet different customers' demands.
With reliable quality assurance, prefect technical services and the best price, our products are sold well worldwide. With strong support from you, we can't stop the step of development and innovation. We bring in advanced equipment and technology in and out of China.
About rocker switch:The rocker switches available in both illuminated and non-illuminated versions, are designed to snap into the panel.
Application: Our switches are widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc.
About quality control: We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life.
About brand: We have our own brand "ZJCZ" , and also , we can design the brand for our clients.
About Certificate: our company has passed ISO9001: 2008, and the rocker switches have passed TUV,CE and have ROHS test reports , VDE and UL is in examing and verifying ~
