SPEC |
DETAILS |
| The contact resistance | ≤50mΩ |
Rating |
6A 250V AC/10A 125V AC |
Withstand Voltage |
1500V,AC/MIN |
Insulation Resistance |
≥100mΩ |
Dielectric intensity |
≥1500V AC/MIN |
Rated Load |
2/8A 250V AC |
Temperature |
-25~85.c |
Mechanical life |
>30, 000 cycles |
Electrical life |
>6, 000 cycles |
Safety standered approval |
UL, CE, VDE, ROHS |
| Panal size |
The rocker switches available in both illuminated and non-illuminated versions, are designed to snap into the panel. They are double pole double throw and work great in industrial, audio/visual and lighting ballast applications.
Rocker switch features:
Nylon frames and actuator(UL flame:94V-2)
Brass with sliver plated terminals
PC illuminated actuator,available with red,amber,and green colors
Snap-in mounting,easy install in panel
Waterproof cover is optional

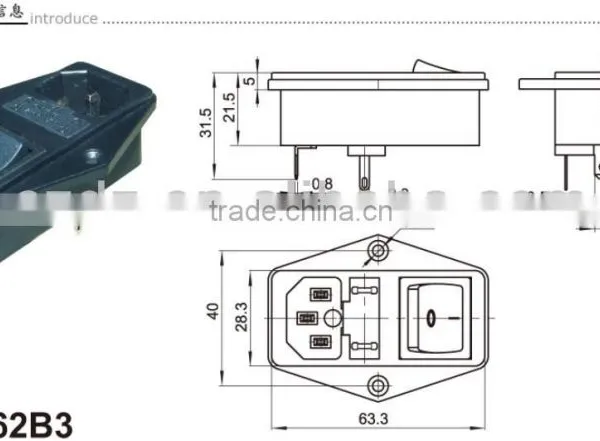

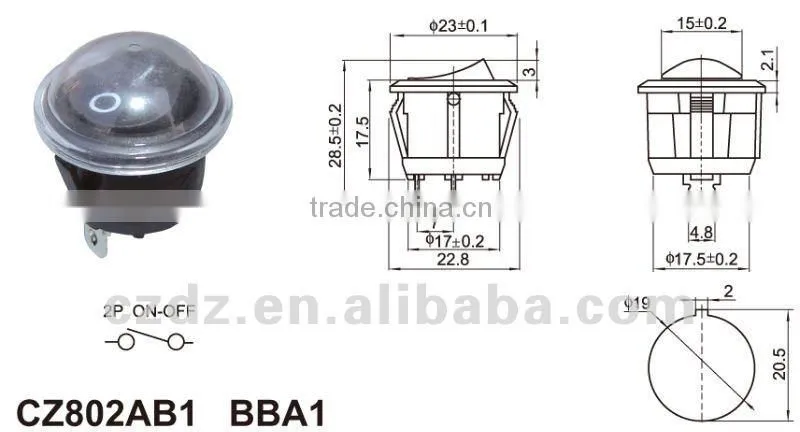

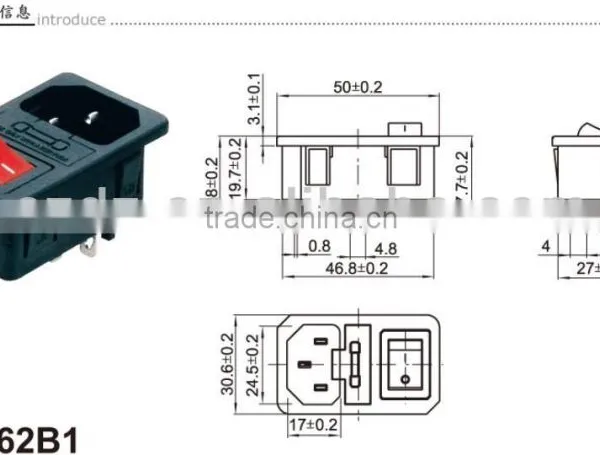

Rocker switch dimention:
