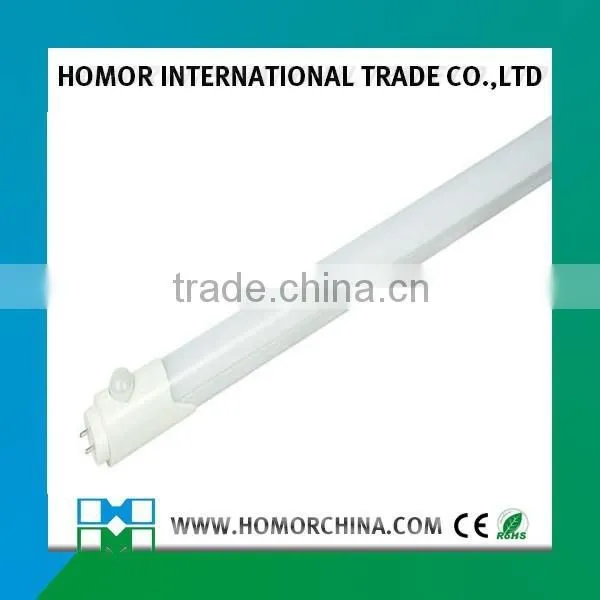

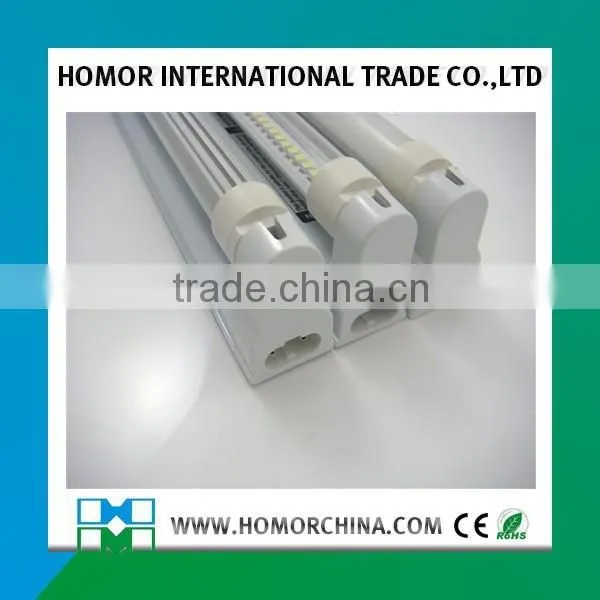

LED T8 Tube –infrared sensor series
Features:
LED: import high bright SMD2835 led chip
Power supply: constant current AC85-265V
Material: Aluminum housing, high transmittance pc cover and aluminum base PCB
Description: use the power supply design of human body infrared induction, people come th light, and walk the lamp dim percentage is adjustable. Meet the place of no resident, such as underground garage, energy saving rate of cover 90%, do more low-carbon energy.
Technical parameter
Model |
Length(mm) |
LEDS(PCS) |
Power(W) |
Volt(V) |
Lumens(M) |
CCT(K) |
CRI |
Replace CFL Tube(W) |
Life(H) |
T8IP0902 |
600 |
48 |
9 |
85-265 |
750-800 |
3000-6500 |
75 |
20 |
25000 |
T8IP1302 |
900 |
74 |
13 |
85-265 |
1100-1250 |
3000-6500 |
75 |
30 |
25000 |
T8IP1502 |
1200 |
96 |
18 |
85-265 |
1500-1700 |
3000-6500 |
75 |
40 |
25000 |
T8IP2102 |
1500 |
120 |
21 |
85-265 |
1750-1950 |
3000-6500 |
75 |
60 |
25000 |
Replace traditional tubes, the ballast and the scaffolds have the fail disconnect;
Be sure to ensure both ends must pick up one end is tubes washburn, end by zero line and no end also meet the and zero line;
Lamps installation, wiring must be in power;
Lamps installed after the wiring, again electrify test of shock;
Don’t light the lamps and lanterns, please first check whether the utility power wiring, become loose, is normal conduction.
Please don’t open without lamps and lanterns, electrical structural change, in order to prevent damage to the lamp in the source and lamps sealing, resulting from the loss is not in the list of warranty.

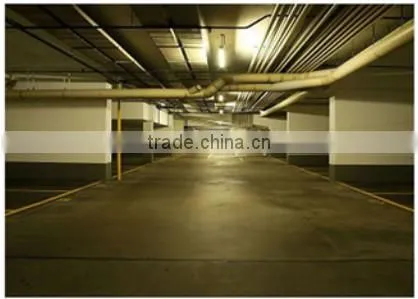

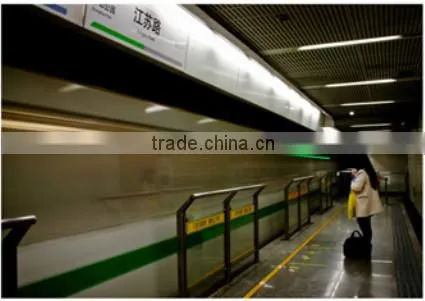

Application: replace T8 fluorescent tube , apply to underground parking garage, corridor, etc/
Technical parameter
