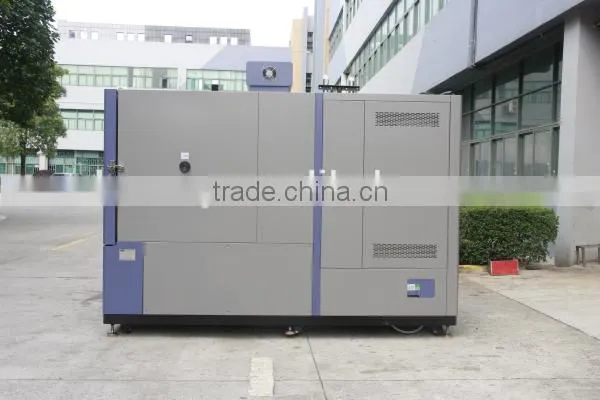

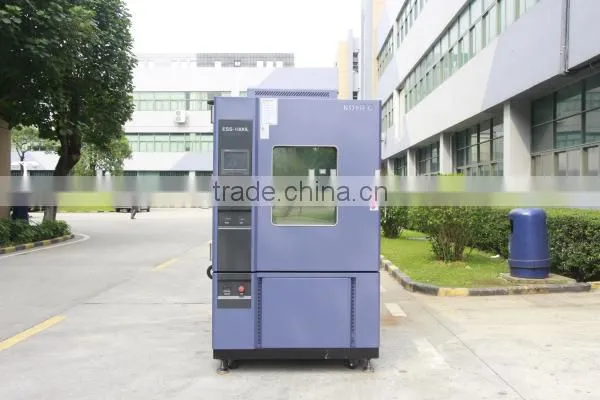

Large Working Volume Rapid-Rate Thermal Cycle Chamber
Thermal Cycle Chamber is a tool to reduce field failures, not an end to itself. Therefore, monitoring also provides a basis for assessing change in part selection, manufacturing processes, screen effectiveness, andresponding with appropriate action.
| Specifications | |||||||
| Model | ESS-SL | ||||||
| 225SL5 | 225SL10 | 408SL5 | 408SL10 | 1000SL5 | 1000SL10 | 1000SL15 | |
| Working Chamber Volume(L) | 225 | 408 | 1000 | ||||
| Temp Rate of Change( ℃/Min) | 5 | 10 | 5 | 10 | 5 | 10 | 15 |
| Performance | -70℃~+100℃ | ||||||
| Rapid Temp Change -55℃~+85℃ Full Linear Control | |||||||
| Humidity Constancy | ±0.5℃ | ||||||
| Temp Constancy | ±3.0℃ | ||||||
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated ) Stainless Steel | ||||||
| Interior Material | Stainless Steel Plate(SUS 304) | ||||||
| Insulation Material | Rigid Polyurethane Foam | ||||||
| Safety Devices | over pressure,over heat and over current protection for compressor,over temp. protection, | ||||||
| Compressor | Semi-Hermetic Compressor | ||||||
| Cooling Mode | Water Cooled | ||||||
| Control system | Balanced Temperature & Humidity Control System(BTC type) | ||||||
| Heater | Iron-chrome wire heater | ||||||
| Blower | Centrifugal Blower | ||||||
| Observation Window | Glass incorporating heat generator | ||||||
| Temp Sensor | Pt-100 | ||||||
| Controller | Touch screen programmable controller | ||||||
| Ambient Temp. | +5℃~+35℃ | ||||||
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire | ||||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||||
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. and Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Vibration Testing Machine
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
Standards Implemented and met
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
Machine Parts
Name: Bock Compressor
Brand: Bock
Original: Germany
Compressor rack, high efficiency low energy consumption, low noise;
Electronic components
Name: Electric cabinet
Brand: Schneider, DANFOSS, Omron, Panasonic
Original: Germany, France, Japan
Top brand electronics, with full range of protection include overheat of blower fan motor, earth leakage protection, load short circuit protection, over temperature protection, over pressure protection and so on.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visiting our factory is highly welcomed.
After-Sales Service
* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
