Home > Products > Environmental Test Chamber > Walk-in Temperature And Humidity Control Cabinet Room
Walk-in Temperature And Humidity Control Cabinet Room
- 0 per Month
Product Details
Place of Origin: | Guangdong, China | Brand Name: | KOMEG(high-low temperature test chamber) | Model Number: | KMH- |
Power: | Electronic | Usage: | Process Testing Machine |
Product Description

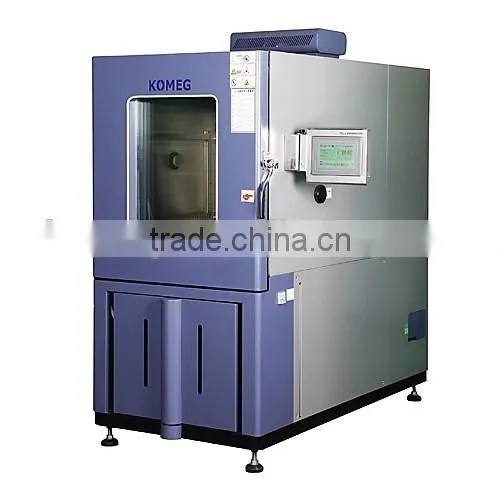

Walk-in Temperature And Humidity Control Cabinet Room
high-low temperature climatic test chamber
Test material heat, cold, dry resistance, humidity resistance.Suitable for electronics,
electrical appliances,communications, instrumentation, vehicles, plastic products, metal, food,
chemical, building materials, medical, aerospace and other products.
Environmental Temperature and Humidity Chamber/climate test chamber/machine/equipment | |||||||||||||||
Secifications ( at +20ºC room temp. Or+25ºC water temp with empty load) | |||||||||||||||
Model | KMH-R series | KMH-L series | KMH-S series | ||||||||||||
150R | 225R | 408R | 800R | 1000R | 150L | 225L | 408L | 800L | 1000L | 225S | 408S | 800S | 1000S | ||
Temp. range | -20ºC~150ºC | -40 ºC~+150ºC | -70ºC~+150ºC | ||||||||||||
Interior sizel | W(mm) | 600 | 700 | 700 | 1000 | 1000 | 600 | 700 | 700 | 1000 | 1000 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | 600 | 700 | 750 | 1000 | 1000 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | 460 | 480 | 800 | 800 | 1000 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 | 880 | 980 | 980 | 1280 | 1280 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | 1730 | 1890 | 1940 | 2160 | 2160 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | 1400 | 1460 | 1740 | 1750 | 1950 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | 7.5 | 7.5 | 8.5 | 14.5 | 14.5 | 9.5 | 10.6 | 18.5 | 18.5 | |
Weight(KG) | 240 | 280 | 400 | 500 | 580 | 250 | 300 | 420 | 530 | 600 | 330 | 450 | 550 | 650 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ±3.0%R.H | ±5.0%R.H | ±3.0%R.H | ±5.0%R.H | |||||||||
Heat up time | -20ºC~+100ºC,within 35 min | -40ºC~+100ºC, within 45 min | -70ºC~+100ºC,within 60 min | ||||||||||||
Pull down time | +20ºC~-20ºC, within 45 min | +20ºC~-40ºC , within 60 min | +20ºC~-70ºC,within 80 min | ||||||||||||
Standard accessories | Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m | ||||||||||||||
Safety device (standard) | No fuse breaker, over pressureover heat and over current protection for compressor, | ||||||||||||||
Over temp. protect, over load protect of blower, dry heat protection | |||||||||||||||
Control System | Balanced Temperature & Humidity Control System | ||||||||||||||
Refrigeration system | Air Cooled (Water Cooled Type is option) | ||||||||||||||
Hermetic compressor,Single stage refrigeration system | |||||||||||||||
CFC-Free refrigerant(HFC-507/HFC-23) | |||||||||||||||
Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | ||||||||||||||
Operation model :Program or fix point running | |||||||||||||||
Memory capacity :120programs,1200steps, | |||||||||||||||
All repeat 999 cycles, part repeat 99 cycles | |||||||||||||||
Humidity Range | 20~98%R.H | ||||||||||||||
Temp. constancy | ±0.5ºC | ||||||||||||||
Humidity constancy | ±2.5%R.H | ||||||||||||||
Temp. uniformity | ±2.0ºC | ||||||||||||||
Interior material | Stainless Steel Plate(SUS 304) | ||||||||||||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||||||||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||||||||||||
Ambient Temp. | +5ºC~+35ºC | ||||||||||||||
Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | ||||||||||||||
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
high-low temperature test chamber:
*.High-texture appearance, the body adopted an arc shape, surface matte stripes processing, and flat-handle, easy to operate, safe and reliable.
*.Rectangular multi-layer glass View window, the use of guinea pigs observed in the test window witt anti-sweat heaters device prevents water gas condensate ,Knot, water droplets, PL fluorescent lamps to keep the inside lighting.
*.Door bunk isolated airtight packing, can be effectively isolated from the internal temperature of the leak
*.With external water supply system, convenient to supplement the cylinder water supply, and automatic recovery using.
*.Compressor cycling system used France“Tecumseh”brand which can effectively remove condenser pipe
and between capillary Lubricating oil and whole series adopt environmental protection refrigerant
(R23, R404, R507)
*.Controller uses the imported LED display screen, can display measured values and setting time
*.Controller with multi-segment program editor and temperature and humidity can be fast (OUICK) or slope (SLOP) controlled.
*.Built-in mobile wheels allow easy movement and placed and has a strong positioning screw position
What brand of the parts we use?
Compressor
Name: Bock Compressor
Brand: Bock(GEA)
Original: Germany
KOMEG use imported compressor from Germany with high efficiency low energy consumption, low noise.
Electronic components 1
Name: Electric cabinet
Brand: Schneider, DANFOSS, Omron, Panasonic
Original: GGermany, France, Japan
KOMEG use top brand electronics, with full range of protection include overheat of blower fan motor, earth leakage protection, load short circuit protection, over temperature protection, over pressure protection and so on.
Electronic components 2
Name: Oil seperator
Brand: EMERSON
Original: USA
Control System
Name: Controller
Brand: KOMEG/SAMWON
Original: China/South Korea
It can control temperature and humdity constantly such as thermo-hygrostat mounted on, termperature, humidity, respectively, by setting the PID values for each interval can be precisely controlled and easy control via PC or mobile is possible.
Our other main products:
climatic test chambers/ high-low temperature test chamber
2-zone thermal shock test chambers
3-zone thermal shock test chamber
walk-in test chambers
drive-in test chambers
burn-in rooms
aging test chambers
drying ovens
salt spray test chamers
ESS rapid temperature changer chamber
vibration test chamber
medical laboratory
