Specifications
BGF Economy Model Drying Laminating MachineLaminating Machine
laminator machine
film laminating machine
Laminating & coating Machines

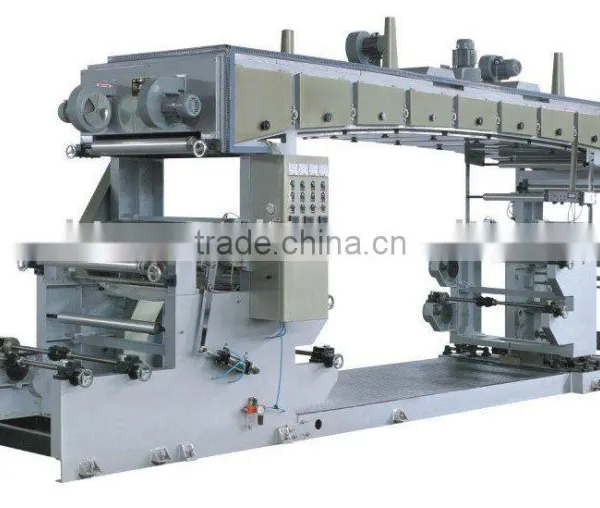

BGF Model Series Dry Laminating Machines
Laminating Machine
laminator machine
film laminating machine
Machines in this series are suitable for composition of all kinds of materials in packing industry such as plastic-plastic, paper-plastic and aluminum-plastic compositions.
1. Double frequency conversing synchronic timing is adopted for entry port of main machine, making more stable operation.
2. Two means of glue applying, cobwebbing roll sizing and rubber roll gluing.
3. Oil warming system for composite reel, constant temperature control
4. Double reeling and double unreeling, tension magnetic powder for reeling and unreeling, photoelectric error correction for unreeling.
5. 4-sect heating in drying tunnel, possible to control temp erature by segments, initiative guiding roll in box.
Laminating & coating Machines
Main Technical Variables:
Model |
BGF-600 |
BGF-800 |
BFG-1000 |
Width of laminating |
600mm |
800mm |
1000mm |
Laminating stratification |
2layer |
2layer |
2layer |
Diameter of Roll material |
10-70m/min |
10-70m/min |
10-70m/min |
Oven temperate |
110 |
110 |
110 |
|
|
|
|
Total Power |
36kw |
44kw |
44kw |
Weight |
4000kg |
5400kg |
5400kg |
overall Dimension |
7500×1700×2700mm |
7500×2100×2700mm |
7500×2100×2700mm |
