Excellence Quality DFPE-1000-2500 Series PE Air Bubble Film Making Machine
- 200 Set / Sets per Month
- FOB NINGBO
- T/T Credit Card
You May Like
-
Used widely DFPE-1000-2500 Series PE Air Bubble Film Making Machine
-
DFPE-1000-2500 Series PE Air Bubble Film Extruder Making Machine
-
Automatic DFPE-1000-2500 Series PE Air Bubble Film Making Machine
-
multi-layer air bubble film making machine
-
2m 7 layer air bubble film making machine price
-
2m 7 layer air bubble film extruder
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Automatic Grade | Full Automatic | Place of Origin | Zhejiang, China | |
| Brand Name | Guotai | Model Number | DFPE-1000-2500 | |
| Voltage | 3 phrase 380V ,50HZ | Power(W) | 58KW | |
| Dimension(L*W*H) | 10x4m | Weight | 5T | |
| Certification | CE,ISO9001,GSG | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
The finished bubble film has good cushioning effect, shock resistance and heat-sealing performance, widely used in packing.Product Name: DFPE-1000-2500 Series PE Air Bubble Film Making Machine
Features:
1. Robust and reliable.
2. This model can also be used for films with Two layer film machine.
3. Suitable for a wide spectrum of materials, including LDPE, LLDPE, and recycled PE.
4. Can produce films with various bubble sizes from ø 6- ø 32, by changing the roller.
5. Index revolving winder is easy to operate.
6. Variable speed drive can greatly reduce energy consumption.
Technical Parameter:
Model | DFPE-1000 | DFPE-1200 | DFPE-1500 |
Screw Diameter | Φ60mm | Φ60mm | Φ65mm |
L/D | 30:1 | 30:1 | 30:1 |
Main motor | 15KW | 15KW | 18.5KW |
Gear box | 146 hard tooth gear box | 146 hard tooth gear box | 173 hard tooth gear box |
Film width | 1000mm | 1200mm | 1500mm |
Roller width | 1030mm | 1230mm | 1530mm |
T-die size | 1030mm | 1230mm | 1530mm |
T-die material | Mould steel material | Mould steel material | Mould steel material |
Output | 50kg/h | 60kg/h | 70kg/h |
Total Power | 48kw | 58kw | 68kw |
Bubble cylinder size | 10×4mm or 6×3mm | 10×4mm or 6×3mm | 10×4mm or 6×3mm |

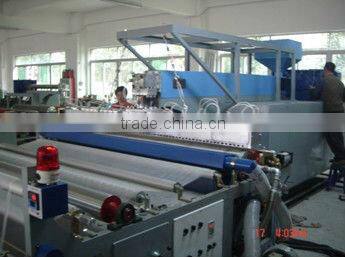

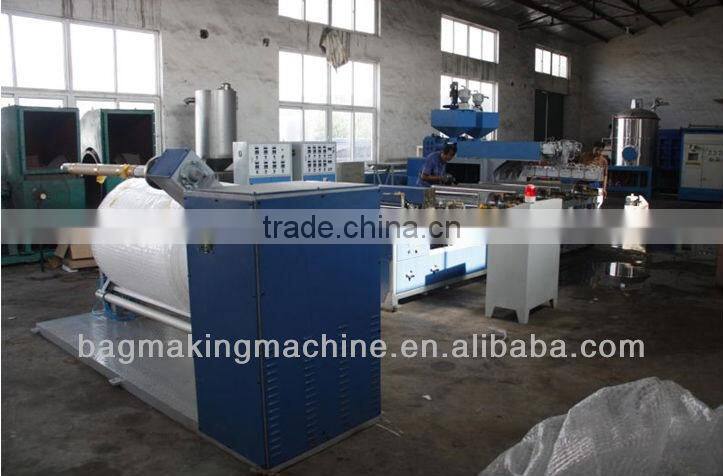

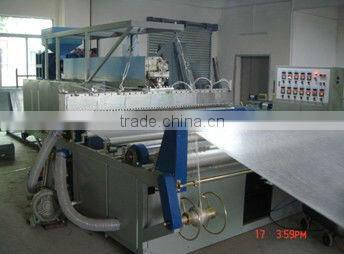

Machine in workshop:

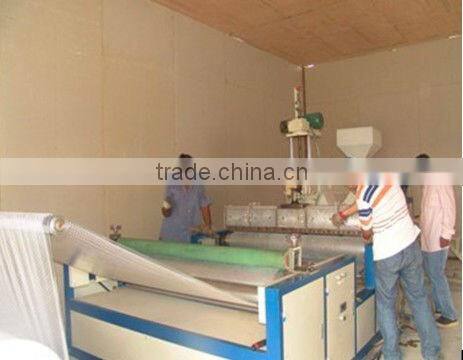

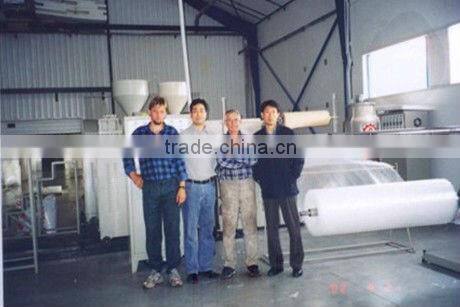

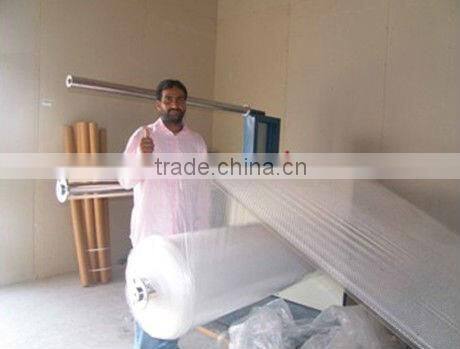

Machine exported

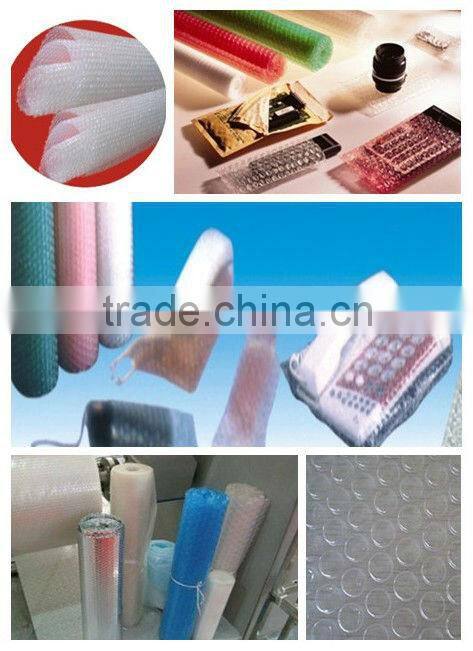

Finished Product Photoes
Machine Packing Steps:

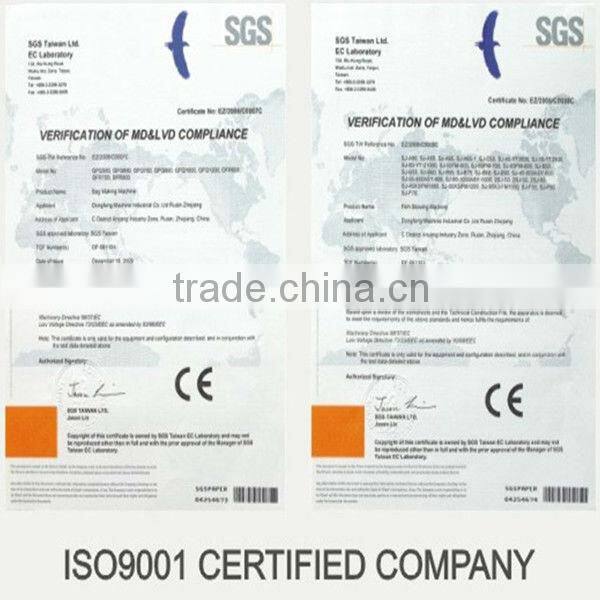

Our Certfication:
