Specifications
The finished bubble film has good cushioning effect, shock resistance and heat-sealing performance, widely used in packing.Product Name: DFPE-1000-2500 Series PE Air Bubble Film Making Machine
Features:
1. Robust and reliable.
2. This model can also be used for films with Two layer film machine.
3. Suitable for a wide spectrum of materials, including LDPE, LLDPE, and recycled PE.
4. Can produce films with various bubble sizes from ø 6- ø 32, by changing the roller.
5. Index revolving winder is easy to operate.
6. Variable speed drive can greatly reduce energy consumption.
Technical Parameter:
Model | DFPE-1000 | DFPE-1200 | DFPE-1500 |
Screw Diameter | Φ60mm | Φ60mm | Φ65mm |
L/D | 30:1 | 30:1 | 30:1 |
Main motor | 15KW | 15KW | 18.5KW |
Gear box | 146 hard tooth gear box | 146 hard tooth gear box | 173 hard tooth gear box |
Film width | 1000mm | 1200mm | 1500mm |
Roller width | 1030mm | 1230mm | 1530mm |
T-die size | 1030mm | 1230mm | 1530mm |
T-die material | Mould steel material | Mould steel material | Mould steel material |
Output | 50kg/h | 60kg/h | 70kg/h |
Total Power | 48kw | 58kw | 68kw |
Bubble cylinder size | 10×4mm or 6×3mm | 10×4mm or 6×3mm | 10×4mm or 6×3mm |

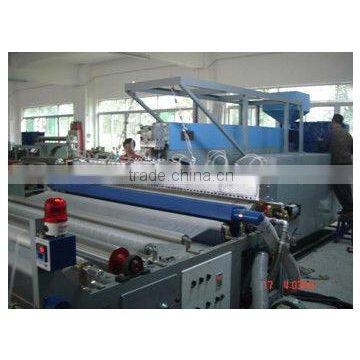

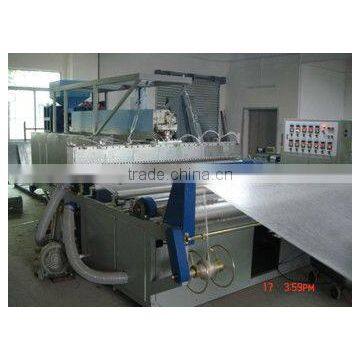

Machine in workshop:
Machine exported

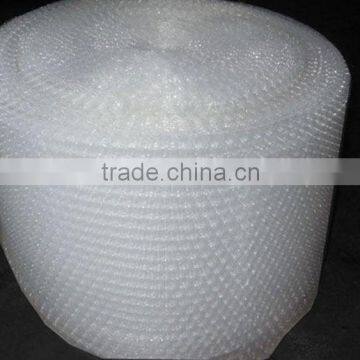

Finished Product Photoes
Machine Packing Steps:
Our Certfication:
