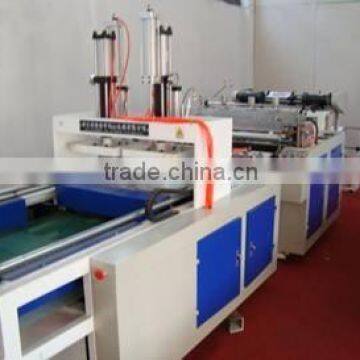

Plastic Bag Making Machine

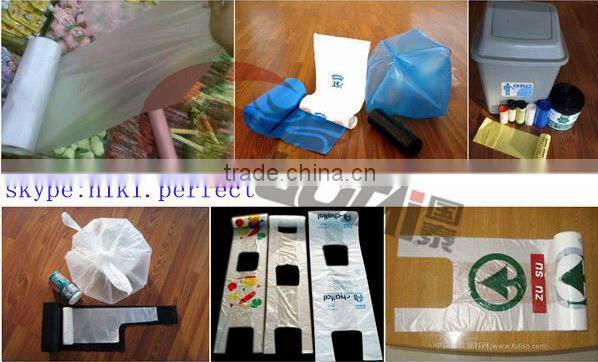

This machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double servostep) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.
Main Technical Variables:
| Model | DFHQ-350X2 | DFHQ-450X2 |
| Max. Bag-making width | 300mmX2 | 400mmX2 |
| Max.Bag-making length | 650mm | 650mm |
| Bag-making thickness | 0.015-0.035mm | 0.015-0.035mm |
| Bag-making speed | 140-200pcs/minX2 | 140-200pcs/minX2 |
| Air pressure | 5kg/cm2 | 5kg/cm2 |
| Total Power | 7kw | 9kw |
| Weight of machine | 1400kg | 1600kg |
| Overall dimensions | 6000X1400X1600mm(L X W X H) | 6000X1400X1600mm(L X W X H) |
More type bag making machine
Hot sealing and hot cutting bag making machine without the automatic punching for T-shirt (double photocell or single photocell)
bag making machine with automatic punching for T-shirt bag
GTHQ Series Servo High speed bag making machin
