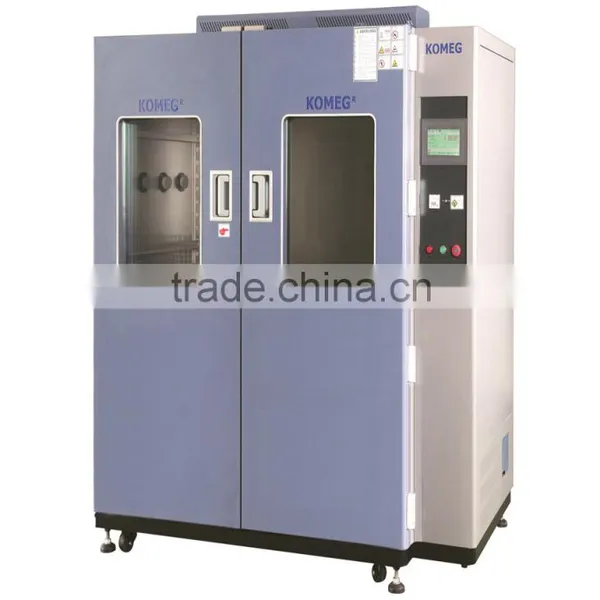

Imported Accessories Walk-In Stability Chamber tailor-designed to meet various requirements and specifications
Programmable Temperature Humidity Test Chamber ( climatic/ climate/ environment/environmental test chambers) simulate the effects that a range of temperature and humidity conditions have on a product or material, for example telecommunications equipment or photovoltaic solar panels that are exposed to outdoor temperature and humidity conditions. They have applications in industries as disparate as food science, semiconductors, and military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field. Climate test chambers come in a variety of sizes, from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large batches of product simultaneously. Temperature ranges from -70° C to 180° C and relative humidity ranges between 20% and 98% are available. A climate test chamber can also be used when constant climate conditions (temperature and/or humidity) are needed for product testing.
| Environmental Temperature and Humidity Chamber | |||||||||||||||
| Secifications ( at +20ºC room temp. Or+25ºC water temp with empty load) | |||||||||||||||
| Model | KMH-R series | KMH-L series | KMH-S series | ||||||||||||
| 150R | 225R | 408R | 800R | 1000R | 150L | 225L | 408L | 800L | 1000L | 225S | 408S | 800S | 1000S | ||
| Temp. range | -20ºC~150ºC | -40 ºC~+150ºC | -70ºC~+150ºC | ||||||||||||
| Interior sizel | W(mm) | 600 | 700 | 700 | 1000 | 1000 | 600 | 700 | 700 | 1000 | 1000 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | 600 | 700 | 750 | 1000 | 1000 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | 460 | 480 | 800 | 800 | 1000 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 | 880 | 980 | 980 | 1280 | 1280 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | 1730 | 1890 | 1940 | 2160 | 2160 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | 1400 | 1460 | 1740 | 1750 | 1950 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | 7.5 | 7.5 | 8.5 | 14.5 | 14.5 | 9.5 | 10.6 | 18.5 | 18.5 | |
| Weight(KG) | 240 | 280 | 400 | 500 | 580 | 250 | 300 | 420 | 530 | 600 | 330 | 450 | 550 | 650 | |
| Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ±3.0%R.H | ±5.0%R.H | ±3.0%R.H | ±5.0%R.H | |||||||||
| Heat up time | -20ºC~+100ºC,within 35 min | -40ºC~+100ºC, within 45 min | -70ºC~+100ºC,within 60 min | ||||||||||||
| Pull down time | +20ºC~-20ºC, within 45 min | +20ºC~-40ºC , within 60 min | +20ºC~-70ºC,within 80 min | ||||||||||||
| Standard accessories | Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m | ||||||||||||||
| Safety device (standard) | No fuse breaker, over pressureover heat and over current protection for compressor, | ||||||||||||||
| Over temp. protect, over load protect of blower, dry heat protection | |||||||||||||||
| Control System | Balanced Temperature & Humidity Control System | ||||||||||||||
| Refrigeration system | Air Cooled (Water Cooled Type is option) | ||||||||||||||
| Hermetic compressor,Single stage refrigeration system | |||||||||||||||
| CFC-Free refrigerant(HFC-507/HFC-23) | |||||||||||||||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | ||||||||||||||
| Operation model :Program or fix point running | |||||||||||||||
| Memory capacity :120programs,1200steps, | |||||||||||||||
| All repeat 999 cycles, part repeat 99 cycles | |||||||||||||||
| Humidity Range | 20~98%R.H | ||||||||||||||
| Temp. constancy | ±0.5ºC | ||||||||||||||
| Humidity constancy | ±2.5%R.H | ||||||||||||||
| Temp. uniformity | ±2.0ºC | ||||||||||||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||||||||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||||||||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||||||||||||
| Ambient Temp. | +5ºC~+35ºC | ||||||||||||||
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | ||||||||||||||
|
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||||||||||||
1) The ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range
2)Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 180 °C and 10% to 98% RH.
3) Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 180 °C with humidity
Climatic thermal shock test chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.
After-Sales Service
* If you face any problems in future during testing process, we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video, English operation muanual and video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Why Choose KOMEG?
Over 26 Years' Experience
Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.
Welcome to visit
Better Idea, Design and Quality
We strive for continuous innovation, releasing no less than five new designs each year. Our strong R&D team and skilled workers is the key to our success. No matter it is standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more when working with us. And to ensure your specific test standards are met, the key components and parts we are using are imported famous brands. That's why SGS, Konica Minolta, Senko, Midea, TCL and Huawei are among our long-term clients.
Establish a cultural KOMEG, Build a century brand.
Quality conscious enterprise for quality conscious people.
We'd rather explain for the price than apologize for the Quality life long
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
