Carbon Electrode Paste/ Carbon Electrode Paste for Calcium Carbide/ Carbon Electrode Paste for Ferroalloy

Specifications

carbon paste electrode/carbon electrode paste/carbon paste electrode/electrode paste
1.ASH 5%-11%
2.F.C 82%
3.Stable quality



Carbon Electrode Paste





1.Carbon Electrode Paste is essentially a mix of Electrically Calcined Anthracite (ECA) or Calcined Petroleum Coke (CPC) with Coal Tar Pitch,



2. Carbon Electrode Paste is a self-baking electrode used in closed electric smelting furnace as continuous self-baking electrode to produce calcium carbide, and ferroalloy.Electrode Paste is added to the top of the electrode column in either cylindrical or briquette form. As the paste moves down the electrode column the temperature increase causes the paste to melt and subsequently bake forming a block of electrically conductive carbon.During the furnace operation, electrode paste acts as current conductor.



We can suppy the following types





Specification/Item	1	2	3	4	5	6
Ash (max)	4.0%	5.0%	6.0%	7.0%	9.0%	11.0%
VM	12.0%-15.5%	12.0%-15.5%	12.0%-15.5%	9.5%-13.5%	11.5%-15.5%	11.5%-15.5%
Compress Strength(Mpa Max)	18.0	17.0	15.7	19.6	19.6	19.6
Specific Resistance(μΩm  Max)	65	68	75	80	90	90
Bulk Density(G/CM3 Min)	1.38	1.38	1.38	1.38	1.38	1.38
Plasticity(%)	5-20	5-20	5-20	5-30	15-40	15-40



 About us





Lianyungang Jinli Carbon Co., Ltd. is a manufacturer of Artificial Graphite Scraps, Electrode paste, Graphitized Petroleum Coke, and so on, with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in metallurgical industry and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

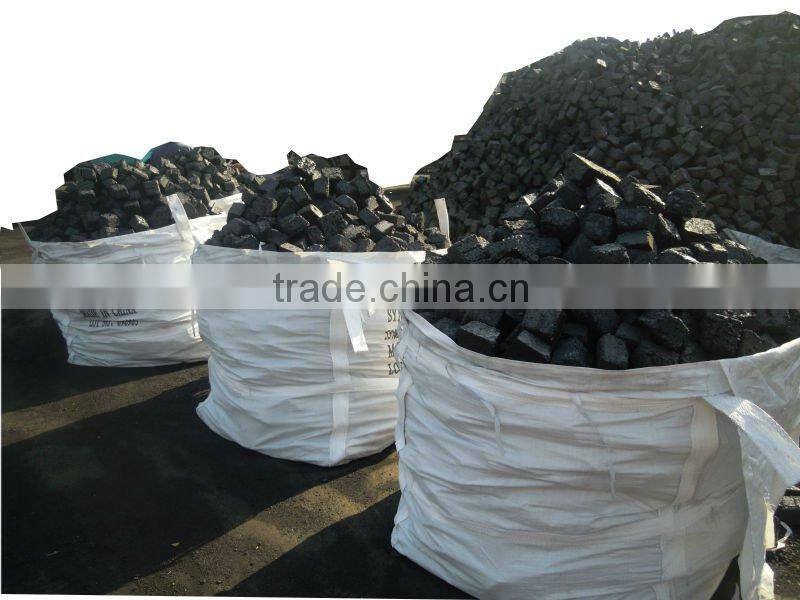

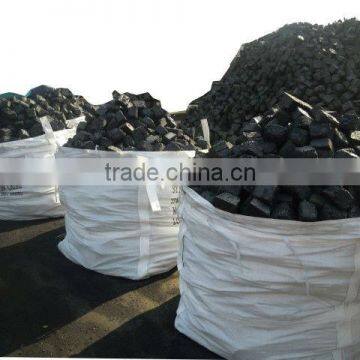

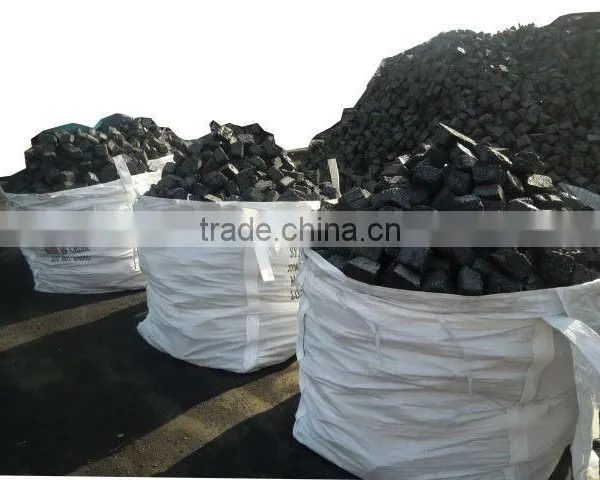

Package
