Home > Lights & Lighting > LED Encapsulation Series > SMD LED > 280nm 310nm Ceramics Package 5050 Smd uv Led 365nm

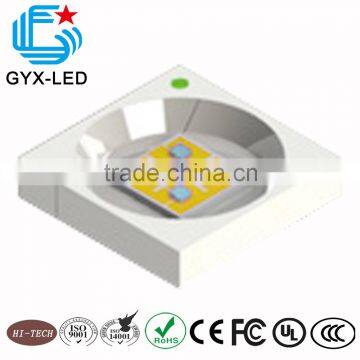

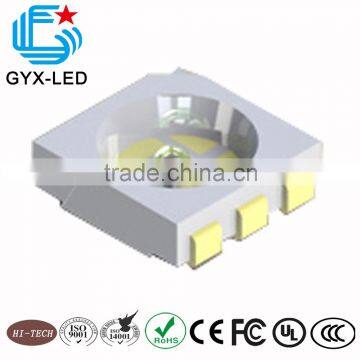

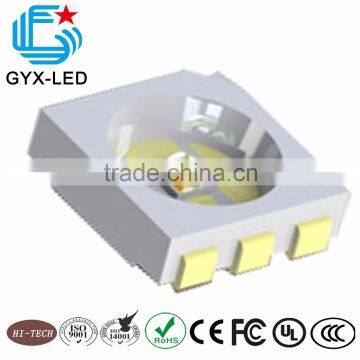

280nm 310nm Ceramics Package 5050 Smd uv Led 365nm

280nm 310nm Ceramics Package 5050 Smd uv Led 365nm thumbnail-3

280nm 310nm Ceramics Package 5050 Smd uv Led 365nm thumbnail-4

280nm 310nm Ceramics Package 5050 Smd uv Led 365nm thumbnail-5

280nm 310nm Ceramics Package 5050 Smd uv Led 365nm thumbnail-6

280nm 310nm Ceramics Package 5050 Smd uv Led 365nm photo-1

280nm 310nm Ceramics Package 5050 Smd uv Led 365nm photo-2

280nm 310nm Ceramics Package 5050 Smd uv Led 365nm photo-3

280nm 310nm Ceramics Package 5050 Smd uv Led 365nm photo-4

280nm 310nm Ceramics Package 5050 Smd uv Led 365nm photo-5

280nm 310nm Ceramics Package 5050 Smd uv Led 365nm photo-6

US$ 1.5 - 6.5 MOQ: 10000 Pieces

Key Specifications

Get Latest Price

Model Number:

GYX-SD-K5050UV-02

Chip Material:

AlGaInP

Emitting Color:

Other, UV

Contact Supplier Request Quote Chat Now

Shenzhen GYX Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number GYX-SD-K5050UV-02

Chip Material AlGaInP

Emitting Color Other, UV

Luminous Intensity 400-3200mcd

Luminous Flux(lm) 75

Optical Attenuation(%) 1

Power Other, 0.5-3w

Power Dissipation 75

Color Rendering Index(Ra) 70

Color Temperature 365nm

Operating Temperature(℃) -40, 85

Storage Temperature(℃) -40, 85

Place of Origin Guangdong, China

Brand Name GYX

Certification CE

Hot sale Ceramics package 5050 smd uv led 365nm

Product Details

Model	GYX-SD-5050UVC-01	GYX-SD-5050UVC-02	GYX-SD-5050UVC-03
Wavelength(nm)	265	280	310
Voltage Range(V)	5.5-7.5	5-7.5	4.5-7
Radiated Power(mW)	0.2-1.5	0.5-3	0.5-3
Beam Angle	140°	140°	140°
Pulse Operation	100mA, 1KHZ, Duty Cycle is 5%	100mA, 1KHZ, Duty Cycle is 5%	100mA, 1KHZ, Duty Cycle is 5%
Operating Temperature(℃)	-30~+55	-30~+55	-30~+55
Storage Temperature(℃)	-30~+55	-30~+55	-30~+55

Features

1, RoHS Compliant

2, High luminous intensity output

3, Excellent character appearance

4, Low voltage and current operating

5, Ultra-low power consumption

6, Solid-state LED chip based

7, Long life-span

8, Easy mounting on printed circuit board and sockets

9, IC compatible

10, Certificates: RoHS and Reach compliant

11, Type: 5050 UV SMD LED

Applications

Sterilization for food
Sterilization for object
Sterilization for air
Sterilization for toothbrush
Sterilization for air-conditioner, air- purifier etc.

Our Main Products

7 Segment LED display

1, Digit number: 1 digit, 2 digits, 3 digits, 4 digits, 5 digits, 6 digits etc.

2, Digit size: from 0.25" to 20"

3. Segment : 7 segment and 14 segment both available

4. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color etc.

5. Available surface color: black,grey and red

6. Lens color: milky white, water clear or same with emitting color

Custom LED digit display

1, All kinds of LED digit display used on home appliance like washing machine, air-conditioner, water heater, cooker etc.

2, OEM/ODM is welcomed!

LED/Light Emitting Diode

1, Lamp LED/ DIP LED/ Through-hole LED

Diameter: 3mm, 4mm, 5mm etc.

Color: Red, Green, Yellow Green, Blue, Yellow, Orange, White, Bi-color and RGB.

2, SMD LED

Type: 3528 SMD LED, 5050 SMD LED, 0603/1608 SMD LED, 0805/2012 SMD LED, 4014 SMD LED, 2216 SMD LED, 2835 SMD LED, XC35 SMD LED, COB LED, 2014 LED, 2525 LED, 1206 SMD LED, 7020 SMD LED, 2835 SMD LED, 3030/2525 SMD LED, 3535 SMD LED, 2828 SMD LED, 1010 SMD LED, PL28 LED, PL35 LEDUVPW16 LED, UV2835 LED, UV3535 LED, RC35 LED, RW16 LED, 3528 PLCC2, PLCC4 SMD LED etc.

LED DOT MATRIX DISPLAY MODULE

Normal Type

1, 1388 Series: diameter 3mm, p4mm, 8*8 pixel, module size is 32*32mm, red, green, red and green bi-color, red, green and blue three color.

2, 1588 Series: diameter 3.7mm, p4.75mm, 8*8 pixel, module size is 37*37mm,
red, green, red and green bi-color, red, green and blue three color.

3, 1988 Series: diameter 4.8mm, p6mm, 8*8 pixel, module size is 48*48mm,
red, green, red and green bi-color, red, green and blue three color.

4, 2388 Series: diameter 5mm, p7.62mm, 8*8 pixel, module size is 60.5*60.5mm,
red, green, red and green bi-color, red, green and blue three color.

Size can be Customized!

Company Information

GYX Optoelectronics Co.,Ltd. was founded in 2000. It is an integrated high-tech company with dedication to R&D, production, quality, marketing and global customer service. And it is wholly owned subsidiary company of Han’s Laser Technology Industry Group Co., Ltd., which is a public company in China (china stock code:002008) with over 5 billion US dollar market value and around 6000 employees.

Known for its LEDs’ performance, efficiency and reliability, GYX offers an extensive portfolio of products. The highly integrated customization capability of the GYX also enables the products to fit well to specific customer design needs, making the products unique to the customers’ applications.

7-Segment LED Displays
Surface Mount
Through-hole

Custom LED Digital Display
For Air Conditioner
For Washing Machine
For Dish Washer
For Refrigerator
For Rice Cooker
For Humidifier
For Dehumidifier
For Air Purifier
For Blender
For Induction Stove
For Oven
For Water Heater
For DVD Player
For Audio
For Settop Box
For Industrial Control
For Transportation
For Medical

LED Dot Matrix Displays
Dot Matrix 8*8
Dot Matrix 5*8
Dot Matrix 5*7

Through Hole LED Lamp
3mm LED Lamp
4mm LED Lamp
5mm LED Lamp
bi-color LED Lamp

Chip LED
0603(1608)
0805(2012)
1204
1206

Top LED
3014
3528
5050
5630
5730

HV LED
Power LED
Side View
IR Module
IR LED
COB
RGB LED
DUV LED
UV LED
Plant Light
Manufacturing (EMS)

These LEDs and display modules address a wide range of markets, including electronic signs and signals, home appliance( especially for air conditioner, washing machine, refrigerator, rice cooker, water boiler, humidifier, water purifier, air refresher), automotive, solid state lighting and LCD display backlighting.

LED solution customers can rely on products that deliver high reliability, long life expectancy, and are resistant to extreme weather conditions, mechanical vibration, and shock. With our innovative LED solution, customers can choose products with rich color capabilities, low cost, standard brightness and high ambient light that are designed to meet a variety of industrial and consumer applications.

GYX, all-round and competent LED solution partner.

Production Line

GYX has high volume capability, with 15000m2 production area and thousands of the most advanced production equipments and test facilities, we can make the shortest lead time to fulfill our commitments to customers.

Quality Assurance

GYX is accredited with ISO 9001: 2008 and ISO 14001:2004 certification, all the products comply with the RoHS and REACH Directives. Quality is where value and respect begins. We aim to Provide the most optimal and best quality solutions through consistent and continuous improvement.With the help of full sets of labs equipment such as ESD test equipments, compact array spectrometer, thermal shock chamber, programmable temperature&humidity chamber, our professional quality control team guarantee the realiability of all the end products.

Trade Show

1, 2015 Korea Electronic Show (KES, Oct.14th-17th) in Seoul

The Korean Electronic Show (Oct.14th-17th, 2015) present the modern and future electronic and IT industry of Korea. GYX is having the golden booth near Samsung, warmly welcome all the visitors.

2, 2015 IFA (Sep.4th-9th) in Berlin

IFA (Sep.4th-9th, 2015)is the global trade show for consumer electronics and home appliances. GYX focus on the total LED solutions and have joined the show to impress global appliances manufacturers

3, 2015 EDS (May 12th-14th ) in Las Vegas,USA

EDS is an important gathering of the movers, shakers and brightest minds that electronic component manufacturers, distributors and representatives have to offer. GYX have the honor to join this summit.

4, 2015 LED China(Sep.16th -19th) in Shanghai

LED CHINA is the world's largest event dedicated to the entire LED industry supply chain and an one-stop platform to see finished LED products and components . GYX had the booth No. E18 in E2 Hall.

5, 2015 China Information Technology Expo(CITE, Apr.10th-12th) in Shenzhen

China Information Technology Expo (CITE) is the largest and most comprehensive exhibition of electronics and information industry in China. GYX had the booth there to present to all the visitors.

6, 2015 Appliance&electronics World Expo(AWE, Mar.11th-14th) in Shanghai

With global attention and the stably-developed household appliance consumer market, AWE has become one of the world's 3 biggest exhibitions in this area. GYX had the booth of 2A14-2A15 in Hall W2

Why you choose us?

Quality Assurance: CE, ROHS approved from raw material to all products; all products be checked by both computer and hand each progress before delivery.
Reasonable Price: We won’t promise you the cheapest price, but we will promise you the most reasonable price.
Fast Delivery: We have capacity of 30~50KK pcs per month to make sure delivering you the goods in shortest time.
Good After-sell Service: Even if some of the goods have defectives, we will
Quick respond: Please inquire us any time! We will be here providing you with the best service.
