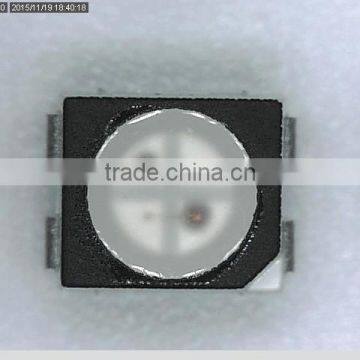

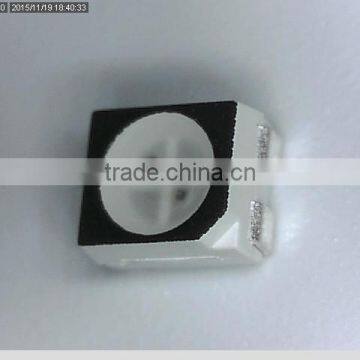

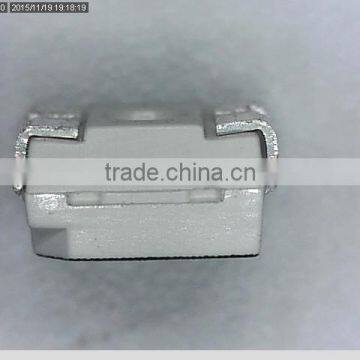

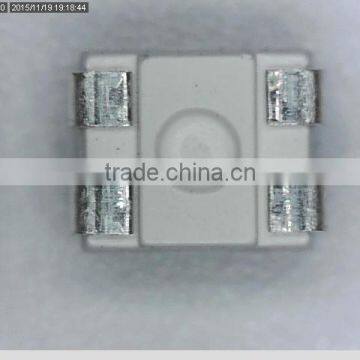

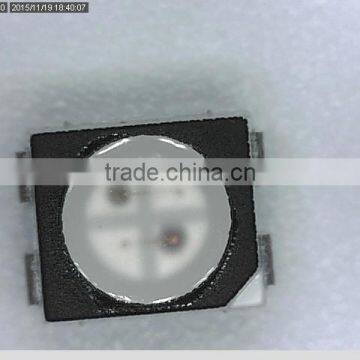

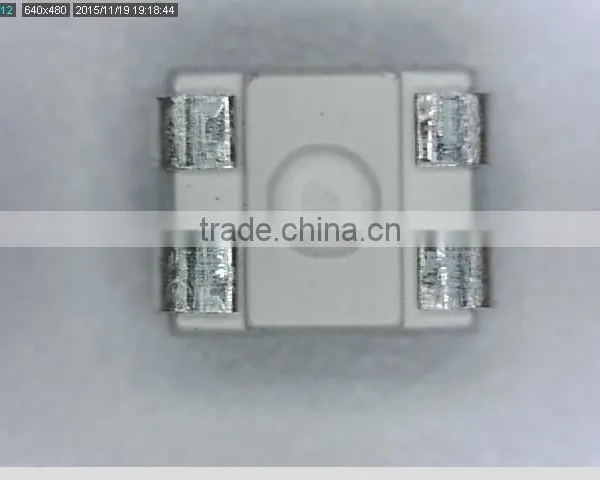

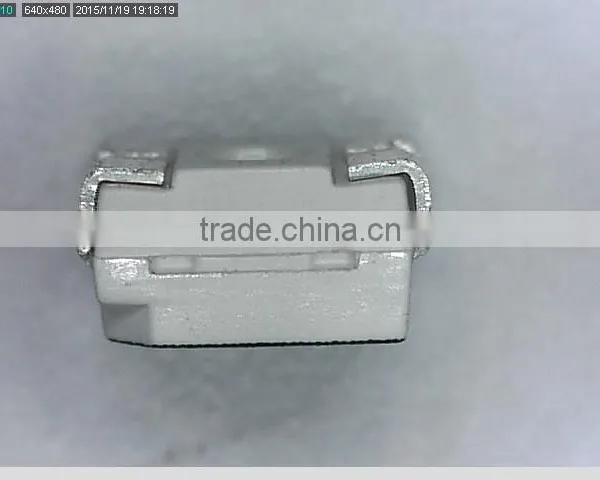

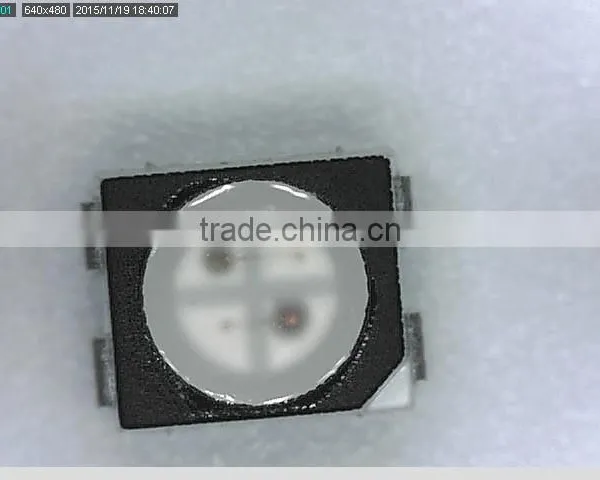

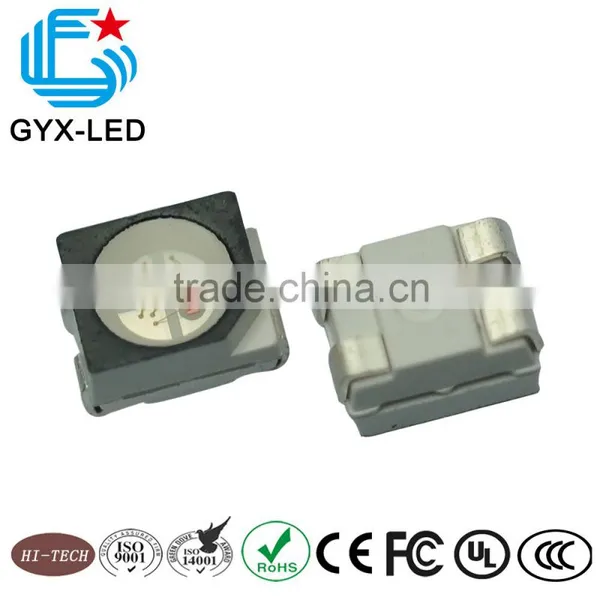

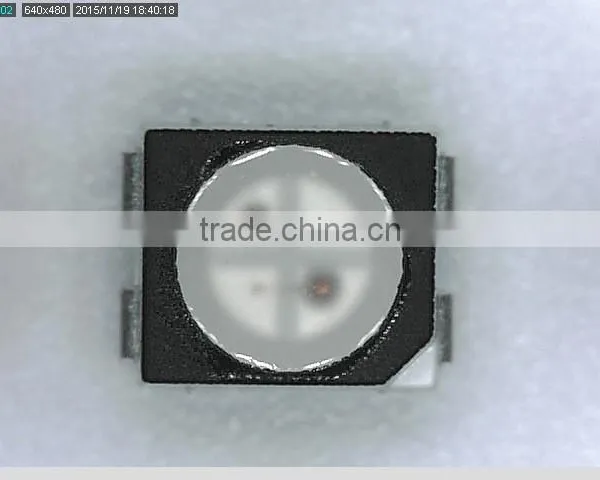

Help Center3528 RGB SMD LED Chip Manufacturer Wil RoHs and Reach
Related Products
-
High Brightness White Color 3014 SMD LEDUS$ 0.01 - 0.06MOQ: 3000 Pieces -
RoHS and REACH Compliant 1800mcd White Color 3014 SMD LEDUS$ 0.01 - 0.06MOQ: 100000 Pieces
-
White Color 5050 PLCC SMD LEDUS$ 0.01 - 0.06MOQ: 1000 Pieces
-
5050 PLCC SMD Green Color 1500-4500mcd BrightnessUS$ 0.01 - 0.07MOQ: 100000 Pieces
-
High Quality 350-3000mcd Yellow Color 5050 SMD LEDUS$ 0.01 - 0.07MOQ: 100000 Pieces
General Information
Part No. |
Emitting Color |
Lens Color | Iv(mcd)@20mA |
Viewing Angle(2θ1/2) |
GYX-SD-T0603QWC |
White |
Diffused |
Min.:350 Typ.:450 Max.: / |
120° |
Electrical / Optical Characteristics at TA=25℃
Parameter |
Symbol
|
Typ
|
Units
|
TestConditions
|
Forward Voltage |
Vf |
3.2 |
V |
IF=20mA |
Peak Wavelength |
λp |
/ |
nm |
IF=20mA |
Dominate Wavelength |
λD |
/ | nm |
IF=20mA |
Capacitance |
C |
65 |
PF | VF=0V;f=1MHz |
Reverse Current |
IR |
10 |
uA |
VR=5V |
Absolute Maximum Ratings at TA=25℃
Parameter |
Symbo |
Maximum Rating |
Units |
Power dissipation |
Pd |
95 |
mW |
Forward Current |
IF |
30 |
mA |
Peak Forward Current (1) |
IF(Peak) |
150 |
mA |
Reverse Voltage |
VR |
5 |
V |
Operating Temperature |
Topr |
-40oC To +85oC |
|
Storage Temperature |
Tstg |
-40oC To +85oC |
|
Lead Solder Temperature(2) |
Tsol |
260oC for 3 seconds |
|
Note:
- 1. 1/10 Duty Cycle, 0.1ms Pulse Width.
- 2. 2mm below package base.
GYX Optoelectronics Co.,Ltd. was founded in 2000. It is an integrated high-tech company with dedication to R&D, production, quality, marketing and global customer service. And it is wholly owned subsidiary company of Han’s Laser Technology Industry Group Co., Ltd., which is a public company in China (china stock code:002008) with over 5 billion US dollar market value and around 6000 employees.
Known for its LEDs’ performance, efficiency and reliability, GYX offers an extensive portfolio of products. The highly integrated customization capability of the GYX also enables the products to fit well to specific customer design needs, making the products unique to the customers’ applications.
