346 Oval Type Lamp Led Blue Color

Shenzhen GYX Optoelectronics Co., Ltd.
346 Oval Type Lamp Led Blue Color thumbnail-1
346 Oval Type Lamp Led Blue Color thumbnail-2
346 Oval Type Lamp Led Blue Color thumbnail-3
346 Oval Type Lamp Led Blue Color thumbnail-4
346 Oval Type Lamp Led Blue Color thumbnail-5
346 Oval Type Lamp Led Blue Color thumbnail-6
346 Oval Type Lamp Led Blue Color photo-1

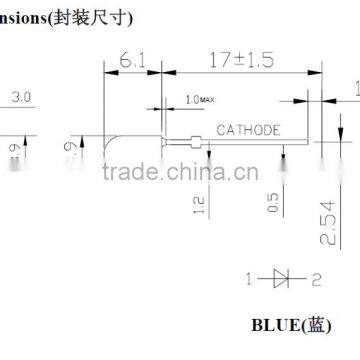

346 Oval Type Lamp Led Blue Color photo-2

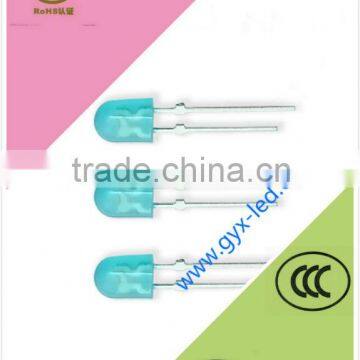

346 Oval Type Lamp Led Blue Color photo-3
346 Oval Type Lamp Led Blue Color photo-4

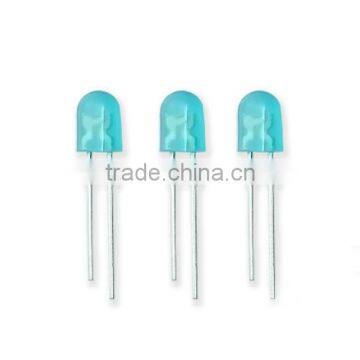

346 Oval Type Lamp Led Blue Color photo-5
346 Oval Type Lamp Led Blue Color photo-6
US$ 0.01 - 0.07 MOQ: 100000 Pieces
Key Specifications
Get Latest Price
Model Number:
GL3P0MBMD-A5-TA
Chip Material:
Other, GaN
Emitting Color:
Blue
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number GL3P0MBMD-A5-TA
Chip Material Other, GaN
Emitting Color Blue
Luminous Intensity 400-900mcd
Power Dissipation 90
Operating Temperature(℃) -35, +85
Storage Temperature(℃) -40, +100
Place of Origin Guangdong, China
Brand Name GYX
Certification CE
Product Detail

General Information

Part No.

Emitting Color

Lens Color

Iv(mcd)@20mA

Viewing Angle(2θ1/2)

GYX-SD-T0603QWC

White

Diffused

Min.:350

Typ.:450

Max.:  /

120°



Electrical / Optical Characteristics at TA=25℃

Parameter

Symbol



Typ



Units



TestConditions



Forward Voltage

Vf

3.2

V

IF=20mA

Peak Wavelength

λp

 /

nm

IF=20mA

Dominate Wavelength

λD

          /

nm

IF=20mA

Capacitance

C

65

PF

VF=0V;f=1MHz

Reverse Current

IR

 10

uA

VR=5V



Absolute Maximum Ratings at TA=25℃

Parameter

Symbo

Maximum Rating

Units

Power dissipation

Pd

95

mW

Forward Current

IF

30

mA

Peak Forward Current (1)

IF(Peak)

150

mA

Reverse Voltage

VR

5

V

Operating Temperature

Topr

-40oC  To  +85oC

Storage Temperature

Tstg

-40oC  To  +85oC

Lead Solder Temperature(2)

Tsol

260oC for 3 seconds

Note:



     1.  10 Duty Cycle, 0.1ms Pulse Width.

     2.     2mm below package base.



346 oval type lamp led blue color346 oval type lamp led blue color



Production Overview

GYX Optoelectronics Co.,Ltd. was founded in 2000. It is an integrated high-tech company with dedication to R&D, production, quality, marketing and global customer service. And it is wholly owned subsidiary company of Han’s Laser Technology Industry Group Co., Ltd., which is a public company in China (china stock code:002008) with over 5 billion US dollar market value and around 6000 employees.



Known for its LEDs’ performance, efficiency and reliability, GYX offers an extensive portfolio of products. The highly integrated customization capability of the GYX also enables the products to fit well to specific customer design needs, making the products unique to the customers’ applications.
