Wholesale Green Diffused Lens Green Emitting Color 570 nm 3mm Lens 3.85mm Flange Round Type Throuhg Hole LED

Wholesale Green Diffused Lens Green Emitting Color 570 nm 3mm Lens 3.85mm Flange Round Type Throuhg Hole LED thumbnail-1
Wholesale Green Diffused Lens Green Emitting Color 570 nm 3mm Lens 3.85mm Flange Round Type Throuhg Hole LED thumbnail-2

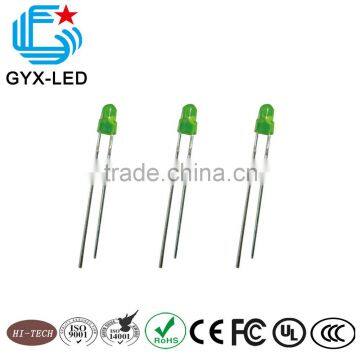

Wholesale Green Diffused Lens Green Emitting Color 570 nm 3mm Lens 3.85mm Flange Round Type Throuhg Hole LED photo-1
Wholesale Green Diffused Lens Green Emitting Color 570 nm 3mm Lens 3.85mm Flange Round Type Throuhg Hole LED photo-2
US$ 0.01 - 0.07 MOQ: 100000 Pieces
Key Specifications
Get Latest Price
Model Number:
GL300BRDD-B0
Chip Material:
AlGaInP
Emitting Color:
Red
Contact Supplier Request Quote Chat Now
Shenzhen GYX Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number GL300BRDD-B0
Chip Material AlGaInP
Emitting Color Red
Luminous Intensity 200mcd
Power Other, 0.07W
Operating Temperature(℃) -40, 85
Storage Temperature(℃) -40, 100
Place of Origin Guangdong, China
Brand Name GYX
Certification CE
Product Description

Features:

  • Shape: round type, oval type, straw hat LED are available
  • Size:  3mm, 4mm, 5mm
  • Lens type: Water clear, colored diffused
  • Emitted color: Red, White, Yellow, Orange, yellow-green, Green, Blue, Purple etc.
  • Viewing angle: 10°-120°, different viewing angle available
  • Luminence intensity: 2-10000 mcd, different luminence intensity available
  • Working voltage: 2-3V
  • Low power consumption, high intensity, uniform illumination
  • solid-state, high shock and vibration resistant
  • low power consumption
  • maintenance free, easy installation
  • 100,000 hours long life, solid state reliability
  • Superior ESD protection
NO. lens size lens appearance emitting color intensity(mcd) wavelength view angle
1 3mm green diffused YG 150 572 35
2 3mm red diffused R 1500 622 98
3 3mm green diffused G 3080 525 105
4 3mm blue diffused B 560 468 105
5 3mm green diffused G 2600 525 105
6 3mm blue diffused B 510 468 105
7 3mm red diffused R 60 647 45
8 3mm red diffused R 190 635 40
9 3mm yellow diffused Y 230 591 58
10 3mm red diffused R 300 635 40
11 4mm clear Y 300 589 85
12 4mm clear W 8000 (0.25,0.245) 35
13 4mm green diffused YG 20 568 90
14 4mm yellow diffused Y 18 587 95
15 4mm red diffused R 3 627 90
16 4mm clear W 3000 0.25,0.24 70
17 4mm clear B 980 470 45
18 4mm clear B 1400 470 60
19 4mm blue diffused B 520 468 75
20 4mm clear Y 300 589 85
21 5mm clear R 5000 622 15
22 5mm red diffused R 270 635 25
23 5mm clear R 1900 622 32
24 5mm red diffused R 3 627 30
25 5mm yellow diffused Y 50 588 35
26 5mm green diffused YG 60 570 30
27 5mm red clear R 4800 622 15
28 5mm colorless diffused G 7800 524 95
29 5mm red diffused R 1300 622 98
NOTE Different lens size, lens color, emitting color, luminence intensity, view angle are available per customer's requirement
Product Details
Chip Material Emitting Color Lens Type Iv (mcd) @20mA Viewing Angle
Min. Typ. Max.
AlGaInP Green Green  Diffused 60 120 200 40°


Electrical / Optical Characteristics at TA=25ºC

Parameter

Symbol

Min.Value

Typ.Value

Max.Value

Unit

Test condition

Forward Voltage

VF

1.8

2.0

2.4

V

IF=20mA

Peak Wavelength

λp

-

572

-

nm

IF=20mA

Dominate Wavelength

λD

568

570

576

nm

IF=20mA

Spectral Line Half-width

Δλ

-

20

-

nm

IF=20mA

Reverse Current

IR

-

0

10

uA

VR=5V



Absolute Maximum Ratings at TA=25ºC

Parameter

Symbol

Max.Rating

Unit

Power dissipation

Pd

70

mW

Forward Current

IF

25

mA

Peak Forward Current

IF (Peak)

130

mA

Reverse Voltage

VR

5

V

Operating Temperature

Topr

-40ºC To +85ºC

Storage Temperature

Tstg

-40ºC To +100ºC

Solder Temperature

Tsol

260ºC for 3 seconds

Note:

1. 1/10 Duty Cycle, 0.1ms Pulse Width.

2. 3mm below package base.

3. The production accord with the demand of ROHS.

The Electrical / Optical parameters are measured by GYX test instrument.

wholesale green diffused lens green emitting color 570 nm 3mm lens 3.85mm flange round type throuhg hole LED









Applications
  • electronic applications : indicator lights, equipment lighting
  • traffic lights
  • automotive lighting : decorative lights , taillights , high brake lights
  • decorative lighting : light string , billboards
  • outdoor display screen

Company Information

GYX Optoelectronics Co.,Ltd. was founded in 2000. It is an integrated high-tech company with dedication to R&D, production, quality, marketing and global customer service. And it is wholly owned subsidiary company of Han’s Laser Technology Industry Group Co., Ltd., which is a public company in China (china stock code:002008) with over 5 billion US dollar market value and around 6000 employees.



GYX is specialized in customized alphanumeric LED display, pictorial LED display, graphic display, surface mounted display, dot-matrix display, surface mounted LED lamp, through hole LED lamp, etc.



The products are widely renowned and utilized in home appliance, consumer electronics, traffic, lighting and other industries, such as air conditioner, washing machine, refrigerator, rice cooker, water boiler, LED display screen, etc. With the excellent products quality and customer service, we are cooperating continously especially with the world wide famous home appliance manufacturers.

GYX, all-round and competent LED solution partner

wholesale green diffused lens green emitting color 570 nm 3mm lens 3.85mm flange round type throuhg hole LED

Production line

GYX has high volume capability, with 15000m2 production area and thousands of the most advanced production equipments and test facilities, we can make the shortest lead time to fulfill our commitments to customers.

wholesale green diffused lens green emitting color 570 nm 3mm lens 3.85mm flange round type throuhg hole LED





Quality Assurance

GYX is accredited with ISO 9001: 2008 and ISO 14001:2004 certification, all the products comply with the RoHS and REACH Directives. Quality is where value and respect begins. We aim to Provide the most optimal and best quality solutions through consistent and continuous improvement.With the help of full sets of labs equipment such as ESD test equipments, compact array spectrometer, thermal shock chamber, programmable temperature&humidity chamber, our professional quality control team guarantee the realiability of all the end products.

wholesale green diffused lens green emitting color 570 nm 3mm lens 3.85mm flange round type throuhg hole LED

Trade Show

2015 Korea Electronic Show (KES, Oct.14th-17th) in Seoul

The Korean Electronic Show (Oct.14th-17th, 2015) present the modern and future electronic and IT industry of Korea. GYX is having the golden booth near Samsung, warmly welcome all the visitors.

wholesale green diffused lens green emitting color 570 nm 3mm lens 3.85mm flange round type throuhg hole LED

2015 IFA (Sep.4th-9th) in Berlin

IFA (Sep.4th-9th, 2015)is the global trade show for consumer electronics and home appliances. GYX focus on the total LED solutions and have joined the show to impress global appliances manufacturers

wholesale green diffused lens green emitting color 570 nm 3mm lens 3.85mm flange round type throuhg hole LED

2015 EDS (May 12th-14th ) in Las Vegas,USA

EDS is an important gathering of the movers, shakers and brightest minds that electronic component manufacturers, distributors and representatives have to offer. GYX have the honor to join this summit.

wholesale green diffused lens green emitting color 570 nm 3mm lens 3.85mm flange round type throuhg hole LED

2015 LED China(Sep.16th -19th) in Shanghai

LED CHINA is the world's largest event dedicated to the entire LED industry supply chain and an one-stop platform to see finished LED products and components . GYX had the booth No. E18 in E2 Hall.

wholesale green diffused lens green emitting color 570 nm 3mm lens 3.85mm flange round type throuhg hole LED

2015 China Information Technology Expo(CITE, Apr.10th-12th) in Shenzhen

China Information Technology Expo (CITE) is the largest and most comprehensive exhibition of electronics and information industry in China. GYX had the booth there to present to all the visitors.

wholesale green diffused lens green emitting color 570 nm 3mm lens 3.85mm flange round type throuhg hole LED

2015 Electronica China(Mar.17th-19th) in Shanghai

electronica China takes place in conjunction with productronica China in Shanghai. It covers the electronics industry's entire value chain. GYX had the booth of 3762-3764 in Hall E3.

wholesale green diffused lens green emitting color 570 nm 3mm lens 3.85mm flange round type throuhg hole LED

2015 Appliance&electronics World Expo(AWE, Mar.11th-14th) in Shanghai

With global attention and the stably-developed household appliance consumer  market, AWE has become one of the world's 3 biggest exhibitions in this area. GYX had the booth of 2A14-2A15 in Hall W2

wholesale green diffused lens green emitting color 570 nm 3mm lens 3.85mm flange round type throuhg hole LED
