Specifications
1.50 mm Pitch pallet racking2.Designed to AS4084-1993 and International Standards ISO9001
3.Various Beams and upright

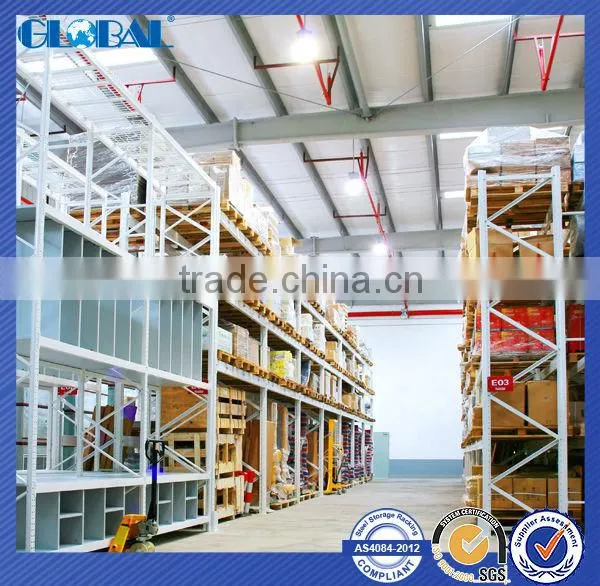

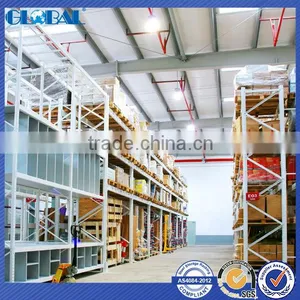

GLOBAL Standard Pallet Racks
Pallet Racking is a system of beams and uprights used to support pallets in a warehouse .There are numerous versions of pallet racking .The most common is adjustable racking (APR),also called Selective Pallet Racking, here we will introduce Global Standard types of Pallet Racking Systems ,we mainly export to Europe and Mideast , Asia markets etc.
Global Standard Pallet Racking provides efficient use of storage space for palletized loads. All steel are produced from National Large Scale Steel Group company with stable quality. With the wide range of options and components available, Global Standard Pallet Racking Systems can be made to meet your precise needs.
World Class Design
Designed to AS4084-1993 and International Standards ISO9001.
Complies With The European FEM Regulations-The World Leader In Storage System Design.
And all codes including SEMA.
World Class Manufacturing
Advanced Worlds Best Practice Production Facilities
Only Quality Certified Steel
ISO 9001:2000Quality Assured
ISO 14001:2004
Global's Standard Pallet Racking Has Such Features as follows :
- Various heights and beam lengths, box beam is made from 2 pieces of C section interlocked for added strength and rigidity
- Superior range of weight-bearing capacity, both 3 hookers and 4 hookers are available ,5 hookers can be designed for special usage .
- A number of widely used configurations tailored to each premises
- Accessories to improve workplace safety and protect racks
- Independently certified to international standards
- 50 mm popular Pitch, easy adjustable
Specifications of Upright | ||||
Item |
Width(mm) |
Depth(mm) |
Thickness(mm) |
Loading Capacity(kg) |
1 |
85 |
67 |
1.6 |
7000 |
2 |
85 |
67 |
1.8 |
8500 |
3 |
85 |
67 |
2.0 |
10000 |
4 |
85 |
67 |
2.3 |
12500 |
5 |
100 |
67 |
1.8 |
10500 |
6 |
100 |
67 |
2.0 |
12000 |
7 |
100 |
67 |
2.3 |
13800 |
8 |
100 |
95 |
2.0 |
12000 |
9 |
100 |
95 |
2.3 |
14500 |
10 |
100 |
95 |
2.5 |
16000 |
11 |
100 |
95 |
2.75 |
18000 |
12 |
100 |
95 |
3.0 |
20000 |
13 |
120 |
95 |
2.5 |
17000 |
14 |
120 |
95 |
2.75 |
19000 |
15 |
120 |
95 |
3.0 |
21000 |
Specifications of Beam | |||||
Type |
|
Item |
Height(mm) |
Width(mm) |
Thickness(mm) |
P style Pipe(Step Beam) |
|
1 |
50 |
30 |
1.5 |
2 |
60 |
40 |
1.5 |
||
3 |
80 |
50 |
1.5 |
||
4 |
110 |
70 |
1.5 |
||
5 |
140 |
70 |
1.5 |
||
6 |
160 |
70 |
1.5 |
||
Box Beam |
|
7 |
80 |
50 |
1.5 |
8 |
100 |
50 |
1.5 |
||
9 |
110 |
50 |
1.5 |
||
10 |
120 |
50 |
1.5 |
||
11 |
140 |
50 |
1.8 |
||
12 |
160 |
50 |
2.0 |
||
