Warehouse Storage Double-sided H Type Cantilever Rack

Specifications

Cantilever Racking is an ideal solution for storing long or heavy items.

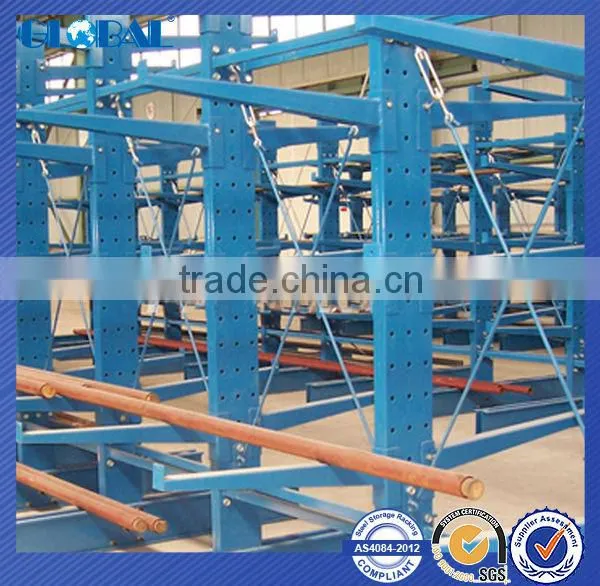

1.pipe & tubing

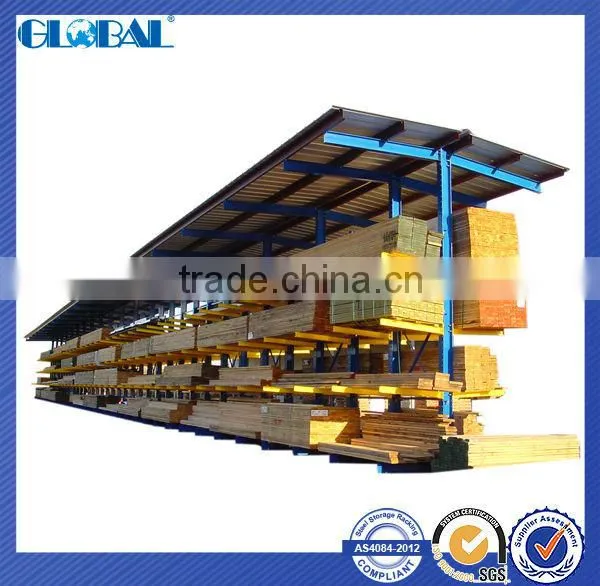

2.lumber & wood
3.Furniture

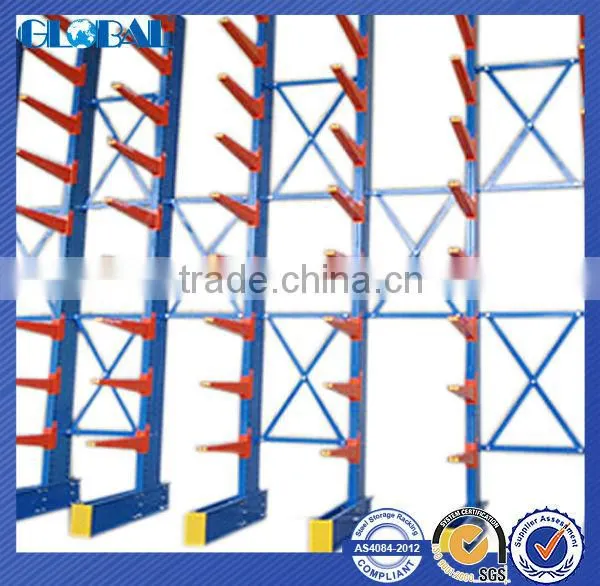

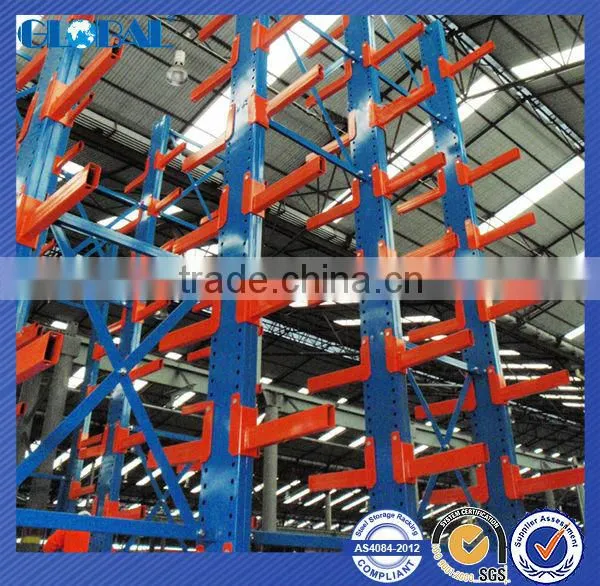

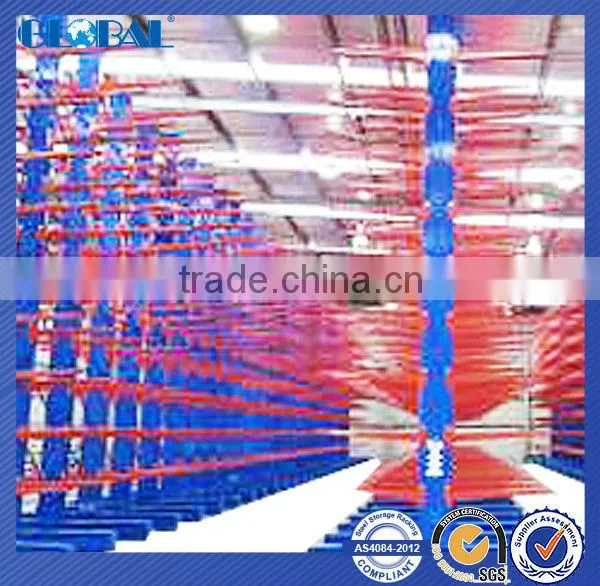

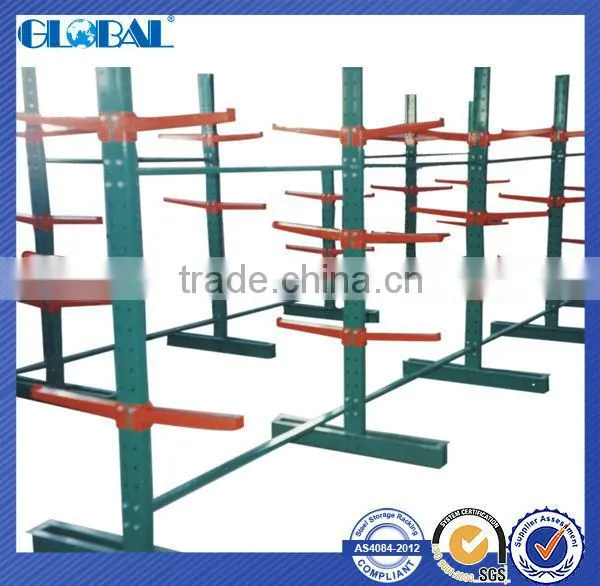

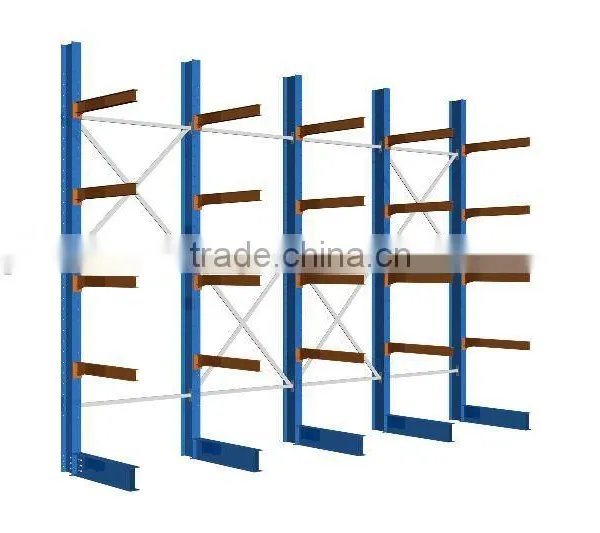

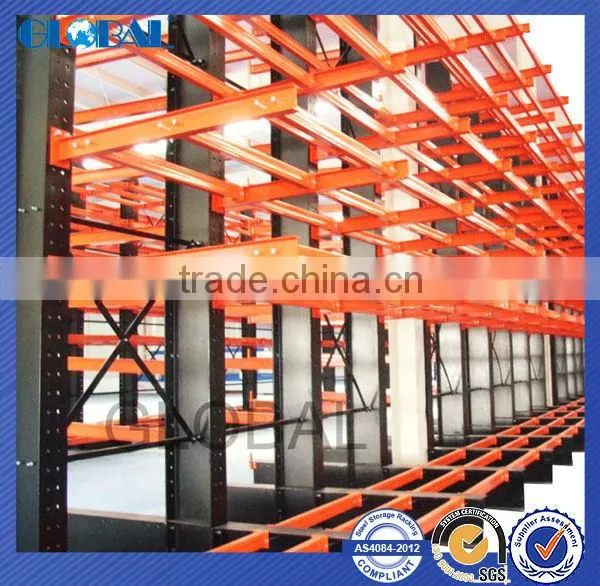

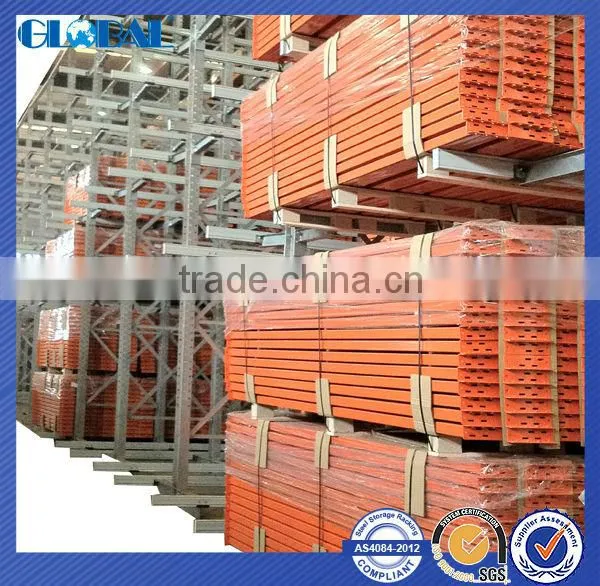

Warehouse Storage Double-sided H Type Cantilever Rack



cantilever racking



GLOBAL Model: GLOBAL HN series metal cantilever racking.



Description: GLOBAL single-sided/double-sided metal cantilever racking is designed to save space by efficiently storing long lengths of materials such as tubing, pipes and lumber. The cantilever metal storage rack offers flexibility to custom fit applications. The metal storage racks feature unique bolt-together construction. Individual components for these racks are sold separately.



Capacity: Cantilever uprights feature a capacity per side of up to 11,950 kg.

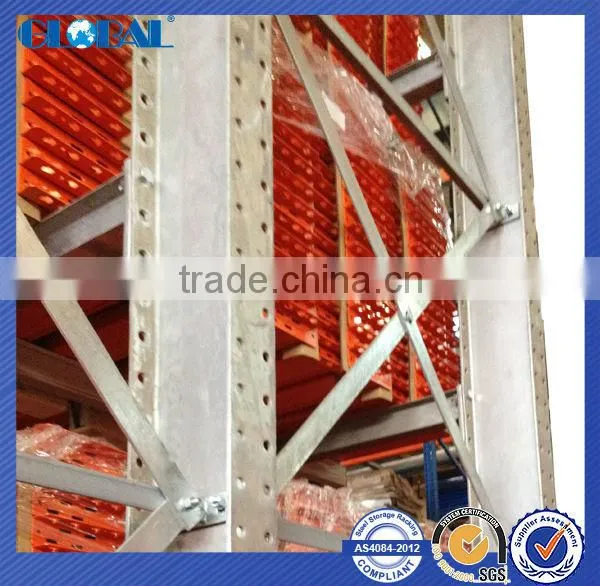

Construction: Cantilever metal cantilever racking features steel construction.



Color: RAL color Powder coated for option, we can also make hot dipped GAL suit for outdoor storage .

H-Column Upright (H200*100)								Upright Capacitis in KG
																												Arm Length
																												Column Height								600mm				900mm				1050mm				1220mm				1500mm
								3000								4860				3730				3510				3300				2550
4000																																				4830				3700				3350				3000				2500
								4780								4800				3670				3320				2970				2490
5385																																				4750				3620				3270				2920				2440
								6000								4700				3570				3220				2870				2390

H-Column Upright (H250*125)								Upright Capacitis in KG
																												Arm Length
																												Column Height								600mm				900mm				1050mm				1220mm				1500mm
								3000								8350				6550				5950				5350				4550
4000																																				8300				6500				5900				5300				4500
								4780								8300				6500				5900				5300				4500
5385																																				8250				6450				5850				5250				4450
								6000								8200				6400				5800				5200				4400

H-Column Upright (H300*150)								Upright Capacitis in KG
																												Arm Length
																												Column Height								600mm				900mm				1050mm				1220mm				1500mm
								3000								11950				9550				8700				7850				6750
4000																																				11900				9500				8650				7800				6700
								4780								11900				9500				8650				7800				6700
5385																																				11850				9450				8600				7750				6650
								6000								11800				9400				8550				7700				6600



ARM Loading capacity see following :

Arm Type								Arm Capacities in KG
																												Arm Length
								600mm				900mm				1050mm				1220mm				1500mm
								I Beam (100*68)								1610				1070				910				790				640
I Beam (100*68)																																								1740				1470				1280				980
								Square Pipe (100*50*2.5)								960				640				540				470
Square Pipe (100*50*3.0)																																				1130				750				640				550				420



Contact with us for your special applications !





Galvanized is available!
