Heavy duty cantilever rack/outdoor use cantilever racks

Specifications

cantilever racking

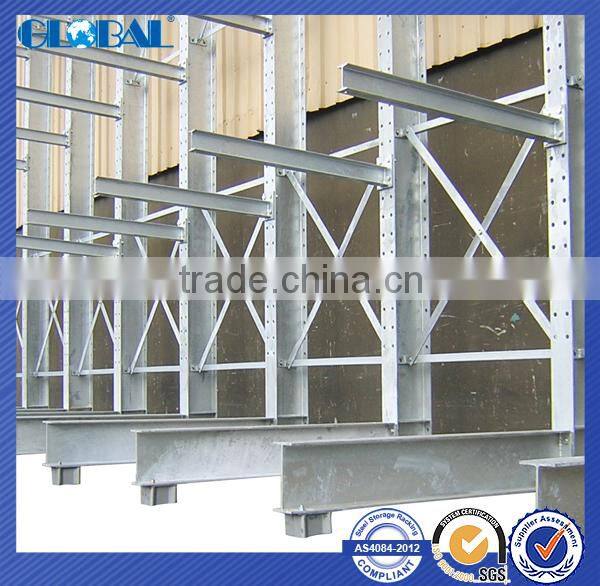

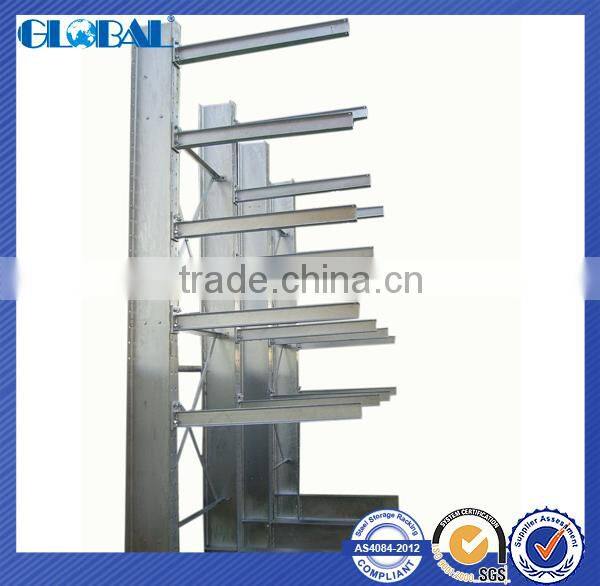

GLOBAL Model: GLOBAL HN series metal cantilever racking.

Heavy duty cantilever rack/outdoor use cantilever racks



Description: GLOBAL single-sided/double-sided metal cantilever racking is designed to save

space by efficiently storing long lengths of materials such as tubing, pipes and lumber. The

cantilever metal storage rack offers flexibility to custom fit applications. The metal

storage racks feature unique bolt-together construction. Individual components for these

racks are sold separately.



Capacity: Cantilever uprights feature a capacity per side of up to 11,950 kg.



Construction: Cantilever metal cantilever racking features steel construction.

 Color:RAL color Powder coated for option, we can also make hot dipped GAL suit for outdoor

storage.

H-Column Upright (H200*100) Upright Capacitis in KG
Arm Length
Column Height 600mm 900mm 1050mm 1220mm 1500mm
3000 4860 3730 3510 3300 2550
4000 4830 3700 3350 3000 2500
4780 4800 3670 3320 2970 2490
5385 4750 3620 3270 2920 2440
6000 4700 3570 3220 2870 2390

H-Column Upright (H250*125) Upright Capacitis in KG
Arm Length
Column Height 600mm 900mm 1050mm 1220mm 1500mm
3000 8350 6550 5950 5350 4550
4000 8300 6500 5900 5300 4500
4780 8300 6500 5900 5300 4500
5385 8250 6450 5850 5250 4450
6000 8200 6400 5800 5200 4400

H-Column Upright (H300*150) Upright Capacitis in KG
Arm Length
Column Height 600mm 900mm 1050mm 1220mm 1500mm
3000 11950 9550 8700 7850 6750
4000 11900 9500 8650 7800 6700
4780 11900 9500 8650 7800 6700
5385 11850 9450 8600 7750 6650
6000 11800 9400 8550 7700 6600



ARM Loading capacity see following :

Arm Type Arm Capacities in KG
Arm Length
600mm 900mm 1050mm 1220mm 1500mm
I Beam (100*68) 1610 1070 910 790 640
I Beam (100*68)   1740 1470 1280 980
Square Pipe (100*50*2.5) 960 640 540 470
Square Pipe (100*50*3.0) 1130 750 640 550 420



Contact with us for your special applications !
Contact with us for your special applications !
