Home > Lights & Lighting > LED Encapsulation Series > SMD LED > Competitive Price 265nm Uvc Led Diode

Competitive Price 265nm Uvc Led Diode

US$ 35 - 50 MOQ: 2 Pieces

Key Specifications

Get Latest Price

Chip Material:

Other, AlGaN

Emitting Color:

Other, UV

Power:

Other, 0.2-1.0mW

Contact Supplier Request Quote Chat Now

Shenzhen GYX Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Chip Material Other, AlGaN

Emitting Color Other, UV

Power Other, 0.2-1.0mW

Operating Temperature(℃) -30, +55

Storage Temperature(℃) -30, +55

Place of Origin Guangdong, China

Brand Name GYX

Certification CE

Product Description

Introduction

Al₂O₃ ceramics 5050 support;

Small volume, convenient for the design of small products;

Heat dissipation coefficient is 10W/m.K;

Can be applied to various occasions for sterilization and disinfection;

Can be applied to photo curing.

Parameter @20mA

Wavelength(nm)	265	280	310
Voltage Range(V)	5.5~7.5	5.0~7.0	4.5~7.0
Radiated Power(mW)	0.2~1.5	0.5~3.0	0.5~3.0
Beam Angle: °	140°	140°	140°
Pulse Operation (100mA, 1KHZ, Duty Cycle is 5%)	Can	Can	Can
Operating Temperature( ℃)	-30~+55	-30~+55	-30~+55
Storage Temperature: ℃	-30~+55	-30~+55	-30~+55

Product Dimension (Unit mm)

Dimension Details
Dimension	Minimum	Standard	Maximum
A	4.8	5.0	5.2
B	0.92	1	1.08
C	0.45	0.5	0.55
D	3.85	4	4.15
E	0.3	0.4	0.5
F	1.1	1.2	1.3
G	0.65	0.75	0.85
H	0.55	0.65	0.75
I	0.7	0.8	0.9
J	1.6	1.7	1.8
K	2.4	2.5	2.6

Note: specifications are subject to change without prior notice.

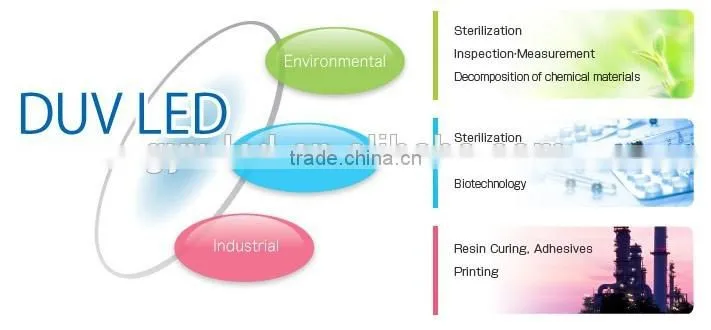

Application

Air Sterilization

DUV LEDs can effectively kill bacteria and viruses in the air, and cut down the transmission of such pathogens, especially viruses.

Typical Hazard Prevention and Control

Fine particles (PM 2.5) are very easily to be attached by microorganisms such as bacteria and viruses. Increased levels of fine particles in the air are consistently and independently related to the most serious effects, including respiratory diseases, lung cancer and so on. DUV LED developed by QD Jason can effectively kill bacteria and viruses carried by fine particles.

DUV LED can be applied to air conditioners, refrigerators, humidifiers, air sterilizers and so on.

Production line

With the ample support from Han’s Laser Technology Industry Group, GYX have introduced the most advanced production equipments and test facilities, such as automatic machines of die-bonding, wire-bonding, sorting, taping, epoxy coating and filling, high speed mounter, reflow soldering, wave soldering, advanced aging workshop, molding machine, 10,000 class clean room, air shower, LED oven, ESD test equipments, compact array spectrometer, thermal shock chamber, programmable temperature&humidity chamber, plasma cleaner, etc. Strict ESD control procedure and whole process monitoring guarantee the products’ high quality.

GYX has high volume capability, with 15000m² production area and thousands of the most advanced production equipments and test facilities, we can make the shortest lead time to fulfill our commitments to customers.

Quality Assurance

GYX is accredited with ISO 9001: 2008 and ISO 14001:2004 certification, all the products comply with the RoHS and REACH Directives. Quality is where value and respect begins. We aim to Provide the most optimal and best quality solutions through consistent and continuous improvement.With the help of full sets of labs equipment such as ESD test equipments, compact array spectrometer, thermal shock chamber, programmable temperature&humidity chamber, our professional quality control team guarantee the realiability of all the end products.
