Introduction

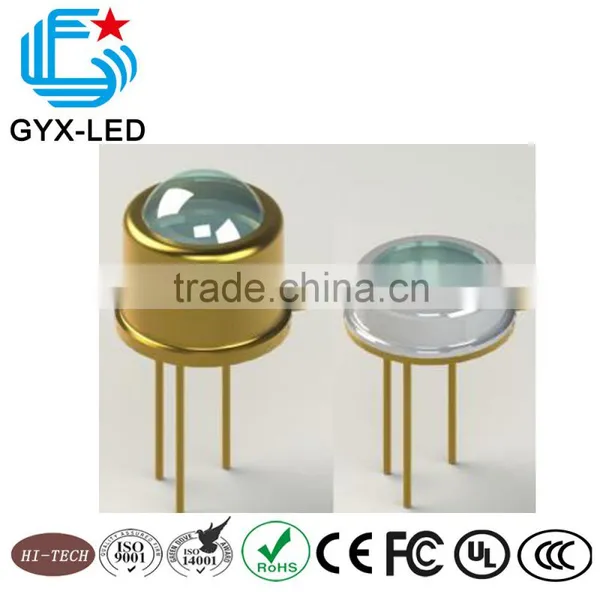

TO39 Package 310nm deep uv led for sterilization and deodorization
Traditional TO39 support;
Excellent air tightness;
Can be filled in with special gases;
Small beam angle;
Can be applied to precision testing equipment such as broad spectrum analysis equipment.
Parameter @20mA
Wavelength(nm) |
265 | 280 | 310 |
Voltage Range(V) |
5.5~7.5 |
5.0~7.0 |
4.5~7.0 |
Radiated Power(mW) |
0.2~1.5 |
0.5~3.0 |
0.5~3.0 |
Beam Angle: ° |
60°or 140°or 7° |
60°or 140°or 7° |
60°or 140° |
|
Pulse Operation (100mA, 1KHZ, Duty Cycle is 5%) |
Can |
Can |
Can |
Operating Temperature( ℃) |
-30~+55 |
-30~+55 |
-30~+55 |
Storage Temperature: ℃ |
-30~+55 |
-30~+55 |
-30~+55 |
Air Sterilization
DUV LEDs can effectively kill bacteria and viruses in the air, and cut down the transmission of such pathogens, especially viruses.
Typical Hazard Prevention and Control
Fine particles (PM 2.5) are very easily to be attached by microorganisms such as bacteria and viruses. Increased levels of fine particles in the air are consistently and independently related to the most serious effects, including respiratory diseases, lung cancer and so on. DUV LED developed by QD Jason can effectively kill bacteria and viruses carried by fine particles.
DUV LED can be applied to air conditioners, refrigerators, humidifiers, air sterilizers and so on.
