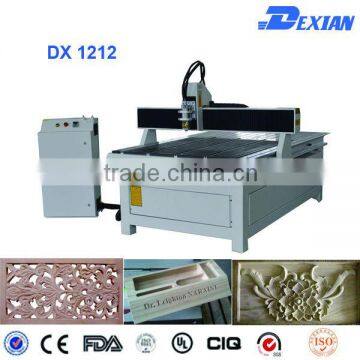

2014 new type DX 1212 cnc router machine for aluminum

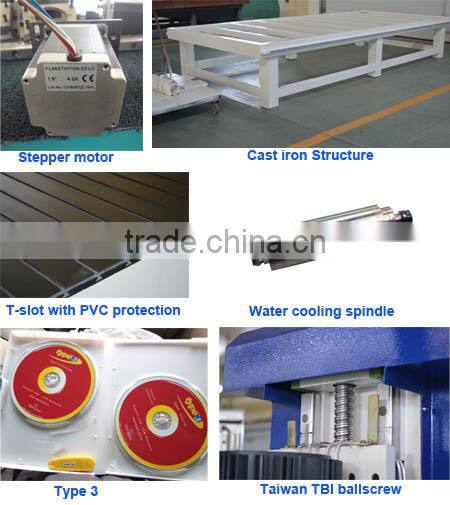

Standard Configuration of cnc router machine
Working area: 1200mm*1200mm*160mm
Table Surface : Aluminum profile T-slot with PVC protection on surface
1.5 KW water cooling spindle (option:2.2kw /3kw)
Mach3 control system
Stepping motor system
Taiwan TBI ball screw transmission for all axis
Cast iron Structure
Type3, Art cam copy

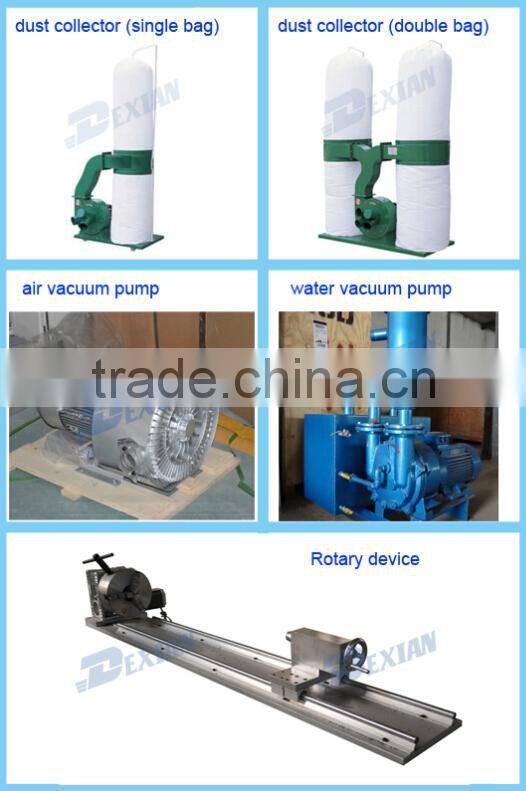

Additional Option parts of cnc router machine
DSP Control system
Original type 3 software, 1G U disk
1.5kw Italy HSD air cooling spindle
Taiwan Delta inverter
Mist sprayer
Tool calibration sensor
Rotary device for engraving on the cylinder
Dust collect system
Size: 1200*1800*160mm /600*1500*150mm/900*1500*150mm/600*900*150mm
Technical Parameters of cnc router machine
Working area | 1200*1200*160 mm |
Transmission | Ballscrew |
Table structure | T-Slot Extrusion PVC |
Spindle | 1.5KW (Option 2.2 /3 KW) |
Spindle speed | 0-24000 RPM |
Speed | MAX traveling speed :6000mm/min |
MAX working speed :5000mm/min | |
Driver and Motors | Stepping motor |
Working voltage | AC220V/1PH/50Hz |
Operating system | Mach3 (Option : DSP) |
Net weight | 950Kg |
Gross weight | 1050 Kg |
Application and samples by cnc router machine
Standard process of cnc router machine
Warranty
18 months for the whole machine and 6 months for spindle.
After-sale Service of cnc router machine
1. Within 7 days since your local customs clearance: if the CNC machine’s any parts has any problems, we will change it FREE.
2. Exceed 7 days since your local customs clearance but withinwarranty period: if the CNC machine parts have any problems, we can change the old machine parts to new ones FREE, but you should pay all the shipping cost.
3. Exceed warranty period: if the CNC machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4. We offer 24 hours technical support by call, e-mail.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. We can record VIDEOS of operating the laser machine.
7. FREE training course in our factory.
8. Machine will be adjusted before it is delivered; operation disk/CD was included.
Welcome to Visit Our Factory

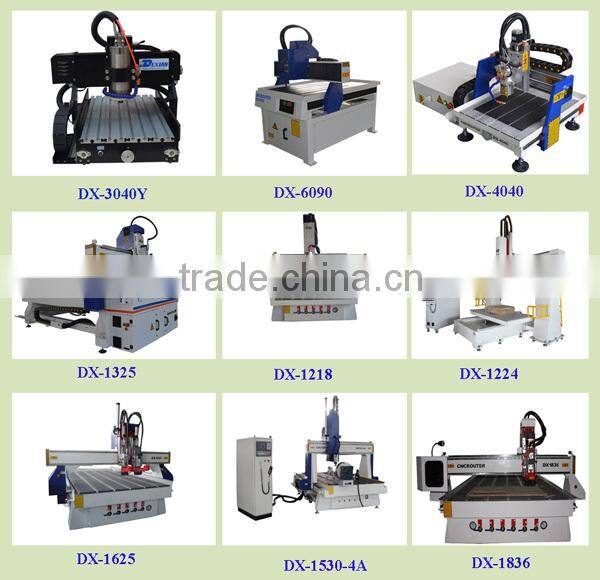

More Models You Can Choose about cnc router machine
Welcome to contact with us!
Looking for agents and wholesale from all over the world!
Any questions,please feel free to contact me !
-----------------------------------------------------------------
Jinan Dexian Machinery Co.,Ltd
Jenny Yang
Phone:0086-18615679773 Skype:dexian010
Wechat:18615679773 QQ:18615679773
Application and samples
