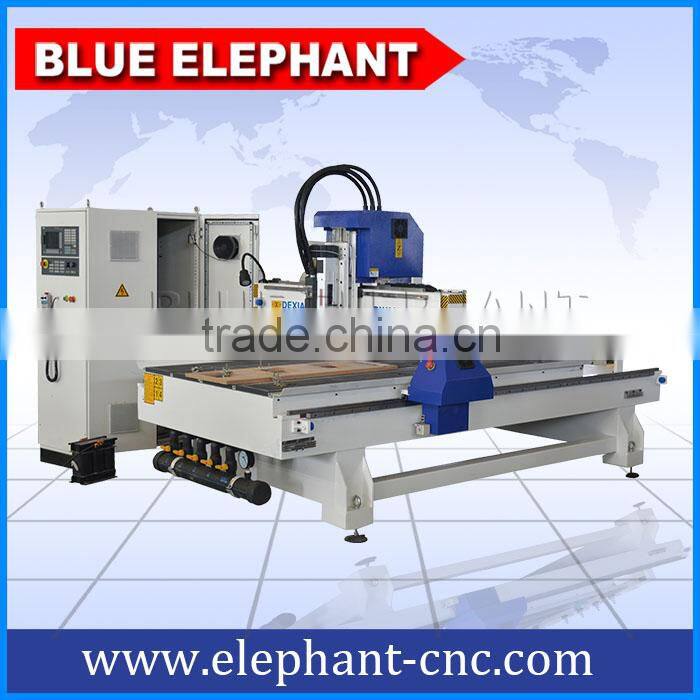

New type cnc auto tool changer with siemens control system and siemens servo driver
Features
a. High precision, low vibrations, stable running.
b. Imported Taiwan HIWIN linear square guide, high precision.
c. High performance 9kw Italy HSD ATC air cooling spindle, more powerful, low noise.
d. Y axis adopt double motors, highly increased the travelling speed.
e. Advanced Germany SIEMENS control system , easy to operate.
f. T-type gantry, making the machine bed more stable, and reducing the shaking feeling when the gantry moving.
Parameter
1 | Model | DX-1325ATC/DX-1530ATC/DX-1625ATC/ DX-1836ATC/DX-2030ATC |
2 | X,Y Working Area | 1300*2500mm/1500*3000mm/1600*2500mm/ 1800*3600mm/2000*3000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | T-slot &Vacuum working table (Option: T-slot Table) |
6 | Frame | Thicken steel Square Tube Heavy structure 8mm thicken steel gantry with T type |
7 | X, Y Structure | Gear and rack transmission, Taiwan HIWIN Linear Rail |
8 | Z Structure | Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
9 | Max. Power Consumption | (Without Spindle) 4.5Kw |
10 | Max. Rapid Travel Rate | 60000mm/min |
11 | Max. Working Speed | 25000mm/min |
12 | Spindle Power | 9KW HSD ATC spindle from Italy |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Germany SIEMENS Servo Motor Driver (optional:Japan YASKAWA Servo Motor Driver) |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
16 | Command Language | G Code |
17 | Operating System | Germany SIEMENS control system (Optional:SYNTEC control system from Taiwan) |
18 | Computer Interface | USB interface |
20 | Collet | ISO30 |
21 | Inverter | 11kw Taiwan DELTA inverter |
22 | Software Compatibility | Type 3 /Artcam /Ucancam |
Applications
1. Woodworking: 3D wave plate processing,,furniture industry, decorative material,cabinet door,computer table, kitchen utensils,wood door carving ,cabinets and panels,plastic fabrication,model making,art crafts,musical instrument, plate.
2. Advertising:signs, acrylic brands,3D characters cutting,garden or wall decoration,logo, acrylic cutting, billboard, characters cut, plate production, LED/neon channel, literal-hole cut, Lightbox mold, stamp,mould.
3. Die industry: sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

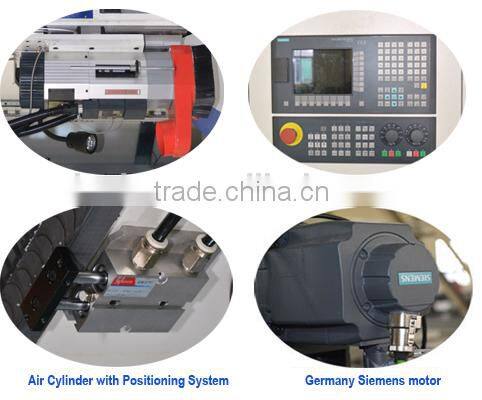

Details
Italy HSD ATC spindle 9kw + Taiwan DELTA inverter 11kw= Perfect Performance
Germany SIEMENS Servo Motor Driver + Germany SIEMENS control system =Perfect Performance

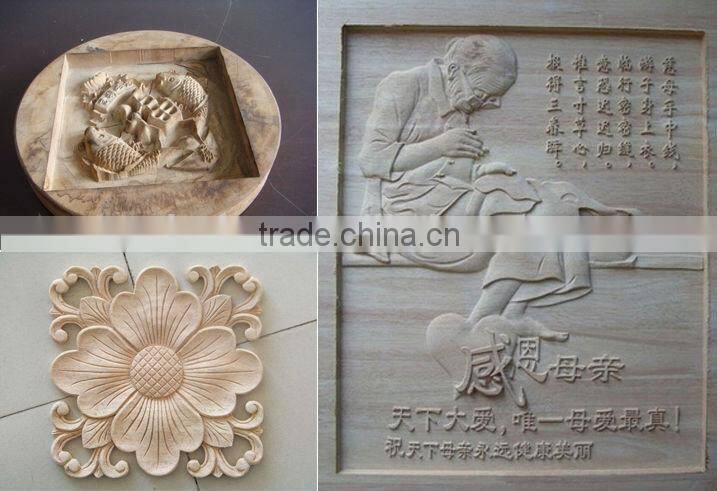

Samples

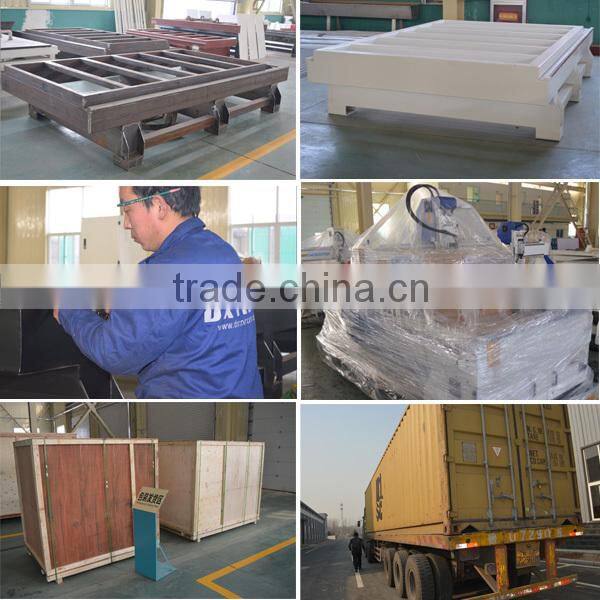

Our Factory
Guarantee
12 months for the whole machine.
Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
Looking for agents and wholesale from all over the world!
Any questions,please feel free to contact me !
-----------------------------------------------------------------
