3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000

Jinan Dexian Machinery Co., Ltd.
3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000 thumbnail-1
3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000 thumbnail-2
3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000 thumbnail-3
3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000 thumbnail-4
3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000 thumbnail-5
3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000 thumbnail-6
3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000 photo-1
3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000 photo-2
3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000 photo-3

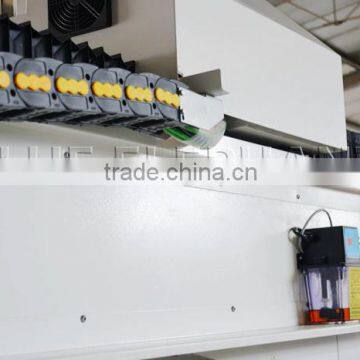

3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000 photo-4

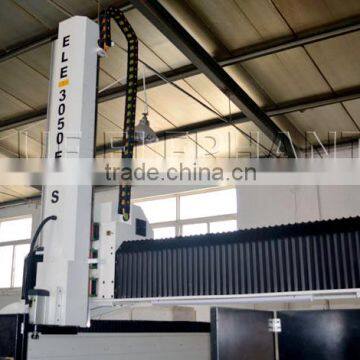

3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000 photo-5

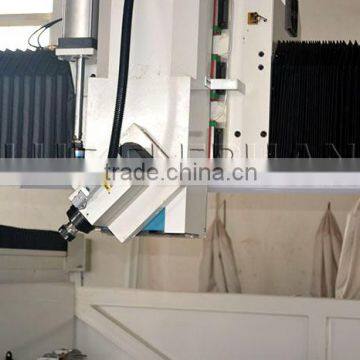

3050 EPS Large Wood Cutting Machine , Styrofoam 5 Axis , Cnc Foam Cutting Machine 3000*5000 photo-6
US$ 15,999 - 35,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name BLUE ELEPHANT
Model Number ELE3050EPS
Voltage 380V, 3ph(option: 220v)
Power(W) 10.5kw
Dimension(L*W*H) 3000*5000*1500mm
Weight 7500kg
Certification CE ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

3050 EPS large wood cutting machine , styrofoam 5 axis , cnc foam cutting machine 3000*5000

3050 EPS large wood cutting machine , styrofoam 5 axis , cnc foam cutting machine 3000*5000

Product Description

Features of styrofoam 5 axis:

  • Effective working area :2860x3500x1450mm
  • Italy HSD brand air cooling spindle: 4.5kw
  • 4th axis can move ±100°
  • Taiwan DELTA inverter: 5.5kw
  • Japan YASKAWA servo driver 1.5KW
  • Taiwan SYNTEC control system 4 axis 21MA model
  • Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel
  • Double Taiwan HIWIN #35 Linear guide for Y axis one side,total 4pcs #35 linear guide for Y axis.
  • X,Z axis Taiwan HIWIN #45 linear guide .
  • Taiwan TBI ball screw with high precision
  • Dust hood for axis,dust collect hood and pipe for dust collector
  • 2000mm floor with aluminum &PVC ,1300mm floor steel plate under angle

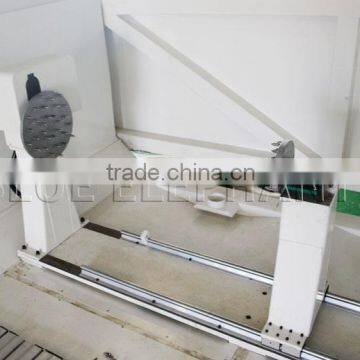

  • Rotary device:diameter 300mm, length 2000mm
  • New type dust collection with two bags
  • Heavy duty gantry and structure
  • Japan Shimpo reducer

Advantages of cnc foam cutting machine:

  • Self-lubricating, life-long maintenance-free Taiwan guide rail.
  • Italian high-speed spindle, with top speed of 24000rpm, guaranteering maximum processing efficiency and productivity.
  • Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
  • Taiwan controller reads the codes in an efficient manner. Online simulation and monitoring function are available. Processing efficiency and safety are guaranteed.
Product Details

Product Details of large wood cutting machine:

3050 EPS large wood cutting machine , styrofoam 5 axis , cnc foam cutting machine 3000*5000

Parameters of styrofoam 5 axis:

Number

Description

Parameter

1

X,Y,Z Working Area

2860x3500x1450 mm*±100°

2

Effective working area

2860x3500x1450 mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

4

X,Y,Z Repositioning Accuracy:

±0.01mm

5

Table Surface

T-slot Table

6

Frame

Big Steel Tube Structure

7

Y Structure

Helical rack gear , 4pcs HIWIN #35 Linear guide

8

X,Z Structure

HIWIN #45  Linear guide

9

Max. Power Consumption

(Without Spindle) 5Kw

10

Max. Rapid Travel Rate

40000mm/min

11

Max. Working Speed

30000mm/min

12

Spindle Power

HSD spindle 4.5kw

13

Spindle Speed

0-18000RPM

14

Drive Motors

Japan 1.5KW YASKAWA servo

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

SYNTEC Control System 21MA

18

Rotary device

Diameter300mm, length 2000mm

18

Computer Interface

USB

19

Flash Memory

512M

20

Collet

ER32 (20mm)

21

X,Y Resolution

<0.01mm

22

Software Compatibility

UG , Power mill

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

New type dust collection

1.5KW with two bags (equal the old type 4Kw )

PS:All the working area and specifications can be customized according to your requests.



Packaging & Shipping

Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
                              2.inner package:Stretch film and plastic film for humidity.
                              We can package according to your requests.
Delivery Detail: Shipped in 25 working days after payment.



Application:

Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials .

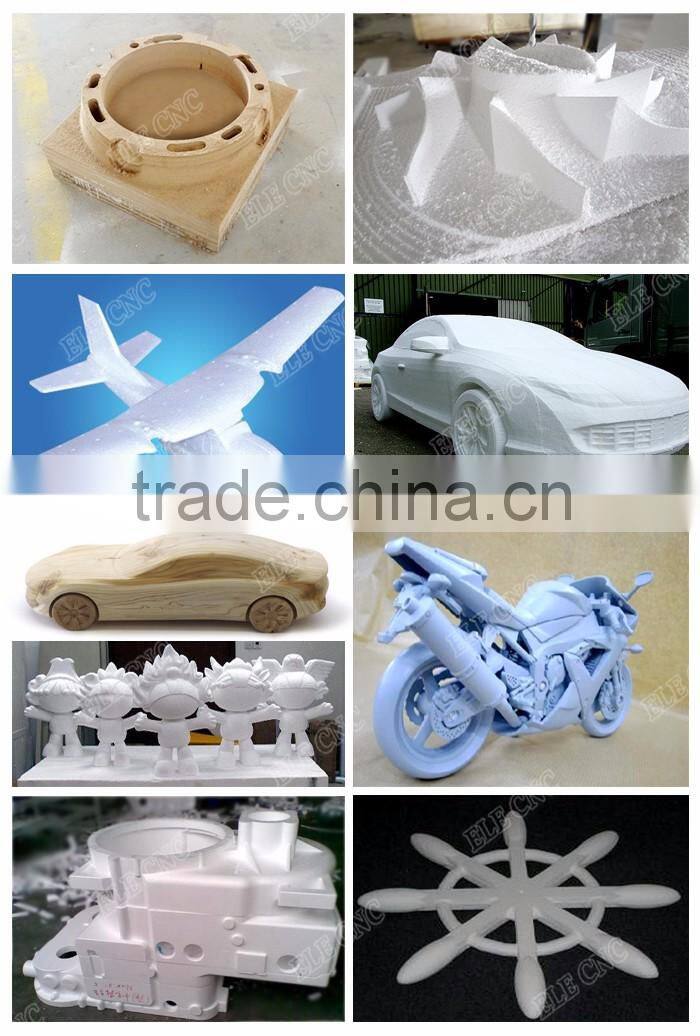

Samples show:

3050 EPS large wood cutting machine , styrofoam 5 axis , cnc foam cutting machine 3000*5000



Our Service:
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.



Welcome to our factory:

3050 EPS large wood cutting machine , styrofoam 5 axis , cnc foam cutting machine 3000*5000

3050 EPS large wood cutting machine , styrofoam 5 axis , cnc foam cutting machine 3000*5000





Contace Us

Jinan Dexian Machinery Co.,Ltd



---10 years factory experience



---Professional CNC machinery manufacturer



---very professionally produce 3 axis,4 axis, 5 axis, ATC cnc router,laser cutting machine



---The price will be 20% off in 2016



Looking forward for the agents from all over the world! Welcome to contact us!
