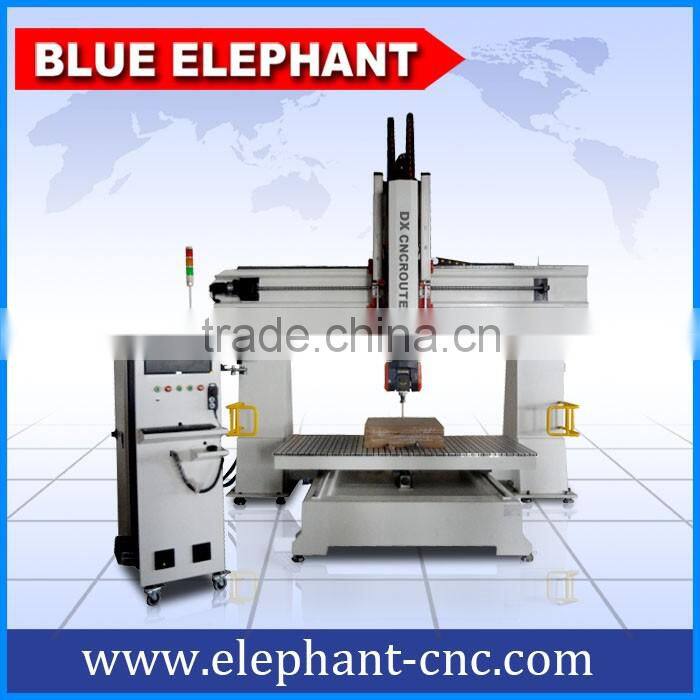

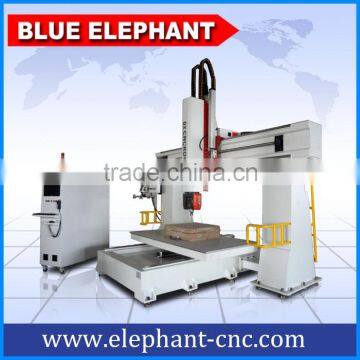

1224 metal mould cnc router for dies 3d 4d carving
5 axis cnc router, 4 axis cnc router, hot sale type for 3d/4d moulds making. hot sale!
metal mould cnc router machine advantages:
1, With OSAI numerical control system, high machining accuracy and high speed. The Japan THK rails.and the
Germany original rotating arm ensure the accuracy and strength of the mechanical
2, Z-axis travel can be heightened to 2.1 meters, so that very suitable for processing large-scale three-dimensional
surface.. Intelligent processing cross-border protection function can prevent mechanical collision due to excessive
processing of design file.
3, Diversified control processing speed can control the working speed, traveling speed, dropping tool speed, lowering
tool speed, greatly improve the quality and efficiency
After-sale service for 5 axis metal mould cnc router:
1, Within 7 days since your local customs clearance: if the cnc machine’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the laser machine
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
5 axis cnc router technical parameters
NO | Parameters | Description | |
01 | Model | DX-1224 5 Axis cnc | |
02 | Movement type | Movable table | |
03 | X axis travel(mm) | 2440 | |
04 | Y axis travel(mm) | 1220 | |
05 | Z axis travel(mm) | 900 | |
06 | C traveling | ±180° | |
07 | A traveling | ±112.5° | |
08 | Beam spacing(mm) | 4260 | |
09 | Beam height(mm) | 2150 | |
10 | Vacuum pump | Germany Becker pump | |
11 | Supplier for double pendulum head | 12kw Italy HSD spindle | |
12 | Range of speeds | 24000RPM | |
13 | Servo motor brand | Japan YASKAWA servo motor | |
14 | Table size (mm) | 1220x2440 | |
15 | Product fixed form | Vacuum table | |
16 | Tool magazine | Round tool magazine (with 8 positions) | |
17 | Control system | OSAI | |
18 | Machine size | 4260x2150x3300mm | |
19 | Total weight | 12T | |
20 | Total power (kw) | 24KW | |
21 | Voltage | AC 380V 60Hz | |
22 | Max lifting weights | 20T | |
23 | File exchange | G code | |
24 |
Maximum speed | X axis | 45m/min |
Y axis | 45m/min | ||
Z axis | 20m/min | ||
C axis | 20m/mim | ||
A axis | 20m/min | ||
25 | Guarantee time | One year of guarantee in case of non-human damage | |
26 | Option items | Change 3kw double packet dust collector to 5.5kw double bag | |
Original Alphacam software | |||
Rotary device | |||
27 | Color | For your option | |
Applicable industries Mold industry:
5 axis cnc router is suitable for various large metalloid mould, especially suitable for automotive foam mold,
wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.Instrument industry, 3D surface
engraving and shape cutting of large-scale instruments.
Technical support and warranty
12 moths for the whole machine
24 Hours technical support by email or calling
user friendly English manual and Video CD for machine operation and maintain
DX 1224 metal mould cnc router for dies 3d/4d carving
All models of our cnc routers' customization is available.
Our company has obtained CE, FDA and ISO certificates. and we are third year gold supplier on Alibaba.
We promise to provide high quality product with competitive price!! welcome to visit our factory!
-------------------------------------------------------------------------------------
Skype: elephantcnc
WhatsApp/Mobile: 0086-15064026772
