Auto Arc plasma cutting machine factory price
Features:
1, DSP controller or Start control system
2, HIWIN Square Rail
3, X, Y: Rack Gears, Z Germany ball screw
4, untouched arc striking
5, Y axis with double motor
Plasma cutter
Description | parameter |
working area | 1300mm x 2500mm |
Transmission | X, Y axis: High precision Rack Gears; Z axis: imported Ball Screw |
X, Y, Z Rail | Round orbit( HIWIN Linear orbit for option) |
Frame | Square tube Integral structure |
Cutting Thickness | 3mm -10mm stainless steel |
Cutting Speed | 0-8000mm/min |
Moving Speed | 0-50000mm/min |
Plasma Generator | 60A-100A |
Motor | Stepper motor |
Control system | DSP Or Start |
Working voltage | 3 phase 380V 50HZ/60HZ ( 220v for option) |
Software | ARTCAM, Type 3 |
File transfer | USB interface |
Arc | Untouched arc striking |
The cutting thickness and speed of different materials:
Material | Thickness(mm) | Current(A) | Speed (mm/min) |
Carbon steel plate | 3.6 | 40 | 3835 |
| 6 | 40 | 1880 |
| 10 | 80 | 2388 |
| 12 | 80 | 1524 |
| 19 | 80 | 787 |
| 25 | 80 | 406 |
Aluminum | 0.8 | 25 | 15494 |
| 1.5 | 25 | 6807 |
| 3.2 | 40 | 1930 |
| 10 | 80 | 3073 |
| 12 | 80 | 1905 |
| 19 | 80 | 940 |
Stainless steel | 0.8 | 25 | 12598 |
| 3.6 | 40 | 2718 |
| 6 | 40 | 1194 |
| 10 | 80 | 2108 |
| 12 | 80 | 1270 |
| 19 | 80 | 610 |
| 25 | 80 | 356 |
Plasma cutter working materials:
Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium pates and the other nonferrous metals

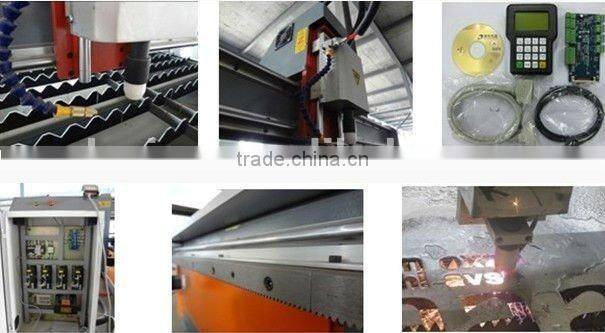

Machine Parts:

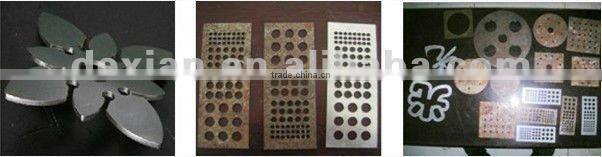

Product Samples:

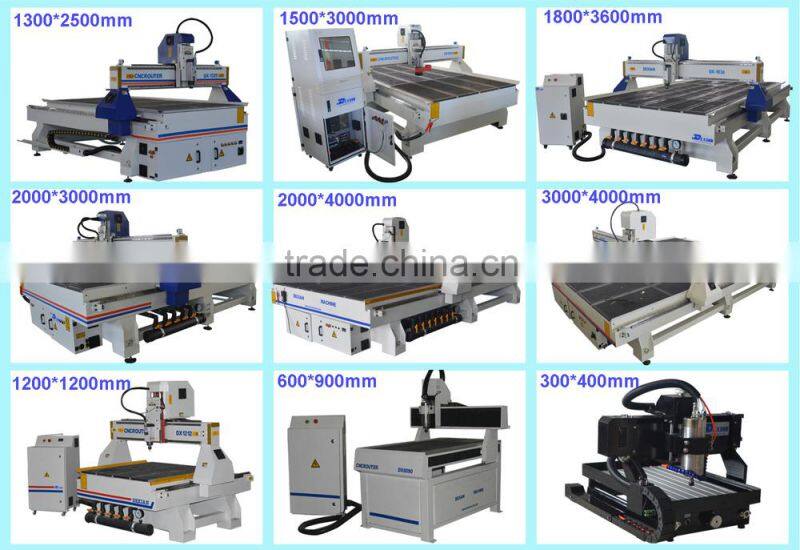

Our Dexian Machinery also professionally manufactures CNC routers:
We welcome you to visit our factory:
We are always here to provide the Inexpensive but high-quality products.
Our slogans are:
Dexian (serves) arrived with your need
Dexian (produce) started with your need
Dexian (R&D)changed with your need
Welcome to contact me:
WhatsApp/Mobile: 0086-15064026772
Web:
