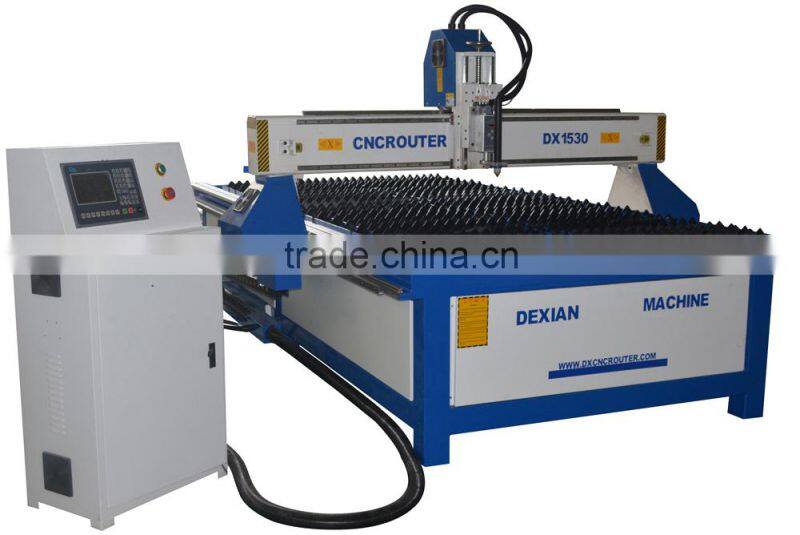

Stainless steel cutting machine cnc plasma cutter with START controller
Features:
1, Start control control,with USB interface,convenient and powerful.
2, Taiwan HIWIN linear Square Rail for all axes,high precision
3, X, Y axis: Rack and gear transmission,powerful strength; Z axis: Taiwan TBI ball screw transmission
4, untouched arc striking
5, Y axis with double motor
Technical data:
Description | parameter |
working area | 1500mm x 3000mm |
Transmission | X, Y axis: High precision Rack and gear; Z axis: imported Taiwan TBI Ball Screw |
X, Y, Z Rail | Taiwan HIWIN Linear square guide |
Frame | Square tube Integral structure |
Cutting Thickness | 3mm -10mm stainless steel |
Cutting Speed | 0-8000mm/min |
Moving Speed | 0-50000mm/min |
Plasma Generator | 60A-100A |
Motor | Stepper motor |
Control system | Start control system |
Working voltage | 3 phase 380V 50HZ/60HZ ( 220v for option) |
Software | ARTCAM, Type 3 |
File transfer | USB interface |
Arc | Untouched arc striking |
The cutting thickness and speed of different materials:
Material | Thickness(mm) | Current(A) | Speed (mm/min) |
Carbon steel plate | 3.6 | 40 | 3835 |
| 6 | 40 | 1880 |
| 10 | 80 | 2388 |
| 12 | 80 | 1524 |
| 19 | 80 | 787 |
| 25 | 80 | 406 |
Aluminum | 0.8 | 25 | 15494 |
| 1.5 | 25 | 6807 |
| 3.2 | 40 | 1930 |
| 10 | 80 | 3073 |
| 12 | 80 | 1905 |
| 19 | 80 | 940 |
Stainless steel | 0.8 | 25 | 12598 |
| 3.6 | 40 | 2718 |
| 6 | 40 | 1194 |
| 10 | 80 | 2108 |
| 12 | 80 | 1270 |
| 19 | 80 | 610 |
| 25 | 80 | 356 |
Plasma cutter working materials:
Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium pates and
the other nonferrous metals
Machine Parts:
Product Samples:
Customers visit our factory:
We are always here to provide the Inexpensive but high-quality products.
Our slogans are:
Dexian (serves) arrived with your need
Dexian (produce) started with your need
Dexian (R&D)changed with your need
Welcome to contact me:
Skype: elephantcnc
WhatsApp/Mobile: 0086-15064026772
