plasma cutting machine price
Advantage Features:
1. The machine is all welded as seamless steel structure. Steady structure and long life time.
2.High configuration, high cutting speed and precision.
3. The inclining design of leakage material is also very reasonable, which makes the machine be convenient and safe to deal with the waste materials.
4.The machine works quietly, steadily. And it can move precisely.
5.It adopts the DSP or STAR control system developed by China and U.S.A. 6.The German automatic drawing software in the machine can save material automatically.
7.It also can adjust the best cutting distance in order to reach the precision of the materials cutting.
Different cnc plasma cutting thickness and speed for
different materials:
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Material | Thickness(mm) | Current(A) | Speed (mm/min) |
Carbon steel plate | 3.6 | 40 | 3835 |
| 6 | 40 | 1880 |
| 10 | 80 | 2388 |
| 12 | 80 | 1524 |
| 19 | 80 | 787 |
| 25 | 80 | 406 |
Aluminum | 0.8 | 25 | 15494 |
| 1.5 | 25 | 6807 |
| 3.2 | 40 | 1930 |
| 10 | 80 | 3073 |
| 12 | 80 | 1905 |
| 19 | 80 | 940 |
Stainless steel | 0.8 | 25 | 12598 |
| 3.6 | 40 | 2718 |
| 6 | 40 | 1194 |
| 10 | 80 | 2108 |
| 12 | 80 | 1270 |
| 19 | 80 | 610 |
| 25 | 80 | 356 |
cnc Plasma cutter parameter:
Description | parameter |
working area | 1300mm x 2500mm |
Transmission | X, Y axis: High precision Rack Gears; Z axis: imported Ball Screw |
X, Y, Z Rail | Round orbit( HIWIN Linear orbit for option) |
Frame | Square tube Integral structure |
Cutting Thickness | 3mm -10mm stainless steel |
Cutting Speed | 0-8000mm/min |
Moving Speed | 0-50000mm/min |
Plasma Generator | 60A-100A |
Motor | Stepper motor |
Control system | DSP Or Start |
Working voltage | 3 phase 380V 50HZ/60HZ ( 220v for option) |
Software | ARTCAM, Type 3 |
File transfer | USB interface |
Arc | Untouched arc striking |

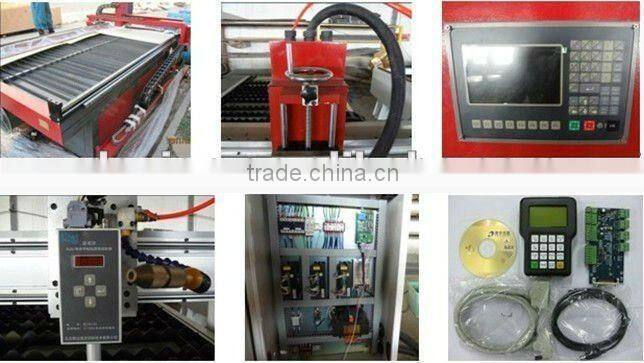

cnc Plasma cutter spare parts:

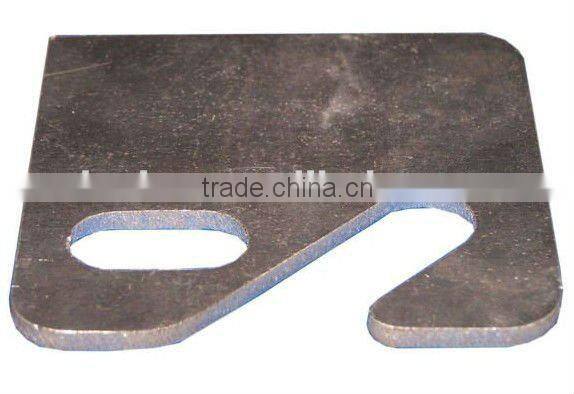

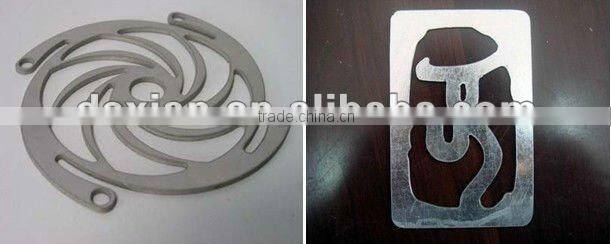

cnc Plasma cutter samples:
