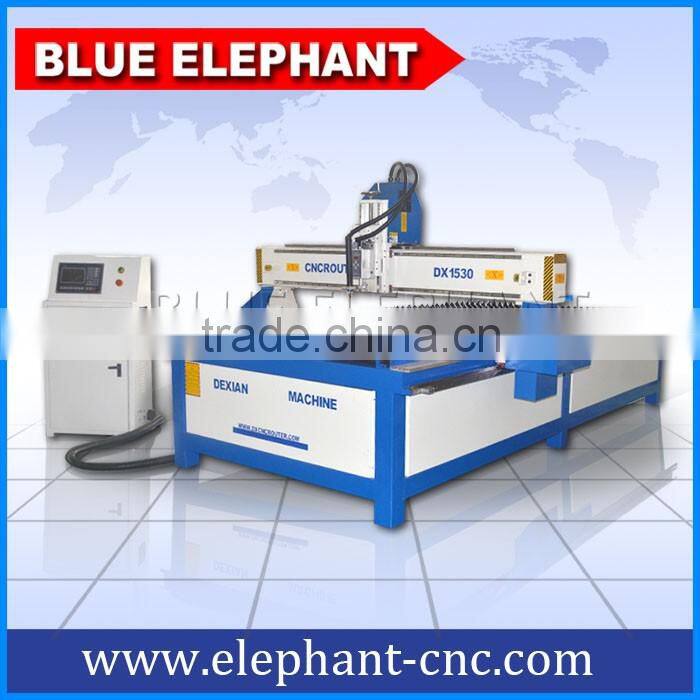

World top brand DX 1530 hot sale High Quality cnc plasma cutters for sale
After-sale service for cnc router:
1, Within 7 days since your local customs clearance: if the cnc machine’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the laser machine
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included
4 axis cnc router machine parameters:
1, High Z travel: 700mm
2, Italy HSD brand air cooling spindle
3, Japan YASKAWA servo
4, Germany Eisele Reducer
5, Rotary device with servo: 400mm diameter,1500mm length
6,Taiwan SYNTEC control system
7, Helical rack gear
8, Taiwan TBI ball screw with high precision
9, 4th axis can move ±100°
10,4th axis + Rotary device
4 Axes CNC Router Application industry:
DX 1530 4 axis cnc router machine is suitable for advertising industry, craft industry, mold industry, construction, printing and packaging industry, wood industry, decoration industry.
various large metalloid mould, especially suitable for automotive foam mold,
wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.Instrument industry, 3D surface
engraving and shape cutting of large-scale instruments.
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
All models can be customized, 4 axis + ATC is available
4 axis cnc router machine technical datas
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1500x3000x700mm*±100° |
2 | Table Size | 1500×3500mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Helical rack gear , HIWIN Linear guide |
8 | Z Structure | Imported Ball Screw , HIWIN Linear guide |
9 | Max. Power Consumption | (Without Spindle) 4.2Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | HSD spindle 4.5kw( Italy ATC spindle for option) |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Japan 850 W YASKAWA servo motor |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | SYNTEC Control System (model: EZ4M) |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | UG , Power mill |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 4.1*2.3*2.6m |
26 | N.W. | 2500KG |
27 | G.W. | 2800KG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
SIEMENS/DELTA/ Panasonic Servo Motors | ||
Colombo Spindle | ||
X:2.5m, Y:4m, Z:1.2m |

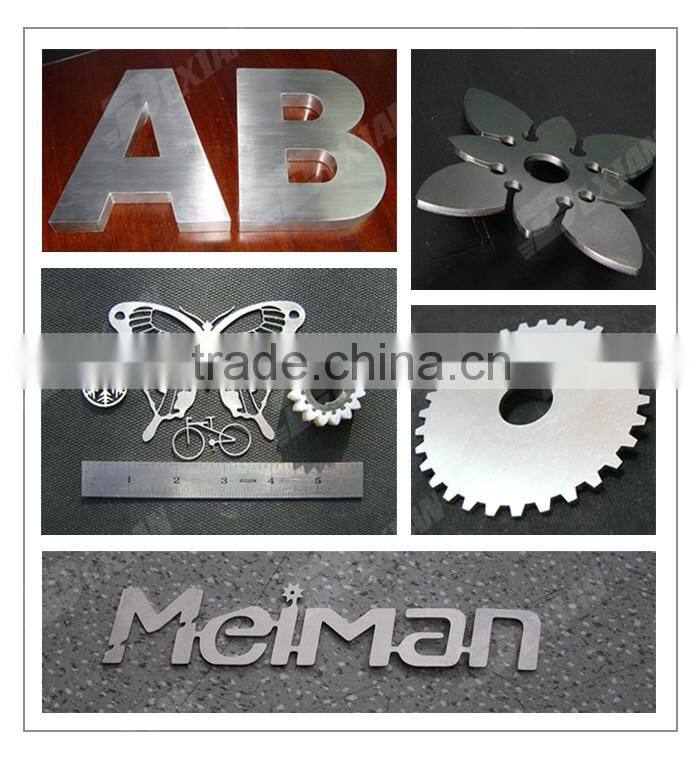

Samples made by cnc router machine:
