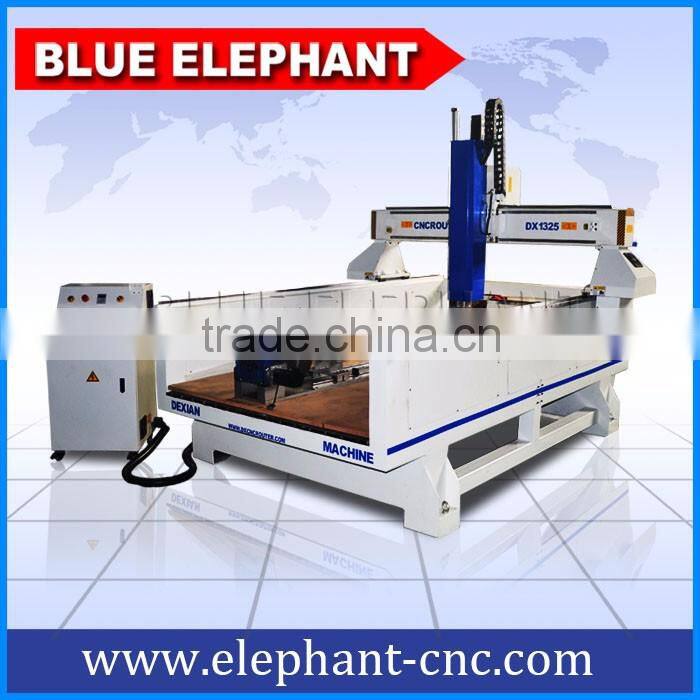

4 axis robot cutting milling drilling cnc wood engraving machine for sale
Hot Sale!!! High quality 4 axis cnc router models: DX-3030-4A, DX-3040-4A, DX-1836-4A , all for promotion!!!
Link for 4 axis + ATC working on Bakelite: /watch?v=SZn1wQezA90
cnc router wood Features:
1, Big size: all size can be customized. X can be to 3000mm, Y axis to 5000mm, Z axis to 1500mm
2, Japan YASKAWA servo
3, Taiwan SYENTEC control system or Germany SIEMENS control system
4, 4 axis can be to ±90°
5, HSD air cooling spindle, ATC spindle for your option
6, Taiwan HIWIN Linear guide
Technical Parameters
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x700mm*180° |
2 | Table Size | 1450×2940mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, HIWIN Rail Linear Bearings |
8 | Z Structure | HIWIN Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 4.2Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | HSD spindle 4.5kw( 3.0/6KW optional) |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Japan YASKAWA servo |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | SYNTEC Control System (model: EZ4M) |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |

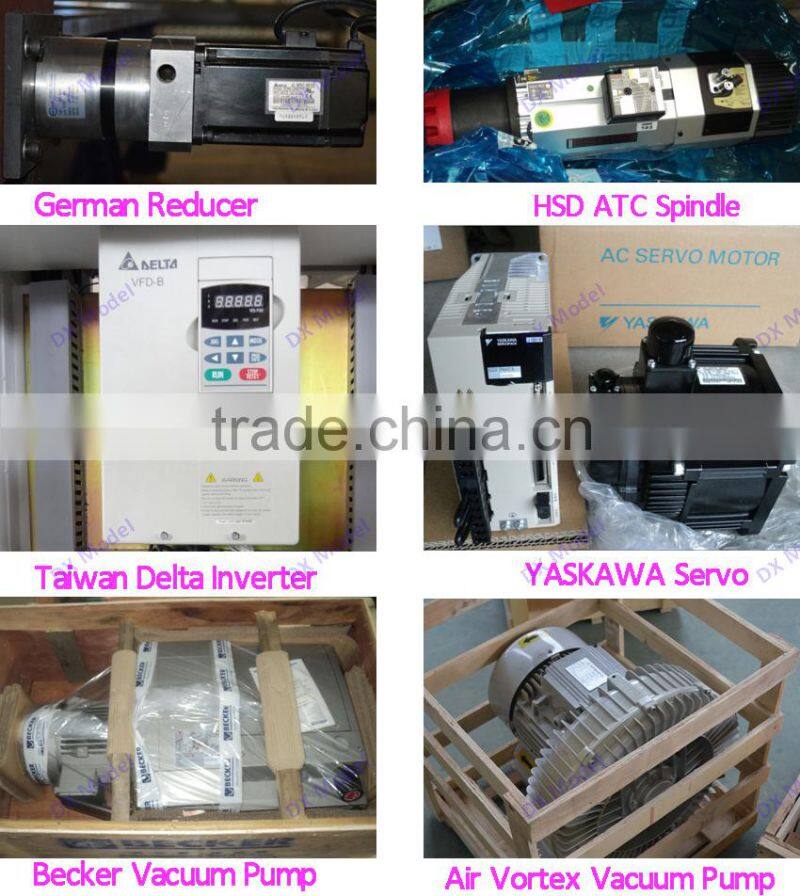

Optional parts:
1, HSD air cooling spindle (3kw, 4.5kw, 6kw, 7kw, 13.5kw) or HSD ATC spindle (9kw, 12kw)
2, Germany SIEMENS servo or Taiwan DELTA servo
3, vacuum working table with vacuum pump
4, dust collection system
5, Rotary device for working on cylinder
6, Germany SIEMENS control system
7, big size and high Z travel
Guarantee & After Sales Service for 4 axis cnc router
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
Application and samples:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving

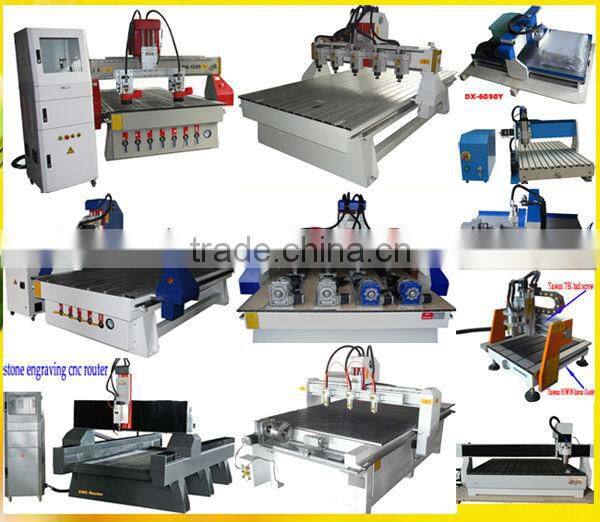

More cnc router for your option:
Our company has obtained CE, FDA and ISO certificates.
We promise to provide high quality product with competitive price!! Welcome to visit our factory!
If you have any need or requirement, please feel free
Skype: elephantcnc
WhatsApp/Mobile: 0086-15064026772
