large cnc wood carving router machine/cheap wood cnc router for Relief sculpture and 3D engraving

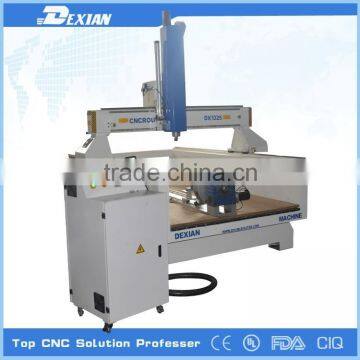

Product Picture
Product Features
1. 4.5kw water cooling spindle----Changsheng brand,China most famous brand,stable and durable.
2. DSP control system----with hand held controller and USB interface,doesn't need to connect with computer,easy and convenient.
3. HIWIN linear rail 20# from Taiwan for 3 axes----smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.
4. 400mm diameter,1200mm length rotary device----help work on cylindricial objects.
5. Helical/oblique rack and gear transmission----ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.
6. Leadshine servo motor----5 sets,Z axis is with brake. Servo motor is more stable and powerful.
Technical Parameter
X,Y,Z Working Area |
1300x2500x800mm (any size) |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
X,Y,Z Repositioning Accuracy |
±0.03mm |
Table Surface |
T-slot Table(vacuum for option) |
Frame |
Welded Structure |
X, Y Structure |
helical rack, Taiwan HIWIN Rail Linear Bearings |
Z Structure |
HIWIN Rail Linear Bearings and TBI Ball Screw |
Max. Rapid Travel Rate |
33000mm/min |
Max. Working Speed |
25000mm/min |
Spindle Power |
4.5KW water cooling spindle ( Italy HSD spindle for option) |
Spindle Speed |
0-24000RPM |
Drive Motors |
Leadshine servo motor |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
Command Language |
G Code |
Operating System |
DSP control System (Options: Ncstudio/Mach3 ) |
Computer Interface |
USB |
Flash Memory |
512M |
Collet |
ER25 |
X,Y Resolution |
<0.01mm |
Software Compatibility |
Type3/UcancameV9 Software, (Option: Artcam Software) |
Running Environment Temperature |
0 - 45 Centigrade |
Relative Humidity |
30% - 75% |
Machine Parts
1. water cooling spindle and Fuling inverter
2.HIWIN Rail Linear Bearings and TBI Ball Screw
3. DSP controller
4. Machine body
5.leadshine servo
6. rotary device
Applied Industries
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object
More products
Production process
After-Sales Service
1, Within 7 days since your local customs clearance: if the cnc machine’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have anyproblems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the laser machine
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Our Company
Dexian Machinery Co.Ltd is located in Jinan city, Shandong province. We have always been devoting to the research and manufacture of CNC engraving machines. We have R & D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.
Welcome to contact me !
Jinan Dexian Machinery Co.Ltd.
Name: Demi
Mobile: 0086-18615679775
Whatsapp:18615679775
Wechat:18615979775
Trademanager: cn1000367525
Skype: demi-dx
Web:
Our boss: Jack Zhang
Mobile: 0086-13361004536
We are searching for agent from all over the world! Welcome to contact us for more information!
