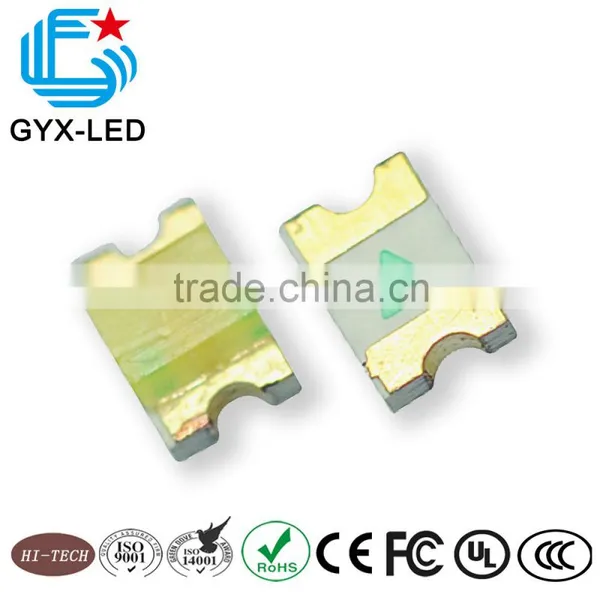

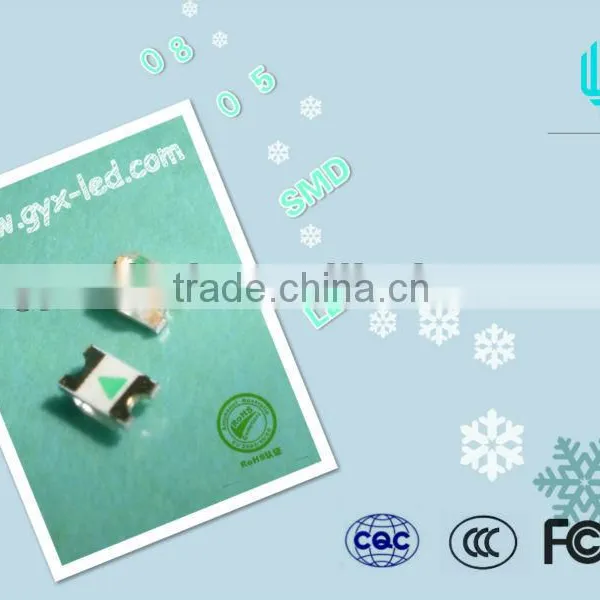

RoHS and REACH Compliant 500mcd white color 0805 or 2012 SMD LED
- 500000000 Piece / Pieces per Month
- Shenzhen/Hongkong
- T/T L/C D/P D/A Credit Card
- High Quality Full Color Diode IC APA102C 5050 RGB SMD LED CHIP
- Built-in IC chip SK6812 MINI Full Color SMD 3535 RGB led
- Black Version WS2811 SK6812 Full Color Diode 5050 RGB SMD IC WS2812B LED Chip
- Factory direct Surface Mount Package Type sk6812-WWA 5050 SMD LED with IC Inside
- SK9822 compatible APA102, double signals, parallel lamp beads, Inner drive ic 5050 SMD LED
- WS2811 SK6812 Full Color Diode 5050 RGB SMD IC WS2812B LED Chip
Product Details
Model Number: | GYX-SD-C0805QWC | Chip Material: | Other, GaN | Emitting Color: | Natural White |
Luminous Intensity: | 500 mcd | Power: | Other | Power Dissipation: | 95 |
Operating Temperature(℃): | -40, +85 | Storage Temperature(℃): | -40, +85 | Place of Origin: | Guangdong, China |
Brand Name: | GYX | Certification: | CE |
Product Description
General Information
Part No. | Emitting Color | Lens Color | Iv(mcd)@20mA | Viewing Angle(2θ1/2) |
GYX-SD-T0603QWC | White | Diffused | Min.:350 Typ.:450 Max.: / | 120° |
Electrical / Optical Characteristics at TA=25℃
Parameter | Symbol
| Typ
| Units
| TestConditions
|
Forward Voltage | Vf | 3.2 | V | IF=20mA |
Peak Wavelength | λp | / | nm | IF=20mA |
Dominate Wavelength | λD | / | nm | IF=20mA |
Capacitance | C | 65 | PF | VF=0V;f=1MHz |
Reverse Current | IR | 10 | uA | VR=5V |
Absolute Maximum Ratings at TA=25℃
Parameter | Symbo | Maximum Rating | Units |
Power dissipation | Pd | 95 | mW |
Forward Current | IF | 30 | mA |
Peak Forward Current (1) | IF(Peak) | 150 | mA |
Reverse Voltage | VR | 5 | V |
Operating Temperature | Topr | -40oC To +85oC | |
Storage Temperature | Tstg | -40oC To +85oC | |
Lead Solder Temperature(2) | Tsol | 260oC for 3 seconds |
Note:
- 1. 1/10 Duty Cycle, 0.1ms Pulse Width.
- 2. 2mm below package base.
GYX Optoelectronics Co.,Ltd. was founded in 2000. It is an integrated high-tech company with dedication to R&D, production, quality, marketing and global customer service. And it is wholly owned subsidiary company of Han’s Laser Technology Industry Group Co., Ltd., which is a public company in China (china stock code:002008) with over 5 billion US dollar market value and around 6000 employees.
Known for its LEDs’ performance, efficiency and reliability, GYX offers an extensive portfolio of products. The highly integrated customization capability of the GYX also enables the products to fit well to specific customer design needs, making the products unique to the customers’ applications.
