Home > Products > 2. ATC cnc router > 2016 new style!! cheap price atc cnc router wood engraving machine for wood plywood acrylic
2016 new style!! cheap price atc cnc router wood engraving machine for wood plywood acrylic
- 200 Set / Sets per Month
- Qingdao Tianjin etc.
- T/T D/P D/A Credit Card PayPal
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | DEXIAN | Model Number: | DX-2130 | Voltage: | AC380V,3PH,50/60Hz |
Power(W): | 9.0KW | Dimension(L*W*H): | 2100*3000mm | Weight: | 1800KG |
Certification: | CE ISO | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2016 new style!! cheap price atc cnc router wood engraving machine for wood plywood acrylic
Trade Assurance service from
100% product quantity protection
100% on-time shipment protection
100% payment protection for your covered amount

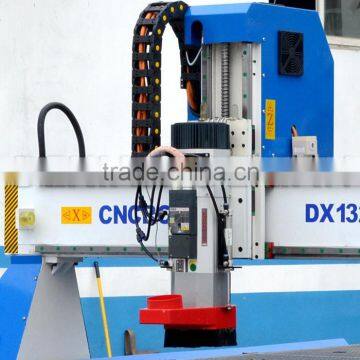

Main parts of DX-2130 engraving machine

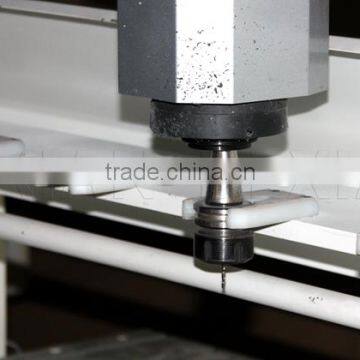

1. Air cooling spindle----9 KW Italy HSD atc air cooling spindle.Well-known brands ,long working life,low noise,strong cutting ability to ensure the long time working.

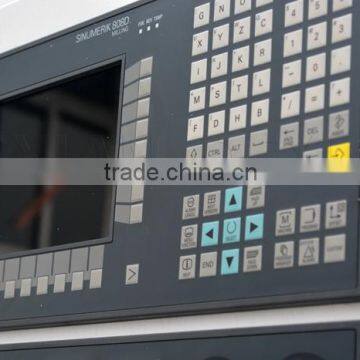

2.Germany Simens control system----Easy operation. Support offline operation,more table.(Optional :Syntec control system)
3. Germany Simens servo motor----High-performance drive motor to ensure that the machines high speed and accuracy.(Optional: Japan Yaskawa servo motor)
4. HIWIN linear rail 25# from Taiwan ----Smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.

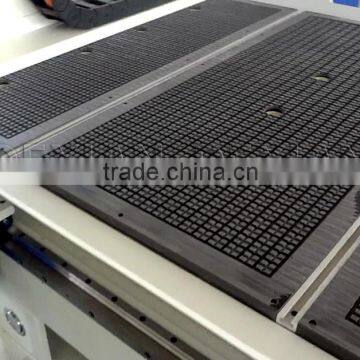

5. Vacuum & T-slot combined worktable----Can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF boardon it for protection.
6. Helical rack transmission----Ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.
7. Carrousel Tool Magazine(ATC 1325 cnc router)---- With 8 tool holders and 8 tool forks,can save working time and will work so convenient. Can also choice the 6 or 10 tool holders and forks.
Paramater of 2130 ATC wood engraving machine
Working Size | 2100x3000mm(Can be customized) |
Traveling Positioning Accuracy | ±0.03/300mm |
Repositioning Accuracy | ±0.03mm |
Table | T-slot & vacuum Table |
Frame | Welded Structure |
X, Y axis | helical rack, Hiwin 25# Rail Linear Bearing |
Z axis | Hiwin Rail 25# Linear Bearing & TBI Ball Screw |
Max. Power Consumption | (Without Spindle) 3.2Kw |
Max. Rapid Travel Rate | 40000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 9KW Italy HSD ATC air cooling spindle |
Spindle Speed | 24000RPM |
Drive Motors | Japan YASKAWA servo motor & driver |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | Taiwan Syntec (Options: German Siemens ) |
Collet | ISO30 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9/Artcam Software |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Optional Parts for reference
Rotary device:Can process cylinder material.
Reducer: Well known Japan Shimpo reducer.
Automatcic Mist Sprayer:During the processing can cool hard the materials.
Dust Collecter: Can collect the pocessing dust of the materials.
Vacuum pump:Working with the vacuum working table
Application about cnc wood engaving machine
·
WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
·
Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
·
Die industry: A sculpture of copper, aluminum, iron and other metal mold s, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
·
Relief sculpture and 3D engraving
·
Cylindrical object
About ATC cnc router
1.The tool changer is in the end of the machine.
2.With 8 tool holders and forks,it can save a lot of working time.(Optional 6,10 or 12 tool holders and forks)
3.The price is very economic. | |
1.The tool changer is at the side of the machine.
2.Working speed is faster than Linear Tool Magazine ATC.
3.With 8 tool holders and forks,it can save a lot of working time.(Optional 6,10 or 12 tool holders and forks) |
PS:All working size can be customized.
Working with rotary can process the cylinder materials.
Packing & Shipping
Packaging : 1.Outside package:Standard marine export plywood cases
2.Inner package:Stretch film and plastic film for humidity
We can package accorking to customer's request.
Shipping: Maritime transport,air transport,land transport and the logistics transport
FAQ
1.Are you a factory or trading company?
We are the manufacturer and we have 10 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory
2. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3. How should I pay for my order ? what is the procession of this purchase ?
You can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. We will send the machine to you.
4. How about your service after sales ? can your engineer speak fluent english ?
We offer the service from you got the machine, including how to install the machine,
how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype .our engineer has many years of experience for cnc machine service . He can speak very good english ,
so he can slove the problem in short time.
Our service
Guarantee:
18 months for the whole machine.
Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.
Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
