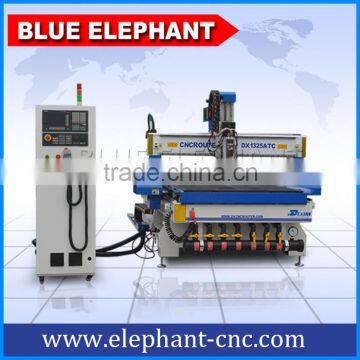

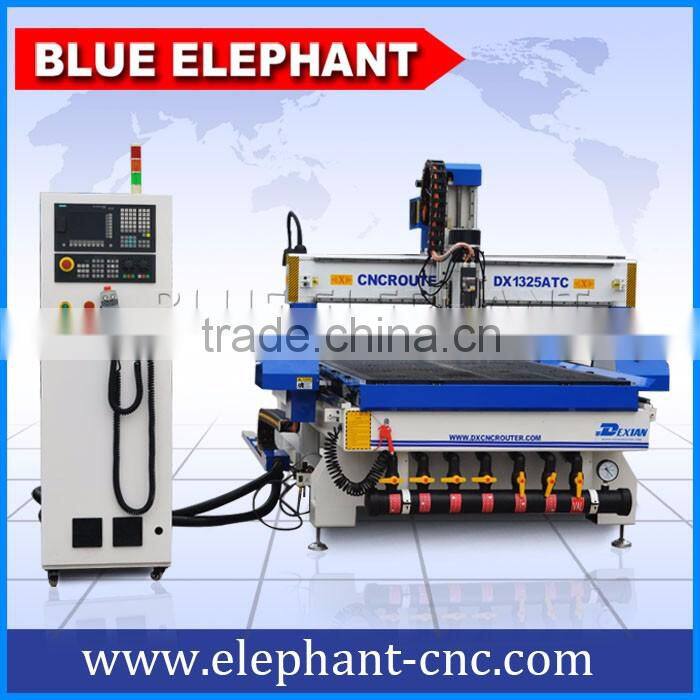

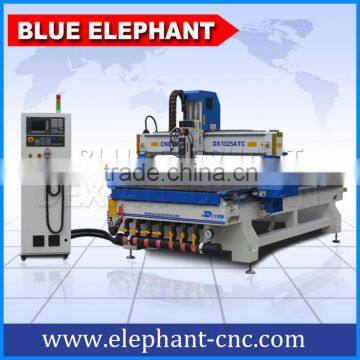

Have Videos, Germany Siemens Control ATC Wood Cnc Router , Cnc Engraving Machine With Auto Tool Changer

Model

DX-1325ATC/DX-1530ATC/DX-1625ATC/DX-1836ATC/DX-2030ATC

X,Y,Z Working Area

1300*2500mm/1500*3000mm/1600*2500mm/1800*3600mm/2000*3000mm

Z axis:200mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

Vacuum and  T-slot Combined (Option: T-slot Table)

Frame

Thicken steel Square Tube Heavy structure , 8mm thicken steel gantry with T type

X, Y Structure

Gear and rack transmission, Taiwan HIWIN Linear Rail

Z Structure

Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail

Max. Power Consumption

(Without Spindle)  4.5Kw

Max. Rapid Travel Rate

60000mm/min

Max. Working Speed

25000mm/min

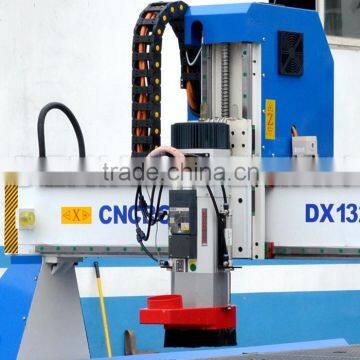

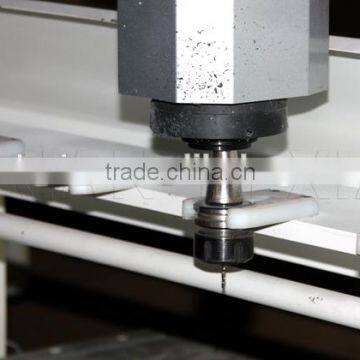

Spindle Power

9KW HSD ATC spindle from Italy

Spindle Speed

0-24000RPM

Drive Motors

Germany SIEMENS Servo Motor Driver(optional:Japan YASKAWA Servo Motor Driver)

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

Command Language

G Code

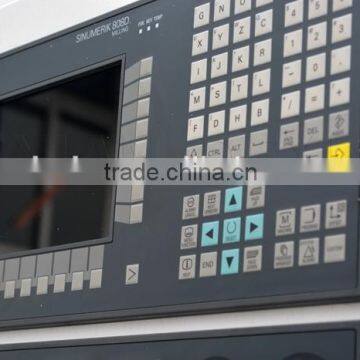

Operating System

Germany SIEMENS control system (Optional:SYNTEC control system from Taiwan)

Computer Interface

USB interface

Collet

ISO30

Inverter

Taiwan DELTA 11kw

Software Compatibility

Type 3 /Artcam /Ucancam

Industry

Products

woodworking

Doors, chairs, windows, tables, cabinets, panels

Advertising

signature(road, door, office) , logo, badges, display board, meeting sign board, billboard

Die

sculpture of non-metallic mold

 Decoration

acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper

Crafts

Language characters, stiletto, souvenirs

1.Guarantee & After-Sales Service

18 months warranty under normal use; Offer technical supply maintenance for all life time

24 hours technical support by phone, e-mail, SKYPE, MSN or Remote.

Free trainings in our factory;  Engineer available to service machinery overseas

English operation manual, popular and easy to understand.

2.OEM Service Available

Usually, we will manufacture the machine as our regular design.

X Y Z Working Area could be customized designing.

Special configuration could be customized designing.
