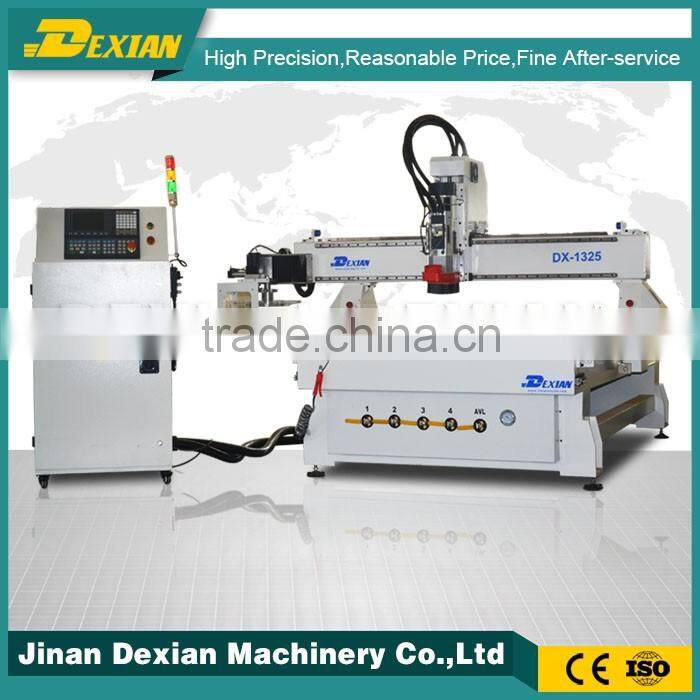

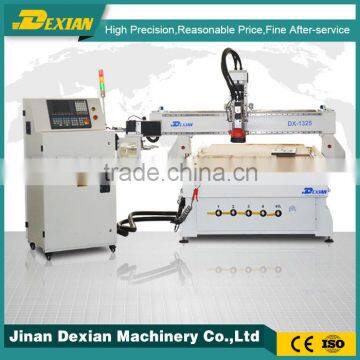

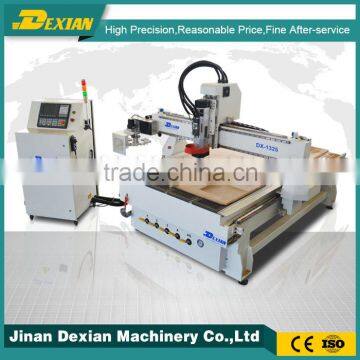

robotic tool changer systems for carousel ATC automatic 3d wood carving cnc router
Features of wood cnc router
1 Thicker square tube bed makes the operation more stable and accuracy.
2 Our machines adopt the vacuum & T-slot dual-use table, you can use the clips to fix the small-scale materials, which can save the vacuum pump electricity, and you can adopt the vacuum adsorption to fix large-scale the processing is convenient, simple and efficient.
3 High quality Taiwan imported Linear guide has much longer life 10 times of life-time than round guide; It is stable and hard to distort.
4 long life more stable gear transmission for X,Y axis, and high precision Taiwan TBI ball screw for Zaxis.
5 3KW top brand water cooling spindle has much powerful strength; So for processing your softmetal it will have higher efficiency.It will have a better effect .
Technical parameters of wood cnc router
Number |
Description |
Parameter |
1 |
X, Y,Z working area |
1300mmx2500mmx200mm |
2 |
Max feeding height |
220mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Positioning Accuracy |
±0.03mm |
5 |
Table Surface |
Vacuum and T-slot combined table |
6 |
Frame |
Welded structure |
7 |
X, Y Structure |
Rack and Pinion Drive Hiwin Rail Linear |
8 |
Z Structure |
TBI Ball Screw |
9 |
Max. Power Consumption (Without spindle) |
4.5Kw |
10 |
Max. Rapid Travel Rate |
60000mm/min |
11 |
Max.Working Speed |
25000mm/min |
12 |
Spindle Power Motor |
9.0kw ATC spindle |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
750w DELTA servo |
15 |
Working Voltage |
AC380V |
16 |
Command Language |
G Code, PLT... |
17 |
Operating System |
SYNTEC control system from Taiwan |
18 |
X, Y Resolution |
<0.02mm |
19 |
Software Compatibility |
Type3 software (Option: Art cam software) |
20 |
Packing Size |
4400X2200X1750mm |
21 |
Gross Weight |
2600KG |
More details of wood router cnc
Helpful parts for your option:
Application and samples
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
After-sale service:
1, 18 months warrantry for the whole machine.
2, Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
3, we offer you free training towards the machine in our factory.
4, free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support for the machine.
--------------------------------------------------------------------------------------
