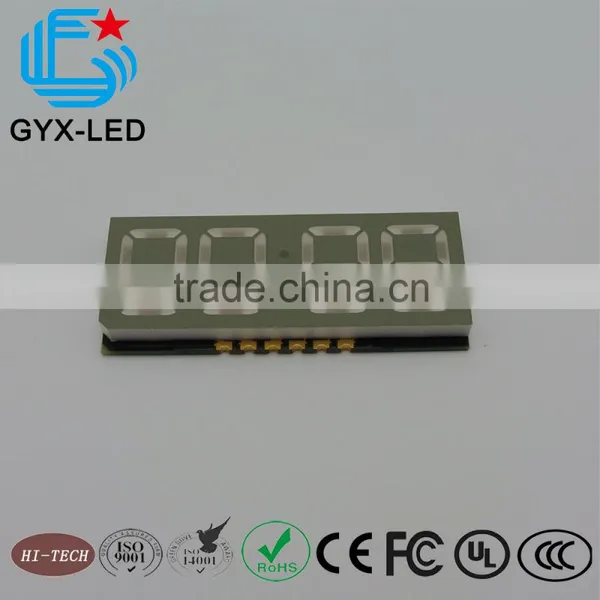

Help CenterGray Face White Segment Blue Color Common Anode Four-digit Gas Meter Application 0.51 Inch Smd 7 Segment Display
Related Products
-
Warm White Color 0.28 Inch Dual Digit Surface Mount LED DisplayUS$ 0.1 - 3MOQ: 2000 Pieces -
Natural White Color 0.28 Inch Dual Digit SMT DisplayUS$ 0.1 - 3MOQ: 2000 Pieces
-
Easy Construction Gray Face White Segment Yellow Green Emitting Color Refrigerating Appliance Application Surface Mount 7-segmenUS$ 0.1 - 3MOQ: 2000 Pieces
-
Black Face White Segment Epoxy Type Red Emitting Color Wine Refrigerator Application 0.28 Inch Triple Digit SMD DisplayUS$ 0.1 - 3MOQ: 2000 Pieces
-
Yellow Emitting Color Three Digits Surface Mount Seven Segment DisplayUS$ 0.1 - 3MOQ: 2000 Pieces
GYX offers a full range of through hole and surface mount LED digital displays. Customers are free to choose chip on board (COB), chip bonding and wire bonding, epoxy type, SMD LED and air type,etc. The displays come either in industry standard size packages and pinouts or special designed per customer’s requirement.
Seven segment LED displays are used in numeric indicators on the display panels of instruments, meters, home appliances, and communications and computing equipment. Single, dual, triple and quad digit types in a wide range of colors are available.
Alphanumeric LED displays can show both numerical digits and the letters of the alphabet. They feature high brightness, high contrast, and wide viewing angles. A wide range of colors is available.
IC Driver Built-in LED displays
IC driver built-in LED displays provide the best solution for indication and display panels in home appliances, computer products, telecommunications, industrial and medical equipment, and game consoles. They feature high brightness, high contrast, and wide viewing angles.
Graphic LED Displays provide high flexibility in mechanical design and high contrast performance. They are widely used in indication and display panels for home audio-video equipment and appliances such as DVD players, VCRs, microwave ovens, and conventional ovens.
Features and Benefits for Standard LED Digital Displays
Semiconductor (LED) light source
- Cost-effective solutions
- Flexibility for designers
- Industry standard size and
- pinout Light weight
Lower power consumption
- Electrical power savings
- Low heat generation
- Low current devices available
Mechanically rugged
- No wire filaments
- No moving part
- No sensitive to mechanical shock and vibration
Essentially monochromatic light
- No color filter required
- Easy for the eye to discern against distracting backgrounds in sunlight and adverse weather conditions
- High light output
Industry standard size and pin out
Features and Benefits for Custom LED Digital Displays
Robust design for high reliability, longer life and hot and cold temperature operating capability
- Ideally suited for industrial applications
Alphanumeric characters and custom icons for messaging
- Useful for conveying operating modes, status, warning and error codes
Ability to flash or blink
- Catch user’s attention
Available to built in LED driver
- Simplified design interfacing reduces design cycle time
Emissive display with brightness control
- Ability to modify brightness for subdued light environment and total darkness
Aesthetically pleasing
- Distinctive display allows product differentiation
GYX offers a full range of surface mount 7-segment displays that come in industry standard size packages and pinouts and are ideal for most applications. Single, dual, triple, quadruple digit displays are available in assorted character heights and colors.
General Information
Single digit
| Part Number | Chip | Face Color |
Forward voltage VF(v) | Forward current Iv(mcd) | ||||||
| Material | Emitted Color | λP (nm) |
Min. | Max. | IF(mA) | Min. | Typ. | Max. | ||
| GYXS-S3911ASR | AlGaInP | Red | 635 | Gray | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S3911AG | AlGaInP | Green | 571 | Gray | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S3911AO | AlGaInP | Orange | 605 | Gray | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S3911AY | AlGaInP | Yellow | 590 | Gray | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S3911AW | GaN | White | X:0.30 | Gray | 2.8 | 3.8 | 20 | 90 | ||
| Y:0.25 | ||||||||||
Dual digit
| Part Number | Chip | Face Color |
Forward voltage VF(v) | Forward current Iv(mcd) | ||||||
| Material | Emitted Color | λP (nm) |
Min. | Max. | IF(mA) | Min. | Typ. | Max. | ||
| GYXS-S2821ASR | AlGaInP | Red | 635 | Black | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S2821AG | AlGaInP | Yellow Green | 571 | Black | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S2821AO | AlGaInP | Orange | 605 | Black | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S2821AY | AlGaInP | Yellow | 590 | Black | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S2821AW | GaN | White | X:0.30 | Black | 2.8 | 3.8 | 20 | 90 | ||
| Y:0.25 | ||||||||||
Triple digit
| Part Number | Chip | Face Color |
Forward voltage VF(v) | Forward current Iv(mcd) | ||||||
| Material | Emitted Color | λP (nm) |
Min. | Max. | IF(mA) | Min. | Typ. | Max. | ||
| GYXS-S2831ASR | AlGaInP | Red | 635 | Black | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S2831AG | AlGaInP | Yellow Green | 571 | Black | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S2831AO | AlGaInP | Orange | 605 | Black | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S2831AY | AlGaInP | Yellow | 590 | Black | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S2831AW | GaN | White | X:0.30 | Black | 2.8 | 3.8 | 20 | 90 | ||
| Y:0.25 | ||||||||||
Quad digit
| Part Number | Chip | Face Color |
Forward voltage VF(v) | Forward current Iv(mcd) | ||||||
| Material | Emitted Color | λP (nm) |
Min. | Max. | IF(mA) | Min. | Typ. | Max. | ||
| GYXS-S5141ASR | AlGaInP | Red | 635 | Gray | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S5141AG | AlGaInP | Yellow Green | 571 | Gray | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S5141AO | AlGaInP | Orange | 605 | Gray | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S5141AY | AlGaInP | Yellow | 590 | Gray | 1.6 | 2.6 | 20 | 50 | ||
| GYXS-S5141AW | GaN | White | X:0.30 | Gray | 2.8 | 3.8 | 20 | 90 | ||
| Y:0.25 | ||||||||||
Electrical / Optical Characteristics at TA=25ºC
Parameter |
Symbol
|
Typ
|
Units
|
TestConditions
|
Forward Voltage |
VF |
/ |
V |
IF=20mA |
Peak Wavelength |
λp |
/ |
nm |
IF=20mA |
Dominate Wavelength |
λD |
/ |
nm |
IF=20mA |
Spectral Line Half-width |
Δλ |
/ |
nm |
IF=20mA |
Reverse Current |
IR |
/ |
uA |
VR=5V |
Absolute Maximum Ratings at TA=25ºC
Parameter |
Symbo |
Maximum Rating |
Units |
Power dissipation |
Pd |
70/90 |
mW |
Forward Current |
IF |
30/30 |
mA |
Peak Forward Current (1) |
IF(Peak) |
130 |
mA |
Reverse Voltage |
VR |
5 |
V |
Operating Temperature |
Topr |
-40ºC To +80ºC |
|
Storage Temperature |
Tstg |
-40ºC To +80ºC |
|
Lead Solder Temperature(2) |
Tsol |
260ºC for 3 seconds |
|
Note:
- 1. 1/10 Duty Cycle, 0.1ms Pulse Width.
- 2. 2mm below package base.
Industrial Equipment
- Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
Networking
- Telecommunication equipment, answering machines, telephones, base stations, PBX modems, network cards
Outdoor Signs
- Petrol pump meters
Medical Equipment
- Hospital monitoring systems
Transportation
- Displays, radar detectors, avionics displays
Computers and Peripherals
- CPU speed indicator, printer front panels, fax machines, copy machines, power supply equipment, cash registers
Consumer Electronics and White Goods
- Large Household Appliances As Refrigerator, Landry Appliance, Dishwasher, Cooking And Baking Appliance, Built-In Kitchen Unit, Etc.
- Small Household Appliances As Kitchen Appliance, Floor Cleaning Machine, Etc.
- HVAC And Heating Devices As Air Conditioner And Ventilation, Humidifier, Air Purifier, Home Heating Device, Etc.
- Audio, Video System As DVD Player, Settop Box, Hifi, Blu-Ray Player, Etc.
- Smart Home And Home Network As Control Unit For Heating/Air Conditioner, Etc.
- Wellness, Personal Care As Blood Glucose Monitor, Blood Pressure Monitor, Etc.
GYX Optoelectronics Co.,Ltd. was founded in 2000. It is an integrated high-tech company with dedication to R&D, production, quality, marketing and global customer service. And it is wholly owned subsidiary company of Han’s Laser Technology Industry Group Co., Ltd., which is a public company in China (china stock code:002008) with over 5 billion US dollar market value and around 6000 employees.
Known for its LEDs’ performance, efficiency and reliability, GYX offers an extensive portfolio of products that include SMD LED, Lamp LED, module solutions such as seven segment display, numeric display, alphanumeric display, pictorial display, graphic display, surface mounted display, dot-matrix display.The highly integrated customization capability of the GYX also enables the products to fit well to specific customer design needs, making the products unique to the customers’ applications.
These LEDs and display modules address a wide range of markets, including electronic signs and signals, home appliance( especially for air conditioner, washing machine, refrigerator, rice cooker, water boiler, humidifier, water purifier, air refresher), automotive, solid state lighting and LCD display backlighting.
LED solution customers can rely on products that deliver high reliability, long life expectancy, and are resistant to extreme weather conditions, mechanical vibration, and shock. With our innovative LED solution, customers can choose products with rich color capabilities, low cost, standard brightness and high ambient light that are designed to meet a variety of industrial and consumer applications.
GYX, all-round and competent LED solution partner.
